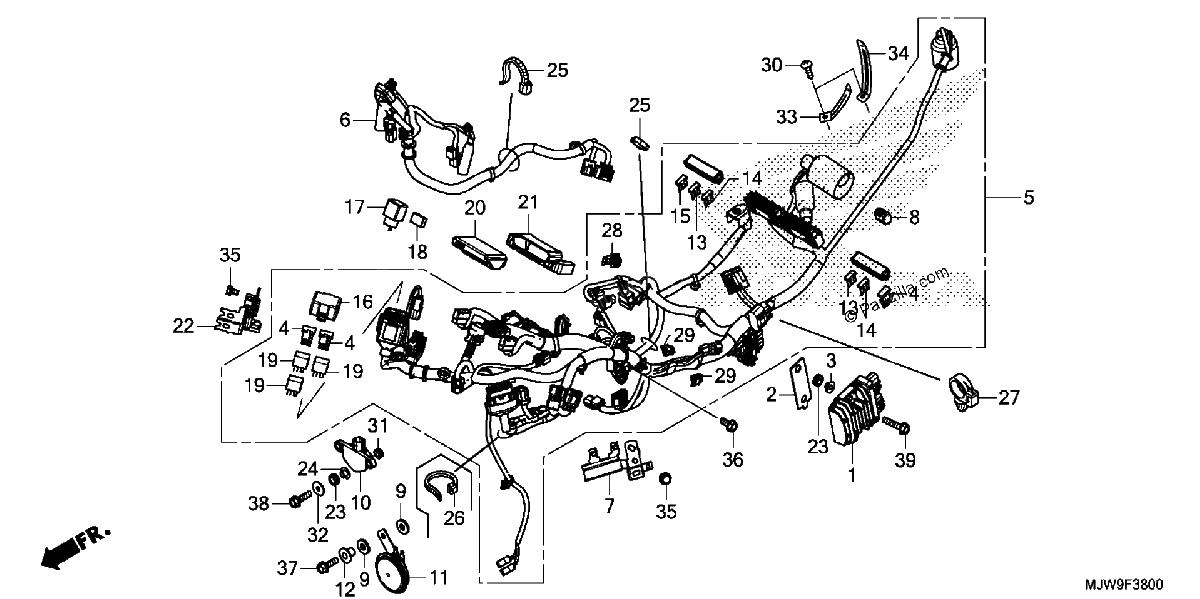

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RECTIFIER ASSY., REGULATOR
$201.64¢100 821
#2
PLATE, REGULATE RECTIFIER
$1.86¢932
#3
COLLAR, REGULATOR RECTIFIER
$1.81¢903
#4
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#5
WIRE HARNESS
$1267.75¢633 874
#6
SUB-HARNESS, FR.
$78.11¢39 054
#7
STAY, CONNECTOR
$9.26¢4 629
#8
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#9
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#10
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#11
HORN (HIGH)
$41.48¢20 740
#12
COLLAR, HORN SETTING
$0.91¢454
#13
FUSE, BLADE (7.5A)
$3.46¢1 731
#14
FUSE, BLADE (15A)
$4.42¢2 208
#15
FUSE, BLADE (30A)
$2.86¢1 432
#16
COVER, RELAY BOX
$17.33¢8 665
#17
RELAY, TURN SIGNAL (MITSUBA)
$59.04¢29 521
#18
SUSPENSION, TURN SIGNAL RELAY
$6.35¢3 174
#19
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
#20
PGM-FI UNIT
$361.04¢180 521
#21
CUSHION, PGM-FI UNIT
$4.94¢2 472
#22
STAY, RELAY BOX
$10.99¢5 497
#23
RUBBER, SIDE COVER
$2.30¢1 150
#24
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#25
BAND, WIRE (95MM)
$3.47¢1 737
#27
CLAMP, HARNESS
$6.64¢3 318
#28
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
#29
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#30
SCREW, TAPPING (4X12)
$1.07¢535
#31
NUT, FLANGE (6MM)
$0.74¢368
#32
WASHER, PLAIN (6MM)
$0.92¢460
#33
CLIP, WIRE
$3.53¢1 765
#34
CLIP (4X90)
$3.36¢1 679
#35
BOLT, FLANGE (6X10)
$1.49¢747
#36
BOLT, FLANGE (6X14)
$1.92¢960
#37
BOLT, FLANGE (6X20)
$1.92¢960
#38
BOLT, FLANGE (6X22)
$2.04¢1 018
#39
BOLT, FLANGE (6X28)
$2.59¢1 294
