FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

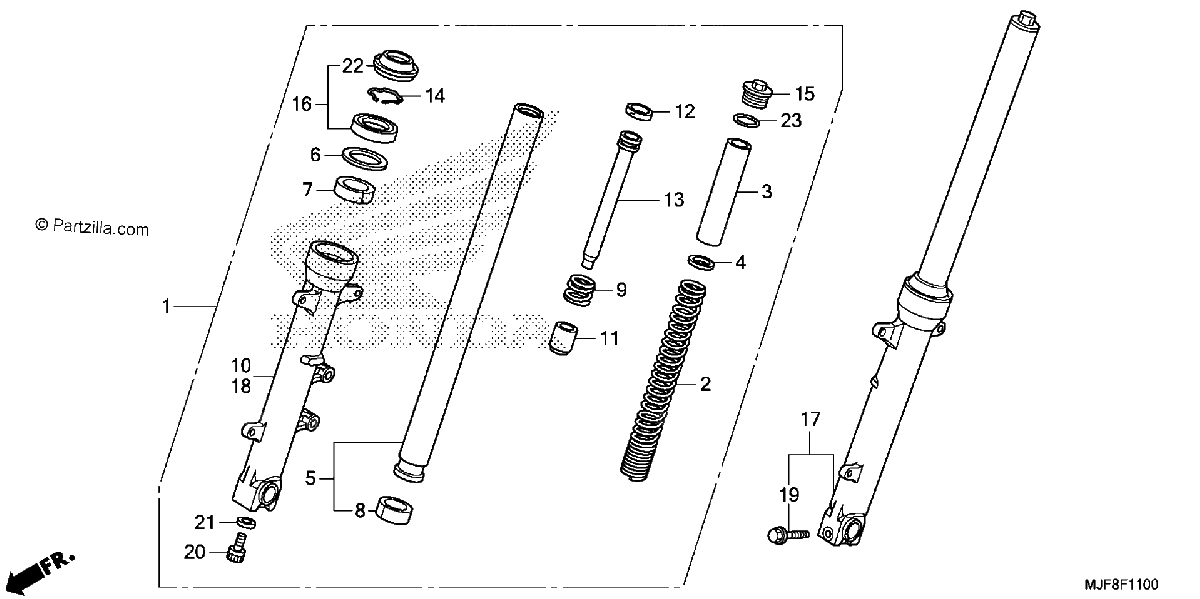

Diagrama de FRONT FORK

Repuestos

#001
51400-MJF-305
FORK ASSY., R. FR. (COO) (SHOWA)
$919.11¢459 557
1
#1
51400-MJF-305
FORK ASSY., R. FR. (COO) (SHOWA)
$919.11¢459 557
1
#001
51400-MJF-315
FORK ASSY., R. FR. (COO) (SHOWA)
$919.11¢459 557
1
#1
51400-MJF-315
FORK ASSY., R. FR. (COO) (SHOWA)
$919.11¢459 557
1
#001
51400-MKA-S81
FORK Assembly., Right Front. (SHOWA)
$919.11¢459 557
1
#2
51401-MGS-D11
SPRING, Front FORK (SHOWA)
$115.21¢57 604
1
#002
51401-MGS-D11
SPRING, Front FORK (SHOWA)
$115.21¢57 604
1
#3
51402-KV3-701
COLLAR, SPRING (SHOWA)
$25.63¢12 817
1
#003
51402-KV3-701
COLLAR, SPRING (SHOWA)
$25.63¢12 817
1
#004
51403-KF0-003
SEAT, SPRING (SHOWA)
$5.35¢2 674
1
#4
51403-KF0-003
SEAT, SPRING (SHOWA)
$5.35¢2 674
1
#5
51410-MGS-D31
PIPE, Front FORK (SHOWA)
$451.01¢225 503
1
#005
51410-MGS-D31
PIPE, Front FORK (SHOWA)
$451.01¢225 503
1
#006
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#6
51412-MB4-003
RING, BACK-UP (SHOWA)
$10.38¢5 192
1
#007
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#7
51414-MFJ-A51
BUSH, GUIDE
$8.10¢4 048
1
#8
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#008
51415-MFJ-A51
BUSH, SLIDER
$8.10¢4 048
1
#009
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$8.61¢4 307
1
#9
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$8.61¢4 307
1
#010
51420-MGS-D31
CASE, R. (LOWER) (SHOWA)
$456.32¢228 160
1
#10
51420-MGS-D31
CASE, R. (LOWER) (SHOWA)
$456.32¢228 160
1
#11
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#011
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$26.52¢13 259
1
#012
51437-MM5-003
RING, PISTON
$5.92¢2 961
1
#12
51437-MM5-003
RING, PISTON
$5.92¢2 961
1
#013
51440-MGS-D71
PIPE, SEAT
$58.26¢29 129
1
#13
51440-MGS-D71
PIPE, SEAT
$58.26¢29 129
1
#014
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.04¢2 519
1
#015
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#15
51454-MM9-671
BOLT, FR. FORK
$40.97¢20 487
1
#16
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#016
51490-MER-R61
SEAL SET, Front FORK
$24.32¢12 161
1
#016
51490-MKA-D81
SEAL SET, FR. FORK
$24.32¢12 161
1
#16
51490-MKA-D81
SEAL SET, FR. FORK
$24.32¢12 161
1
#017
51500-MJF-305
FORK ASSY., L. FR. (COO) (SHOWA)
$919.11¢459 557
1
#17
51500-MJF-305
FORK ASSY., L. FR. (COO) (SHOWA)
$919.11¢459 557
1
#017
51500-MJF-315
FORK Assembly., L Front. (COO) (SHOWA)
$919.11¢459 557
1
#017
51500-MKA-S81
FORK Assembly., L Front. (SHOWA)
$919.11¢459 557
1
#18
51520-MGS-D31
CASE, Left (LOWER) (SHOWA)
$456.32¢228 160
1
#018
51520-MGS-D31
CASE, Left (LOWER) (SHOWA)
$456.32¢228 160
1
#19
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#019
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#20
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#020
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.34¢2 168
1
#021
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#21
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.36¢1 679
1
#022
91251-MKA-D81
DUST SEAL (SHOWA)
$9.20¢4 600
1
#22
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#022
91254-MEE-D01
DUST SEAL (SHOWA)
$9.20¢4 600
1
#23
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
#023
91356-KF0-003
O-RING (33.2X2.4)
$4.20¢2 099
1
