HANDLE SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

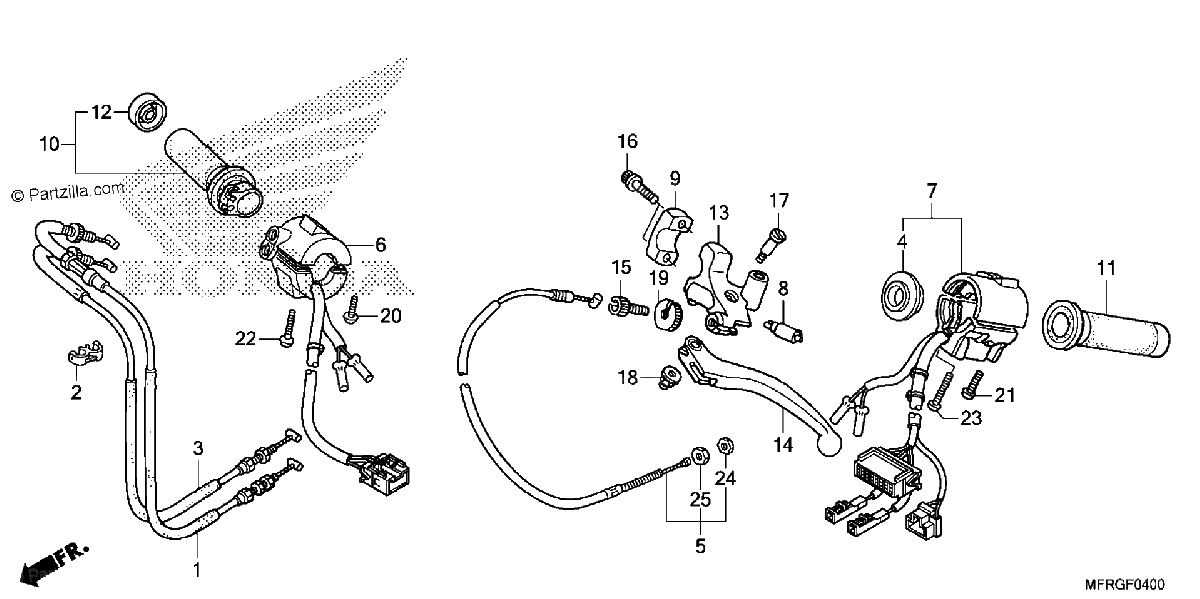

Diagrama de HANDLE SWITCH CABLE

Repuestos

#1
17910-MFR-670
CABLE A, THROTTLE
$31.30¢15 651
1
#2
17915-SA7-981
CLIP, THROTTLE WIRE
$3.36¢1 679
1
#3
17920-MFR-670
CABLE B, THROTTLE
$31.30¢15 651
1
#4
17962-MFE-A40
ADAPTER
$16.89¢8 447
1
#5
22870-MFR-670
CABLE, CLUTCH
$30.75¢15 375
1
#6
35130-MFR-681
SWITCH ASSY., STARTER STOP
$164.27¢82 133
1
#7
35200-MFR-681
SWITCH ASSY., TURN SIGNAL
$183.21¢91 603
1
#8
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$23.40¢11 701
1
#9
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
1
#10
53145-MFE-305
GRIP, R. HANDLE (COO)
$52.39¢26 197
1
#11
53166-MFE-305
GRIP, L. HANDLE (COO)
$36.11¢18 055
1
#12
53167-MFE-A40
CAP, R. GRIP END
$6.65¢3 323
1
#13
53172-MBA-000
BRACKET, HANDLE LEVER
$33.79¢16 894
1
#14
53178-MAV-305
LEVER, L HANDLE (COO)
$23.13¢11 563
1
#15
53192-MFR-670
BOLT, WIRE ADJUSTING
$7.06¢3 530
1
#16
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#17
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#18
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#19
90321-MFR-670
NUT, FIXING
$8.23¢4 117
1
#20
93500-05020-0A
SCREW, PAN (5X20)
$0.93¢466
1
#21
93500-05022-0A
SCREW, PAN (5X22)
$0.79¢397
1
#22
93500-05025-0A
SCREW, PAN (5X25)
$1.12¢558
1
#23
93500-05032-0A
SCREW, PAN (5X32)
$1.30¢650
1
#24
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#25
94031-08000
NUT, HEX. (8MM)
$1.26¢633
1
