FUEL TANK 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

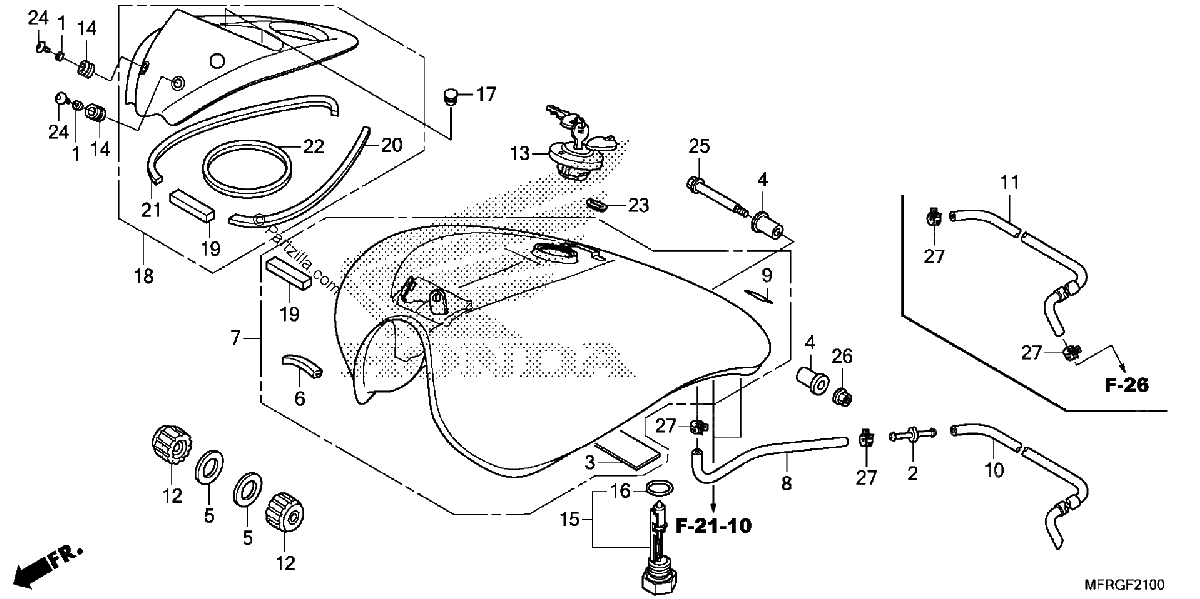

Diagrama de FUEL TANK 1

Repuestos

#1
11346-371-300
COLLAR, ADJUSTING COVER
$11.27¢5 635
1
#2
16958-GJ6-000
JOINT, FUEL TUBE
$5.63¢2 818
1
#3
17506-GCS-300
TAPE, TANK GUARD
$3.92¢1 961
1
#4
17506-MBR-000
CUSHION, FUEL TANK PIVOT
$6.08¢3 042
1
#5
17514-MFY-A00
SPACER, FUEL TANK
$3.06¢1 529
1
#6
17516-HC4-000
TRIM, FUEL TANK
$5.09¢2 547
1
#7
17520-MFY-A00ZJ
TANK SET, FUEL *PB395M* (ATMOSPHERE BLUE METALLIC)
$2112.31¢1 056 154
1
#8
17526-MFY-A00
TUBE, FUEL TANK BREATHER
$20.29¢10 143
1
#9
17528-MFY-A00
TAPE, FUEL TANK (25X25)
$3.62¢1 811
1
#10
17529-MFR-670
TUBE, BREATHER
$16.28¢8 142
1
#12
17611-MFY-A00
CUSHION, FR. FUEL TANK
$10.52¢5 261
1
#13
17620-KR3-751
CAP, FUEL FILLER
$75.77¢37 887
1
#14
18293-GN2-000
RUBBER, PROTECTOR GASKET
$3.36¢1 679
1
#15
37810-MER-D01
SENSOR ASSY., FUEL RESERVE
$55.76¢27 882
1
#16
37811-MB1-008
GASKET, FUEL RESERVE SENSOR
$3.36¢1 679
1
#17
53125-174-670
PLUG, HANDLE COVER (LOWER)
$2.20¢1 098
1
#18
83500-MFY-A00
COVER ASSY., METER
$138.29¢69 144
1
#19
83511-MFE-670
MAT, METER COVER
$2.13¢1 064
1
#20
83513-MFY-A00
CUSHION D, TOP COVER
$4.71¢2 357
1
#21
83514-MFY-A00
CUSHION E, TOP COVER
$5.19¢2 593
1
#22
83516-MFY-A00
CUSHION B, TOP COVER
$2.74¢1 368
1
#23
83551-ME9-000
GROMMET, SIDE COVER
$3.61¢1 805
1
#24
90118-MCL-000
BOLT, SPECIAL (6X14)
$2.75¢1 374
1
#25
90135-MFR-670
BOLT, TANK HINGE
$4.51¢2 254
1
#26
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#27
90652-KSJ-A21
CLAMP, TUBE (8.0)
$1.71¢857
1
