FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

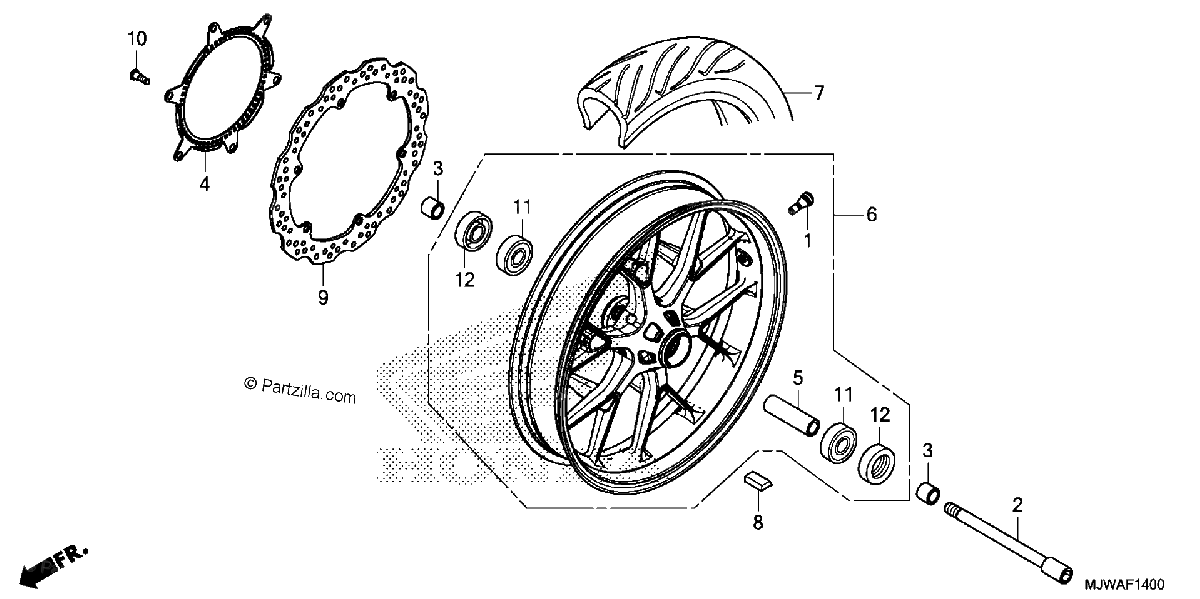

Diagrama de FRONT WHEEL

Repuestos

#001
42753-K38-901
VALVE, RIM
$0.66¢328
1
#001
42753-KWF-901
VALVE, RIM (TRITON)
$0.66¢328
1
#1
42753-KWF-901
VALVE, RIM (TRITON)
$0.66¢328
1
#001
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#1
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#002
44301-MGZ-J00
AXLE, FR. WHEEL
$27.58¢13 789
1
#2
44301-MGZ-J00
AXLE, FR. WHEEL
$27.58¢13 789
1
#3
44311-MGZ-J00
COLLAR, Front WHEEL SIDE
$13.24¢6 618
1
#003
44311-MGZ-J00
COLLAR, Front WHEEL SIDE
$13.24¢6 618
1
#4
44515-MJW-J10
RING, Front PULSER
$133.25¢66 625
1
#004
44515-MJW-J10
RING, Front PULSER
$133.25¢66 625
1
#005
44620-MGZ-J00
COLLAR, FR. AXLE DISTANCE
$11.48¢5 739
1
#5
44620-MGZ-J00
COLLAR, FR. AXLE DISTANCE
$11.48¢5 739
1
#6
44650-MGZ-J01
WHEEL SUB-ASSY., FR.
$306.61¢153 307
1
#006
44650-MGZ-J01
WHEEL SUB-ASSY., FR.
$306.61¢153 307
1
#7
44711-MJW-J01
TIRE, Front. (120/70ZR17) (M/C 58W) (DUNLOP)
$263.06¢131 531
1
#007
44711-MJW-J01
TIRE, Front. (120/70ZR17) (M/C 58W) (DUNLOP)
$263.06¢131 531
1
#8
44728-SEA-N02
WEIGHT, BALANCE (25G) (TOHO ZINK)
$6.64¢3 318
1
#008
44728-SEA-N02
WEIGHT, BALANCE (25G) (TOHO ZINK)
$6.64¢3 318
1
#008
44727-SEA-N02
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.12¢1 558
1
#008
44726-SEA-N02
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.06¢529
1
#8
44727-SEA-N02
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.12¢1 558
1
#8
44722-SEA-N02
WEIGHT, BALANCE (20G) (TOHO ZINK)
$5.84¢2 921
1
#8
44726-SEA-N02
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.06¢529
1
#8
44723-SEA-N02
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.11¢3 553
1
#008
44723-SEA-N02
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.11¢3 553
1
#008
44722-SEA-N02
WEIGHT, BALANCE (20G) (TOHO ZINK)
$5.84¢2 921
1
#8
44721-SEA-N02
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.01¢2 507
1
#008
44721-SEA-N02
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.01¢2 507
1
#9
45251-MGZ-J11
DISK, Front BRAKE (SUNSTAR)
$185.07¢92 535
1
#009
45251-MGZ-J11
DISK, Front BRAKE (SUNSTAR)
$185.07¢92 535
1
#010
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#10
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#11
91051-KS4-003
BEARING, RADIAL BALL (6303)
$40.93¢20 464
1
#011
91051-MGZ-J01
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$23.49¢11 747
1
#11
91051-MGZ-J01
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$23.49¢11 747
1
#11
91054-MT6-831
BEARING, RADIAL BALL (6303UU) (NSK)
$40.93¢20 464
1
#011
91054-MT6-831
BEARING, RADIAL BALL (6303UU) (NSK)
$40.93¢20 464
1
#12
91253-KZJ-901
OIL SEAL (25X47X6.5) (ARAI)
$3.36¢1 679
1
#012
91253-KZJ-901
OIL SEAL (25X47X6.5) (ARAI)
$3.36¢1 679
1
