GEARSHIFT DRUM 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

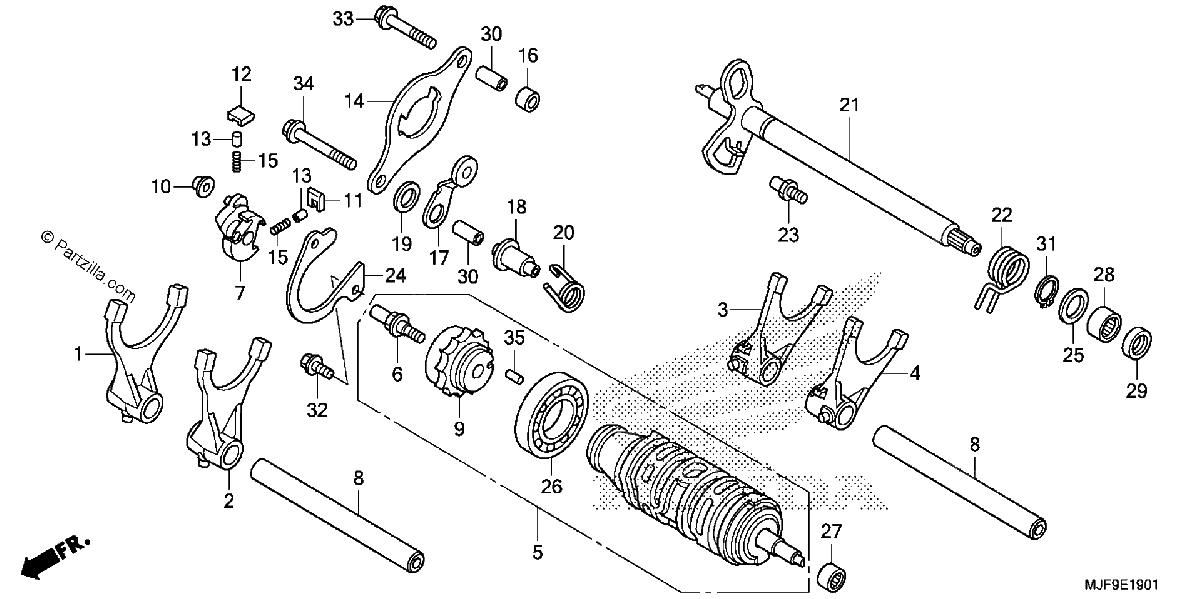

Diagrama de GEARSHIFT DRUM 2

Repuestos

#001
24211-MGS-D20
FORK, Right GEARSHIFT (MAIN)
$127.17¢63 588
1
#1
24211-MGS-D20
FORK, Right GEARSHIFT (MAIN)
$127.17¢63 588
1
#2
24212-MGS-D20
FORK, L GEARSHIFT (MAIN)
$134.94¢67 469
1
#002
24212-MGS-D20
FORK, L GEARSHIFT (MAIN)
$134.94¢67 469
1
#003
24213-MGS-D20
FORK, Right GEARSHIFT (COUNTER)
$124.80¢62 400
1
#3
24213-MGS-D20
FORK, Right GEARSHIFT (COUNTER)
$124.80¢62 400
1
#4
24214-MGS-D20
FORK, L GEARSHIFT (COUNTER)
$124.80¢62 400
1
#004
24214-MGS-D20
FORK, L GEARSHIFT (COUNTER)
$124.80¢62 400
1
#5
24310-MGS-D22
DRUM Assembly., GEARSHIFT
$338.18¢169 088
1
#005
24310-MGS-D21
DRUM Assembly., GEARSHIFT
No Disponible
1
#005
24310-MGS-D22
DRUM Assembly., GEARSHIFT
$338.18¢169 088
1
#5
24310-MGS-D21
DRUM Assembly., GEARSHIFT
No Disponible
1
#006
24315-HL4-000
PIN, SHIFTER
$11.70¢5 850
1
#6
24315-HL4-000
PIN, SHIFTER
$11.70¢5 850
1
#007
24321-KT8-030
SHIFTER, DRUM
$70.86¢35 431
1
#7
24321-KT8-030
SHIFTER, DRUM
$70.86¢35 431
1
#8
24321-MAS-000
SHAFT, GEARSHIFT FORK
$28.77¢14 388
1
#008
24321-MAS-000
SHAFT, GEARSHIFT FORK
$28.77¢14 388
1
#009
24322-MGE-D01
CENTER, SHIFT DRUM
$49.30¢24 650
1
#9
24322-MGE-D01
CENTER, SHIFT DRUM
$49.30¢24 650
1
#10
24322-MM4-000
COLLAR, SHIFTER
$6.20¢3 100
1
#010
24322-MM4-000
COLLAR, SHIFTER
$6.20¢3 100
1
#11
24324-KA3-711
PAWL A, RATCHET
$15.48¢7 738
1
#011
24324-KA3-711
PAWL A, RATCHET
$15.48¢7 738
1
#012
24325-KA3-711
PAWL B, RATCHET
$15.48¢7 738
1
#12
24325-KA3-711
PAWL B, RATCHET
$15.48¢7 738
1
#013
24326-KBH-901
PLUNGER, PAWL
$7.05¢3 525
1
#13
24326-KBH-901
PLUNGER, PAWL
$7.05¢3 525
1
#014
24328-MGS-D20
PLATE, CHANGE GUIDE
$13.55¢6 775
1
#14
24328-MGS-D20
PLATE, CHANGE GUIDE
$13.55¢6 775
1
#015
24329-KA3-740
SPRING, PAWL PLUNGER
$3.65¢1 825
1
#15
24329-KA3-740
SPRING, PAWL PLUNGER
$3.65¢1 825
1
#016
24329-MGS-D20
COLLAR, GUIDE PLATE DISTANCE
$5.19¢2 594
1
#16
24329-MGS-D20
COLLAR, GUIDE PLATE DISTANCE
$5.19¢2 594
1
#017
24430-MGE-000
STOPPER, DRUM
$20.64¢10 319
1
#17
24430-MGE-000
STOPPER, DRUM
$20.64¢10 319
1
#18
24434-MGS-D20
COLLAR, SHIFT DRUM STOPPER PLATE
$12.56¢6 281
1
#018
24434-MGS-D20
COLLAR, SHIFT DRUM STOPPER PLATE
$12.56¢6 281
1
#019
24435-MGE-000
COLLAR, DRUM STOPPER SIDE
$3.34¢1 669
1
#19
24435-MGE-000
COLLAR, DRUM STOPPER SIDE
$3.34¢1 669
1
#020
24435-MGS-D20
SPRING, SHIFT DRUM STOPPER
$7.01¢3 506
1
#20
24435-MGS-D20
SPRING, SHIFT DRUM STOPPER
$7.01¢3 506
1
#21
24610-MGS-D20
SPINDLE, GEARSHIFT
$236.28¢118 138
1
#021
24610-MGS-D20
SPINDLE, GEARSHIFT
$236.28¢118 138
1
#22
24651-MGS-D20
SPRING, GEARSHIFT RETURN
$13.44¢6 719
1
#022
24651-MGS-D20
SPRING, GEARSHIFT RETURN
$13.44¢6 719
1
#23
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.95¢4 975
1
#023
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.95¢4 975
1
#024
24655-MGS-D30
PLATE, SHIFT DRUM BEARING SETTING
$5.47¢2 738
1
#24
24655-MGS-D30
PLATE, SHIFT DRUM BEARING SETTING
$5.47¢2 738
1
#25
90433-KE1-000
WASHER (14MM)
$2.59¢1 294
1
#025
90433-KE1-000
WASHER (14MM)
$2.59¢1 294
1
#026
91007-MGS-D21
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#26
91007-MGS-D21
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#27
91024-MGS-D21
BEARING, NEEDLE (12X18X12)
$5.31¢2 656
1
#027
91024-MGS-D21
BEARING, NEEDLE (12X18X12)
$5.31¢2 656
1
#028
91028-MGS-D21
BEARING, NEEDLE (14X20X12)
$6.95¢3 475
1
#28
91028-MGS-D21
BEARING, NEEDLE (14X20X12)
$6.95¢3 475
1
#29
91203-KK3-830
OIL SEAL (14X22X5)
$4.63¢2 313
1
#029
91203-KK3-830
OIL SEAL (14X22X5)
$4.63¢2 313
1
#030
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#30
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#31
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#031
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#032
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#32
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#033
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
#33
95701-06035-00
BOLT, FLANGE (6X35)
$2.41¢1 206
1
#034
95701-06055-00
BOLT, FLANGE (6X55)
$2.66¢1 331
1
#34
95701-06055-00
BOLT, FLANGE (6X55)
$2.66¢1 331
1
#35
96220-40080
ROLLER (4X8)
$0.65¢325
1
#035
96220-40080
ROLLER (4X8)
$0.65¢325
1
