STEERING DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

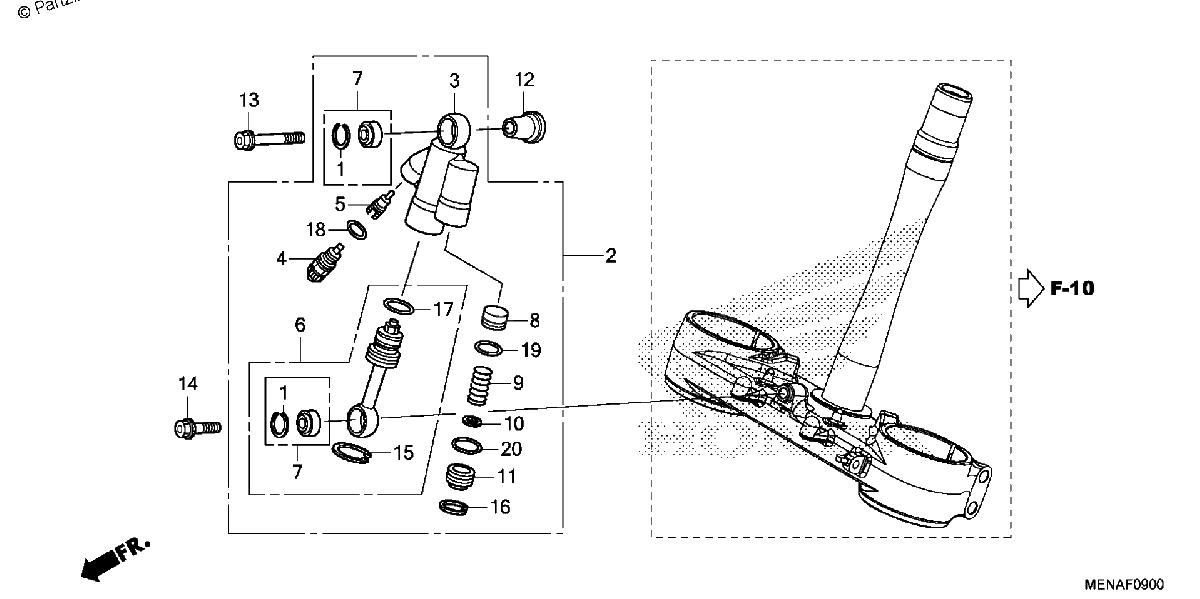

Diagrama de STEERING DAMPER

Repuestos

#1
52487-MEN-A11
RING, STOPPER
$13.65¢6 825
1
#2
53700-KRN-A71
DAMPER ASSY., STEERING
$632.48¢316 238
1
#3
53701-MEN-A51
CASE, DAMPER
$185.10¢92 550
1
#4
53711-MEN-A51
BOLT, PLUG
$60.65¢30 325
1
#5
53712-MEN-A51
PIECE, ADJUST
$13.34¢6 669
1
#6
53721-KRN-A71
ROD, PISTON
$269.80¢134 900
1
#7
53731-MEN-A11
BEARING
$113.55¢56 775
1
#8
53754-MEN-A11
PISTON, FREE
$12.88¢6 438
1
#9
53755-MEN-A51
SPRING, RETURN
$8.88¢4 438
1
#10
53756-KRN-A71
WASHER
$7.31¢3 656
1
#11
53757-MEN-A11
CAP, END
$11.44¢5 719
1
#12
53782-MEN-A70
COLLAR, STEERING DAMPER
$8.53¢4 263
1
#13
90124-MEN-A10
BOLT (7X51.5)
$7.08¢3 538
1
#14
90125-MEN-A10
BOLT (7X25)
$5.35¢2 675
1
#15
90651-MEN-A51
CIRCLIP (26)
$5.60¢2 800
1
#16
90652-MEN-A11
CIRCLIP (17.3)
$4.69¢2 344
1
#17
91256-ML3-791
O-RING (21.9X2)
$5.49¢2 744
1
#18
91351-MEN-A11
O-RING (9.5X1.5)
$2.66¢1 331
1
#19
91352-MEN-A11
O-RING (11X1.9)
$2.46¢1 231
1
#20
91353-MEN-A11
O-RING (13.5X1.5)
$2.66¢1 331
1
