LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

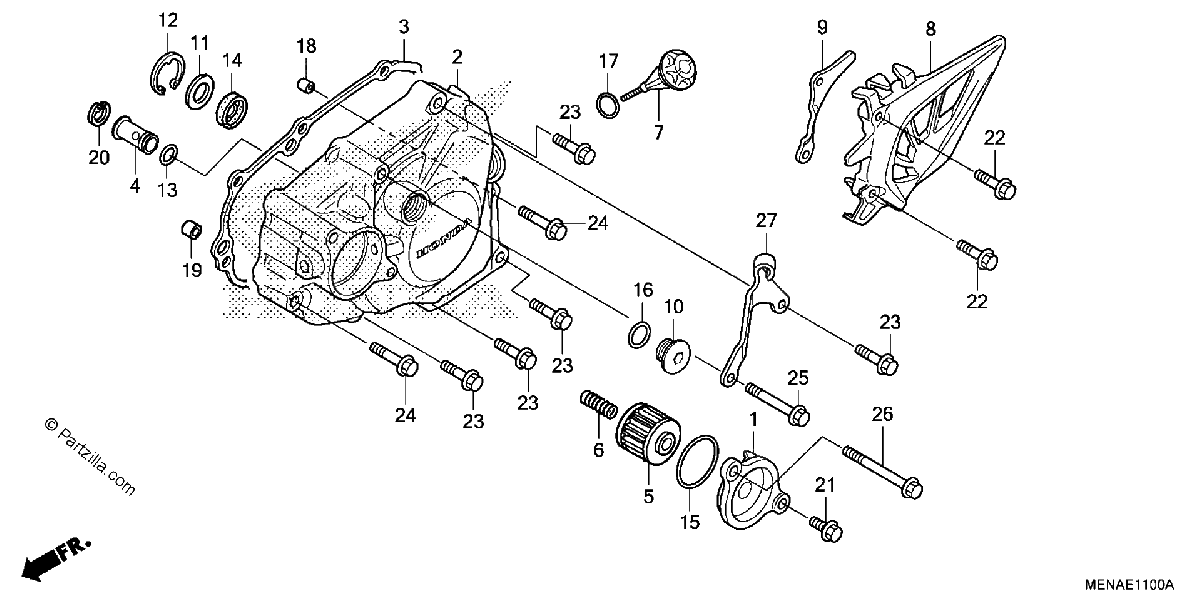

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11333-MEN-A30
COVER, OIL FILTER
$54.75¢27 376
1
#2
11340-MEN-A50
COVER, L. CRANKCASE
$307.23¢153 617
1
#3
11395-MEN-A50
GASKET, L. COVER
$14.82¢7 412
1
#4
15220-MEN-A30
VALVE ASSY., RELIEF
$29.20¢14 599
1
#5
15412-MEN-671
FILTER, ENGINE OIL
$8.38¢4 192
1
#6
15414-MEB-670
SPRING, OIL FILTER
$3.10¢1 553
1
#7
15650-MEN-A30
DIPSTICK, OIL
$9.46¢4 732
1
#8
23810-MEN-A30
COVER, DRIVE SPROCKET
$26.65¢13 323
1
#9
23812-MEN-A30
GUIDE, DRIVE CHAIN
$13.88¢6 940
1
#10
90084-MN8-010
CAP (14MM)
$13.68¢6 842
1
#11
90401-MEY-670
WASHER (13X24X1.6)
$2.33¢1 167
1
#12
90602-MEB-670
CIRCLIP, SPECIAL INNER (24MM)
$3.42¢1 708
1
#13
90751-GK1-003
O-RING (8.5X1.7)
$3.21¢1 604
1
#14
91204-MEN-A31
OIL SEAL (10X21X5)
$4.30¢2 151
1
#15
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
1
#16
91303-377-000
O-RING (13.8X2.5)
$3.82¢1 909
1
#17
91307-035-000
O-RING (18X3)
$3.36¢1 679
1
#18
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#19
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#20
94520-14000
CIRCLIP, INNER (14MM)
$1.09¢546
1
#21
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#22
90001-KRN-A90
BOLT, FLANGE (6X30)
$3.15¢1 576
1
#23
96001-06032-00
BOLT, FLANGE (6X32)
$1.66¢828
1
#24
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#25
96001-06055-00
BOLT, FLANGE (6X55)
$1.92¢960
1
#26
96001-06075-00
BOLT, FLANGE (6X75)
$2.64¢1 322
1
#27
22838-MEN-A90
RECEIVER, CLUTCH CABLE
$9.33¢4 663
1
