FRONT WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

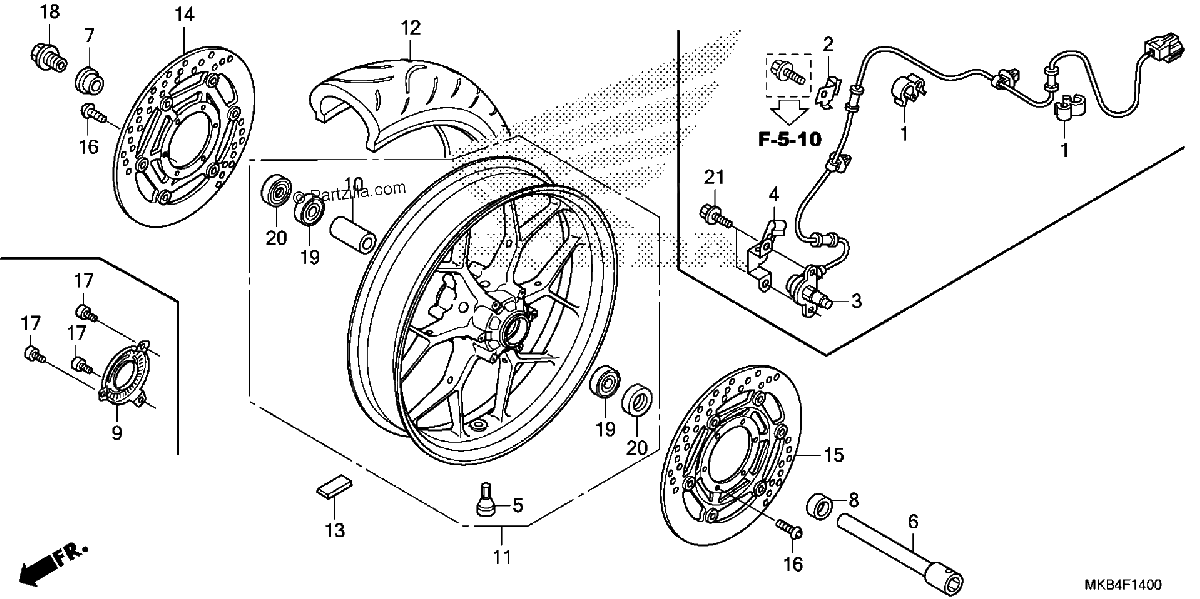

Diagrama de FRONT WHEEL

Repuestos

#1
11152-KS4-003
CLAMP, PIPE
$8.64¢4 319
1
#2
38514-MEJ-J00
CLAMP B, SENSOR WIRE
$2.91¢1 456
1
#3
38520-MFL-D01
SENSOR, FR. WHEEL SPEED
$235.51¢117 756
1
#4
38525-MFJ-A50
GUIDE, FR. SENSOR WIRE
$16.54¢8 269
1
#5
42753-ML7-003
VALVE, RIM (BS)
$14.79¢7 394
1
#5
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#6
44301-MFL-000
AXLE, FR. WHEEL
$100.25¢50 125
1
#7
44311-MFL-000
COLLAR, R. FR. WHEEL SIDE
$12.51¢6 256
1
#8
44312-MFL-000
COLLAR, L. FR. WHEEL SIDE
$9.50¢4 750
1
#9
44515-MFJ-A50
RING, FR. PULSER
$58.27¢29 138
1
#10
44620-MCJ-000
COLLAR, FR. WHEEL DISTANCE
$24.47¢12 237
1
#11
44650-MGP-305ZE
WHEEL SUB-ASSY., FR. (TYPE2) (COO)
$1183.36¢591 681
1
#12
44711-MGP-003
TIRE, FR. (120/70ZR17) (M/C 58W) (BS)
$189.69¢94 844
1
#12
44711-MGP-014
TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)
$292.33¢146 163
1
#13
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.67¢2 838
1
#13
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.76¢3 381
1
#13
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.76¢3 381
1
#14
45120-MFL-D01
DISK, R. FR. BRAKE
$741.21¢370 606
1
#15
45220-MFL-003
DISK, L. FR. BRAKE
$754.57¢377 287
1
#16
90106-MFL-D20
BOLT, BRAKE DISK (6X17)
$3.20¢1 600
1
#17
90131-KFK-630
BOLT, TORX (5X10)
$3.65¢1 825
1
#18
90306-MFL-D00
BOLT, FR. AXLE
$19.52¢9 763
1
#19
91052-MCF-003
BEARING, RADIAL BALL (6005)
$17.43¢8 713
1
#20
91253-MFL-003
DUST SEAL (31X47X7)
$7.69¢3 844
1
#21
96001-06014-07
BOLT, FLANGE (6X14)
$1.54¢769
1
