REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

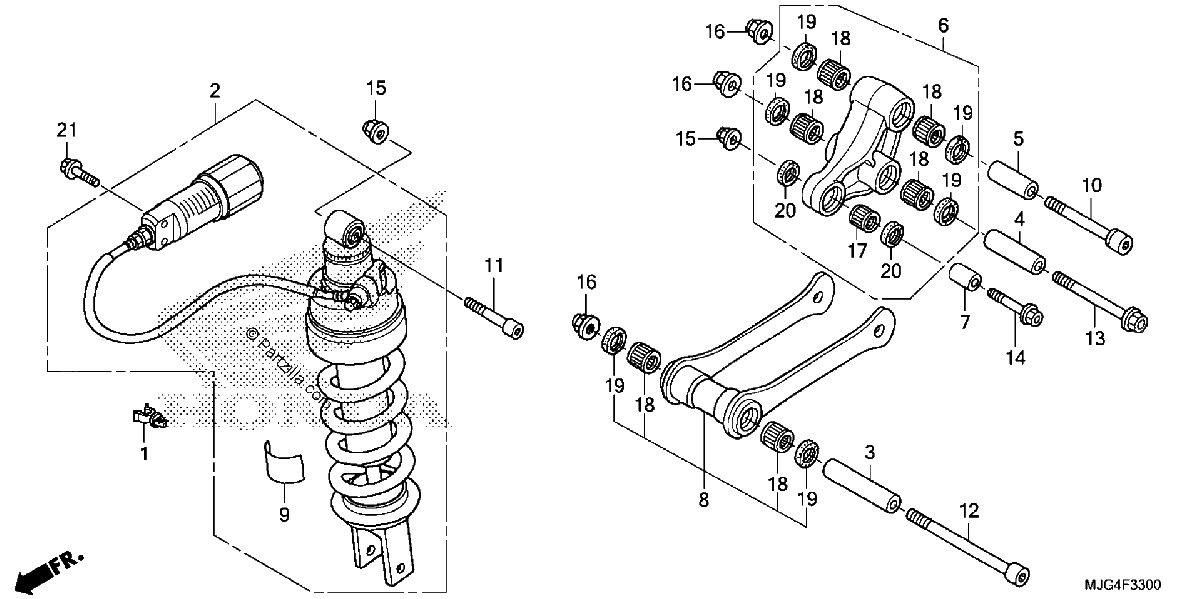

Diagrama de REAR SHOCK ABSORBER

Repuestos

#002
52400-MJG-305
CUSHION ASSY., RR. (COO) (SHOWA)
$1498.94¢749 472
1
#2
52400-MJG-305
CUSHION ASSY., RR. (COO) (SHOWA)
$1498.94¢749 472
1
#002
52400-MJG-671
CUSHION Assembly,Rear
$1498.94¢749 472
1
#003
52462-MJG-670
COLLAR, CONNECTING ROD PIVOT
$24.13¢12 064
1
#3
52462-MJG-670
COLLAR, CONNECTING ROD PIVOT
$24.13¢12 064
1
#004
52463-MJG-670
COLLAR C, CUSHION ARM
$18.95¢9 476
1
#4
52463-MJG-670
COLLAR C, CUSHION ARM
$18.95¢9 476
1
#5
52464-MJG-670
COLLAR A, CUSHION ARM
$15.19¢7 596
1
#005
52464-MJG-670
COLLAR A, CUSHION ARM
$15.19¢7 596
1
#6
52465-MCA-000
ARM SUB-ASSY., CUSHION
$346.02¢173 012
1
#006
52465-MCA-000
ARM SUB-ASSY., CUSHION
$346.02¢173 012
1
#7
52465-MY1-000
COLLAR C, CUSHION ARM
$6.59¢3 295
1
#007
52465-MY1-000
COLLAR C, CUSHION ARM
$6.59¢3 295
1
#8
52475-MCA-000
ROD SUB-ASSY., CUSHION CONNECTING
$149.67¢74 836
1
#008
52475-MCA-000
ROD SUB-ASSY., CUSHION CONNECTING
$149.67¢74 836
1
#9
87516-KV6-610
LABEL, RR. DAMPER (ENGLISH)
$5.84¢2 921
1
#009
87516-KV6-610
LABEL, RR. DAMPER (ENGLISH)
$5.84¢2 921
1
#10
90110-MCA-000
BOLT, SOCKET (12X90)
$14.74¢7 371
1
#010
90110-MCA-000
BOLT, SOCKET (12X90)
$14.74¢7 371
1
#011
90110-ML7-000
BOLT, SOCKET (10X55)
$6.43¢3 214
1
#11
90110-ML7-000
BOLT, SOCKET (10X55)
$6.43¢3 214
1
#012
90111-MCA-000
BOLT, SOCKET (12X127)
$16.55¢8 274
1
#12
90111-MCA-000
BOLT, SOCKET (12X127)
$16.55¢8 274
1
#13
90123-MCA-000
BOLT, FLANGE (12X99)
$6.35¢3 174
1
#013
90123-MCA-000
BOLT, FLANGE (12X99)
$6.35¢3 174
1
#014
90153-KF0-000
BOLT, FLANGE (10X55)
$11.74¢5 871
1
#14
90153-KF0-000
BOLT, FLANGE (10X55)
$11.74¢5 871
1
#015
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#15
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#016
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#16
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#017
91071-MY1-005
BEARING, NEEDLE (17X24X17) (KOYO)
$21.03¢10 517
1
#17
91071-MY1-005
BEARING, NEEDLE (17X24X17) (KOYO)
$21.03¢10 517
1
#018
91072-MY1-005
BEARING, NEEDLE (20X26X20)
$19.78¢9 890
1
#18
91072-MY1-005
BEARING, NEEDLE (20X26X20)
$19.78¢9 890
1
#019
91254-KS6-003
DUST SEAL (20X26X4.5) (ARAI)
$9.90¢4 951
1
#19
91254-KS6-003
DUST SEAL (20X26X4.5) (ARAI)
$9.90¢4 951
1
#020
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#20
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#021
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#21
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
