TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

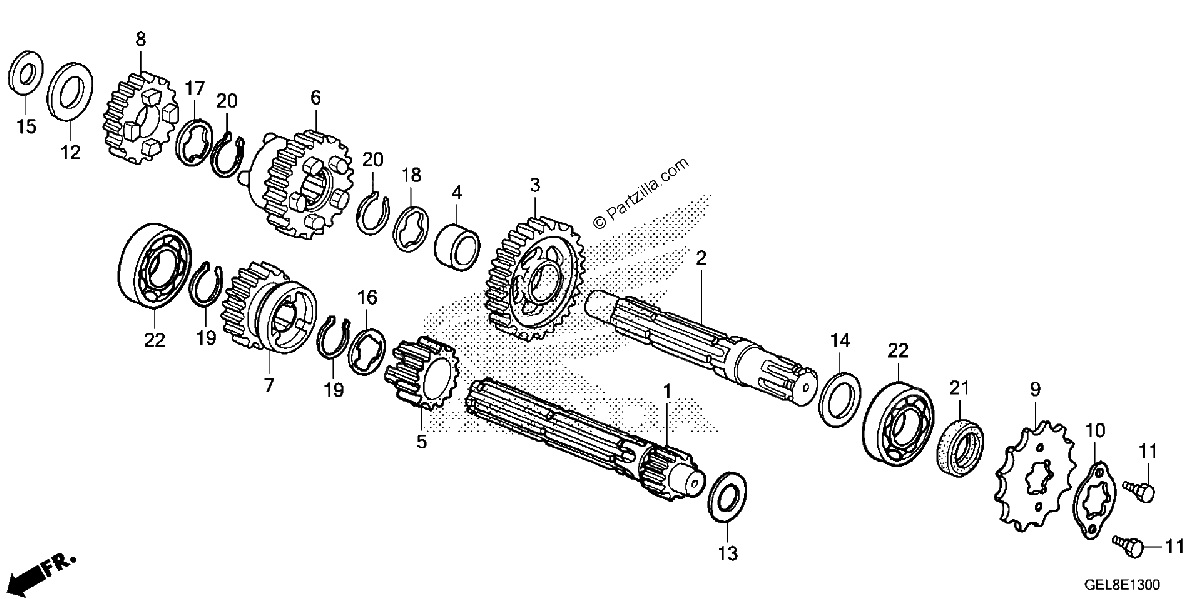

Diagrama de TRANSMISSION

Repuestos

#1
23211-GEL-A80
MAINSHAFT (11T)
$94.98¢47 489
1
#2
23221-GEL-A80
COUNTERSHAFT
$92.55¢46 276
1
#3
23421-GEL-A80
GEAR, COUNTERSHAFT LOW (36T)
$69.06¢34 529
1
#4
23422-GEL-A80
BUSH (20X10)
$12.65¢6 325
1
#5
23431-GEL-A80
GEAR, MAINSHAFT SECOND (15T)
$49.30¢24 650
1
#6
23441-GEL-A80
GEAR, COUNTERSHAFT SECOND (25T)
$79.32¢39 658
1
#7
23471-GEL-A80
GEAR, MAINSHAFT THIRD (21T)
$66.08¢33 040
1
#8
23481-GEL-A80
GEAR, COUNTERSHAFT THIRD (25T)
$59.12¢29 561
1
#9
23800-GEL-A80
SPROCKET, DRIVE (14T)
$21.61¢10 804
1
#10
23802-GEL-A80
PLATE, DRIVE SPROCKET FIXING
$5.98¢2 990
1
#11
90084-041-000
BOLT, DRIVE SPROCKET FIXING
$5.14¢2 570
1
#12
90409-GEL-A80
WASHER A, THRUST
$3.07¢1 535
1
#13
90451-GEL-A80
WASHER, THRUST (14MM)
$3.45¢1 725
1
#14
90452-GB4-770
WASHER, THRUST (17MM)
$2.43¢1 213
1
#15
90453-GEL-A80
WASHER, THRUST (13.5MM)
$3.45¢1 725
1
#16
90461-035-000
WASHER, SPLINE (17MM)
$3.06¢1 529
1
#17
90461-459-010
WASHER, SPLINE (20MM)
$6.55¢3 278
1
#18
90461-GB4-770
WASHER, SPLINE (20X1.2)
$4.01¢2 007
1
#19
90601-KYY-900
CIRCLIP (17MM)
$3.36¢1 679
1
#20
90602-KYY-900
CIRCLIP (20MM)
$4.16¢2 081
1
#21
91204-KWB-601
OIL SEAL (17X29X5)
$1.47¢736
1
#22
91015-GEL-A80
BEARING, RADIAL BALL (6203)
$24.28¢12 138
1
