CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

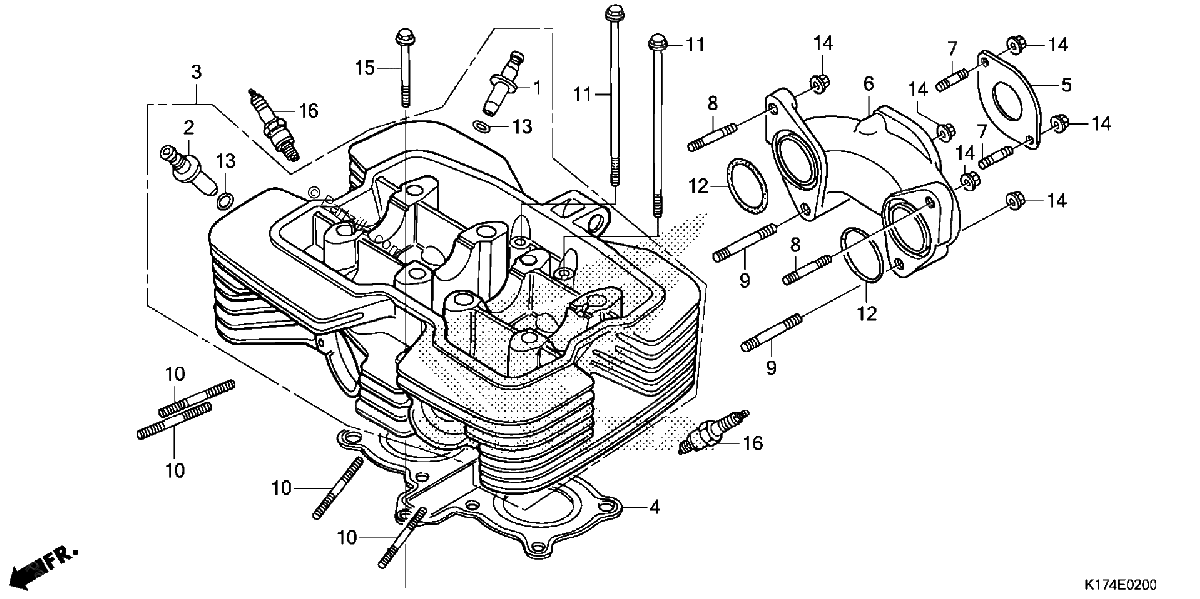

Diagrama de CYLINDER HEAD

Repuestos

#001
12021-149-300
GUIDE, IN. VALVE (OVER SIZE)
$13.76¢6 881
1
#1
12021-149-300
GUIDE, IN. VALVE (OVER SIZE)
$13.76¢6 881
1
#001
12021-149-405
GUIDE, VALVE
$13.76¢6 881
1
#1
12021-149-405
GUIDE, VALVE
$13.76¢6 881
1
#2
12023-465-405
GUIDE, VALVE
$21.94¢10 969
1
#002
12023-465-405
GUIDE, VALVE
$21.94¢10 969
1
#002
12023-465-830
GUIDE, EX. VALVE (OVER SIZE)
$21.94¢10 969
1
#2
12023-465-830
GUIDE, EX. VALVE (OVER SIZE)
$21.94¢10 969
1
#3
12200-KBG-671
CYLINDER HEAD
$1251.83¢625 913
1
#003
12200-KBG-671
CYLINDER HEAD
$1251.83¢625 913
1
#004
12251-KBG-671
GASKET, CYLINDER HEAD
$50.29¢25 144
1
#4
12251-KBG-671
GASKET, CYLINDER HEAD
$50.29¢25 144
1
#005
16229-KBG-771
GASKET, CARBURETOR INSULATOR
$11.29¢5 644
1
#5
16229-KBG-771
GASKET, CARBURETOR INSULATOR
$11.29¢5 644
1
#005
16229-KBG-772
GASKET
$11.29¢5 644
1
#006
17111-KBG-670
MANIFOLD, IN.
$134.86¢67 431
1
#6
17111-KBG-670
MANIFOLD, IN.
$134.86¢67 431
1
#7
90033-KEN-620
BOLT, STUD (6X16)
$4.68¢2 338
1
#007
90033-KEN-620
BOLT, STUD (6X16)
$4.68¢2 338
1
#8
90033-399-000
BOLT, STUD (6X32)
$2.66¢1 331
1
#008
90033-399-000
BOLT, STUD (6X32)
$2.66¢1 331
1
#009
90034-KBG-670
BOLT, STUD (6X40)
$6.18¢3 088
1
#9
90034-KBG-670
BOLT, STUD (6X40)
$6.18¢3 088
1
#010
90036-KBG-670
BOLT, STUD (6X29)
$7.04¢3 519
1
#10
90036-KBG-670
BOLT, STUD (6X29)
$7.04¢3 519
1
#11
90048-KB4-670
BOLT, FLANGE (6X145)
$10.45¢5 225
1
#011
90048-KB4-670
BOLT, FLANGE (6X145)
$10.45¢5 225
1
#12
91301-KR3-003
O-RING (25.5X2.5) (ARAI)
$5.09¢2 544
1
#012
91301-KR3-003
O-RING (25.5X2.5) (ARAI)
$5.09¢2 544
1
#13
91301-200-000
O-RING (10X1.6)
$3.65¢1 825
1
#013
91301-200-000
O-RING (10X1.6)
$3.65¢1 825
1
#014
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#14
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#015
95701-06065-00
BOLT, FLANGE (6X65)
$1.95¢975
1
#15
95701-06065-00
BOLT, FLANGE (6X65)
$1.95¢975
1
#016
98056-56726
SPARK PLUG (U20FSR-U) (DENSO)
$3.02¢1 513
1
#016
98056-57726
SPARK PLUG (U22FSR-U) (DENSO)
$3.02¢1 513
1
#016
98056-57718
SPARK PLUG (CR7HSA) (NGK)
$3.13¢1 563
1
#16
98056-57718
SPARK PLUG (CR7HSA) (NGK)
$3.13¢1 563
1
#16
98056-56726
SPARK PLUG (U20FSR-U) (DENSO)
$3.02¢1 513
1
#016
98056-55718
SPARK PLUG (CR5HSA) (NGK)
$3.13¢1 563
1
#016
98056-56718
SPARK PLUG (CR6HSA) (NGK)
$3.13¢1 563
1
#16
98056-56718
SPARK PLUG (CR6HSA) (NGK)
$3.13¢1 563
1
#16
98056-55726
SPARK PLUG (U16FSR-U) (DENSO)
$3.17¢1 588
1
#016
98056-55726
SPARK PLUG (U16FSR-U) (DENSO)
$3.17¢1 588
1
#16
98056-55718
SPARK PLUG (CR5HSA) (NGK)
$3.13¢1 563
1
#16
98056-57726
SPARK PLUG (U22FSR-U) (DENSO)
$3.02¢1 513
1
