FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

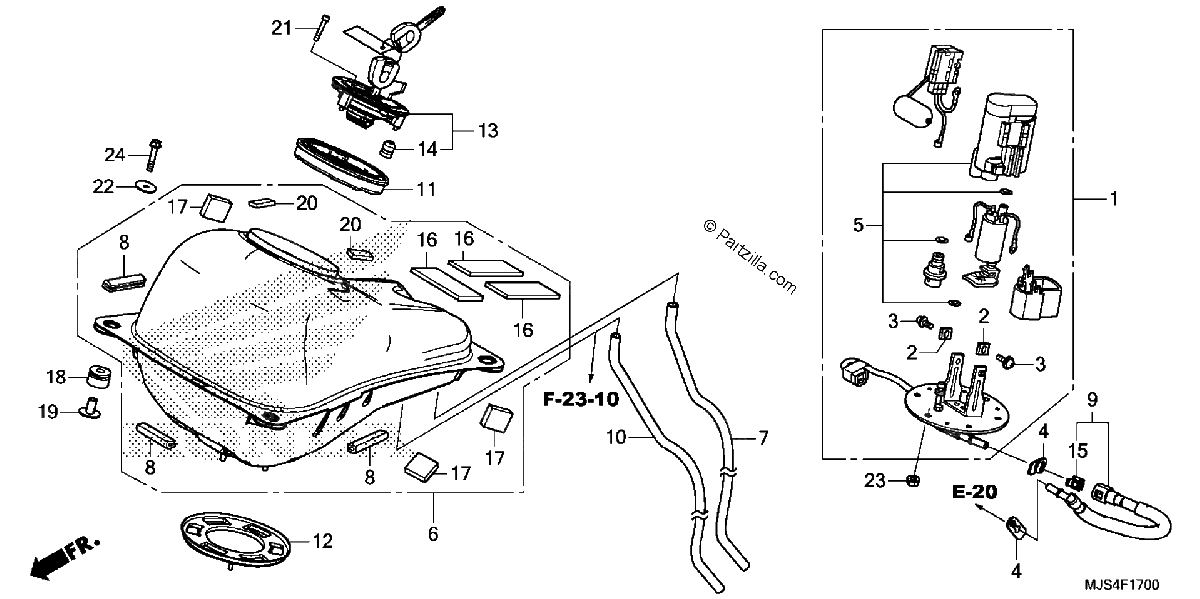

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#1
16700-MJS-J71
PUMP ASSY., FUEL (MSDS)
$823.78¢411 890
1
#2
16711-MGS-D31
STOPPER
$5.73¢2 864
1
#3
16712-MGS-D31
SCREW (4X6.6)
$2.22¢1 110
1
#4
16719-MEW-920
DAMPER, CONNECTOR
$3.36¢1 679
1
#5
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#6
17500-MJS-J70
TANK ASSY., FUEL
$1062.57¢531 283
1
#7
17508-MJS-J70
TUBE A, DRAIN
$23.18¢11 592
1
#8
17523-MEA-670
TRIM, FUEL TANK
$3.36¢1 679
1
#9
17526-MJS-J71
HOSE, FUEL FEED
$141.74¢70 869
1
#11
17543-MJS-J70
SEAL, FUEL TANK
$13.57¢6 785
1
#12
17574-KZZ-910
GASKET, BASE
$36.14¢18 072
1
#13
17620-MGP-D63
CAP, FUEL FILLER
No Disponible
1
#14
17621-MGP-D61
SEAL, BREATHER
$5.73¢2 864
1
#15
17711-MGE-003
RETAINER
$7.07¢3 536
1
#16
50195-GAG-000
CUSHION, EQUALIZER
$4.04¢2 018
1
#17
50283-MR7-300
RUBBER, SEAT RAIL
$3.36¢1 679
1
#18
77206-464-000
RUBBER, SEAT MOUNTING
$7.28¢3 640
1
#19
77207-464-000
COLLAR, SEAT MOUNTING
$8.51¢4 255
1
#20
80129-MEG-000
RUBBER, RR. FRAME
$1.70¢851
1
#21
90110-MGP-D60
BOLT, SOCKET (4X24) (SUS)
$3.63¢1 817
1
#22
90404-680-000
WASHER (6.5X25X1.5)
$4.53¢2 266
1
#23
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#24
95701-06032-08
BOLT, FLANGE (6X32)
$2.22¢1 110
1
