MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

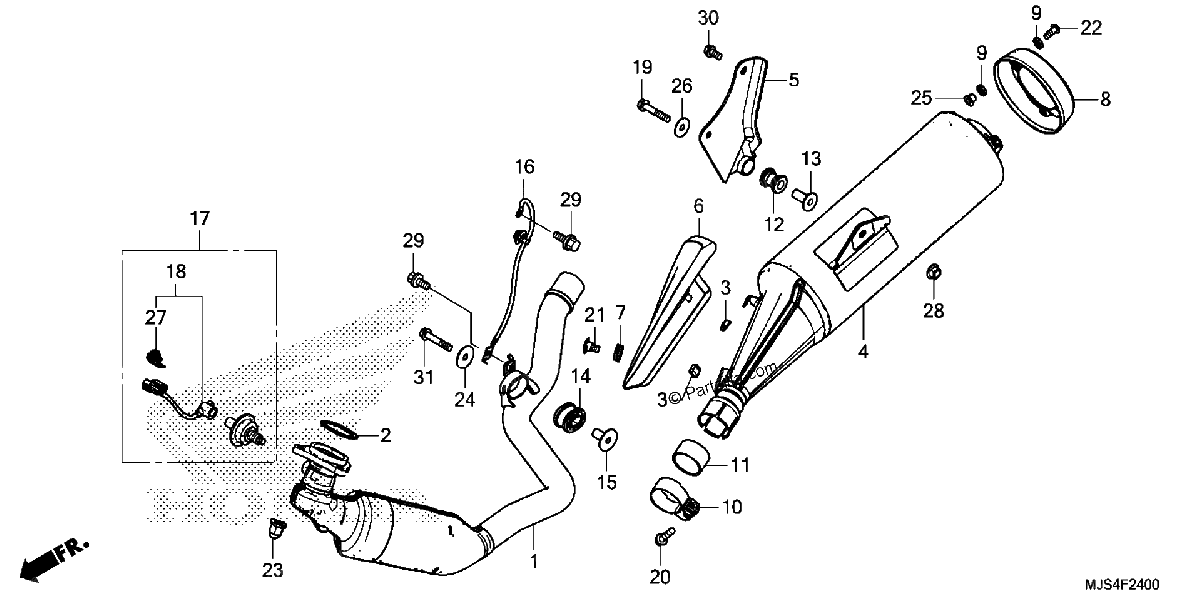

Diagrama de MUFFLER

Repuestos

#1
18150-MJS-A92
PIPE, EX.
$1183.43¢591 715
1
#2
18291-MGS-D31
GASKET, EX PIPE
$13.41¢6 704
1
#3
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#4
18310-MJS-305
MUFFLER (COO)
$579.19¢289 593
1
#5
18315-MJS-J70
BRACKET, MUFFLER
$63.99¢31 993
1
#6
18342-MGS-D71
COVER, MUFFLER
$69.55¢34 776
1
#7
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#8
18350-MGS-D70
COVER, MUFFLER END
$64.57¢32 286
1
#9
18365-MEE-D00
WASHER, RUBBER (8.5X13X2.5)
$2.28¢1 138
1
#10
18373-413-000
BAND, R. FR. MUFFLER
$46.11¢23 057
1
#11
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#12
18421-MA6-000
RUBBER, MUFFLER MOUNTING
$7.85¢3 927
1
#13
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$8.83¢4 416
1
#14
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$21.88¢10 942
1
#15
18423-MGS-D30
COLLAR, EX. PIPE MOUNTING
$9.11¢4 554
1
#16
32200-MJS-J70
SUB-HARNESS, OXYGEN SENSOR GROUND
$9.86¢4 928
1
#17
36532-MJS-J71
SENSOR, OXYGEN
$291.71¢145 854
1
#18
36533-MJS-J70
WIRE, OXYGEN SENSOR
$73.98¢36 990
1
#19
90101-MJS-J70
BOLT, FLANGE (8X45)
$4.07¢2 035
1
#20
90103-KCM-620
BOLT, FLANGE (8X35)
$1.86¢932
1
#21
90113-GFP-B00
SCREW, PAN (6X12)
$3.99¢1 995
1
#22
90132-MEE-D00
BOLT, SPECIAL (6X15) (SUS)
$1.18¢592
1
#23
90304-ME1-670
NUT, CAP (8MM)
$6.64¢3 318
1
#24
90501-819-000
WASHER (8MM)
$1.69¢845
1
#25
90501-GN5-830
COLLAR (8.5X7)
$2.53¢1 265
1
#26
90501-KK6-000
WASHER (8.3MM)
$2.94¢1 472
1
#27
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
1
#28
94050-08080
NUT, FLANGE (8MM)
$1.06¢529
1
#29
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#30
95701-08016-08
BOLT, FLANGE (8X16)
$1.98¢989
1
#31
96300-08045-04
BOLT, FLANGE (8X45)
$1.79¢897
1
