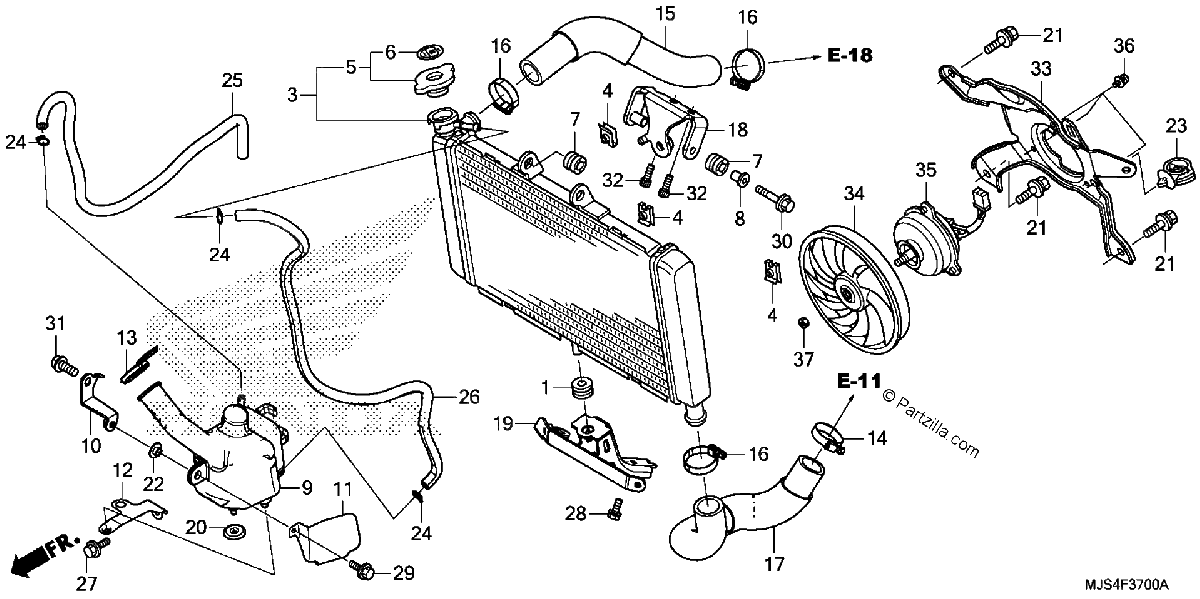

RADIATOR
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER, CUSHION
$5.35¢2 674
#3
RADIATOR (COO)
$901.90¢450 949
#4
NUT, SETTING (6MM)
$3.45¢1 725
#5
CAP, RADIATOR
$32.35¢16 175
#6
LABEL, RADIATOR CAP
$3.36¢1 679
#7
RUBBER, RADIATOR MOUNTING
$2.15¢1 075
#8
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
#9
TANK, RADIATOR RESERVE (COO)
$42.37¢21 183
#10
STAY, RESERVE TANK (UPPER)
$8.64¢4 318
#11
GUARD, RESERVE TANK
$20.10¢10 051
#12
STAY, RESERVE TANK (LOWER)
$8.29¢4 146
#13
CAP, RESERVE TANK
$5.36¢2 680
#14
CLAMP, WATER HOSE (35MM)
$11.14¢5 572
#15
HOSE, RADIATOR (UPPER)
$20.34¢10 172
#16
CLAMP, WATER HOSE
$7.89¢3 944
#17
HOSE, RADIATOR (LOWER)
$24.77¢12 385
#18
STAY, RADIATOR (UPPER)
$19.20¢9 603
#19
STAY, RADIATOR (LOWER)
$20.44¢10 218
#20
GROMMET, TOP COVER
$2.54¢1 271
#21
BOLT-WASHER (6X12)
$2.28¢1 138
#22
WASHER, CHAIN CASE SETTING
$3.36¢1 679
#23
CLIP, HARNESS
$3.69¢1 846
#24
CLIP, TUBE (B10)
$2.24¢1 121
#25
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
#26
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
#27
BOLT, FLANGE (6X14)
$1.13¢564
#28
BOLT, FLANGE (6X14)
$1.28¢638
#29
BOLT, FLANGE (6X16)
$1.92¢960
#30
BOLT, FLANGE (6X25)
$2.13¢1 064
#31
BOLT, FLANGE (8X20)
$2.21¢1 104
#32
BOLT, SOCKET (6X16)
$2.06¢1 029
#33
SHROUD
$95.69¢47 846
#34
FAN, COOLING (TOYO)
$42.38¢21 189
#35
MOTOR Assembly., FAN
$255.77¢127 886
#36
SCREW-WASHER (4X6)
$1.36¢678
#37
NUT, HEX. (3MM)
$1.23¢615
#37
NUT, FLANGE (3MM)
$2.75¢1 374
