WINDSCREEN FRONT GARNISH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

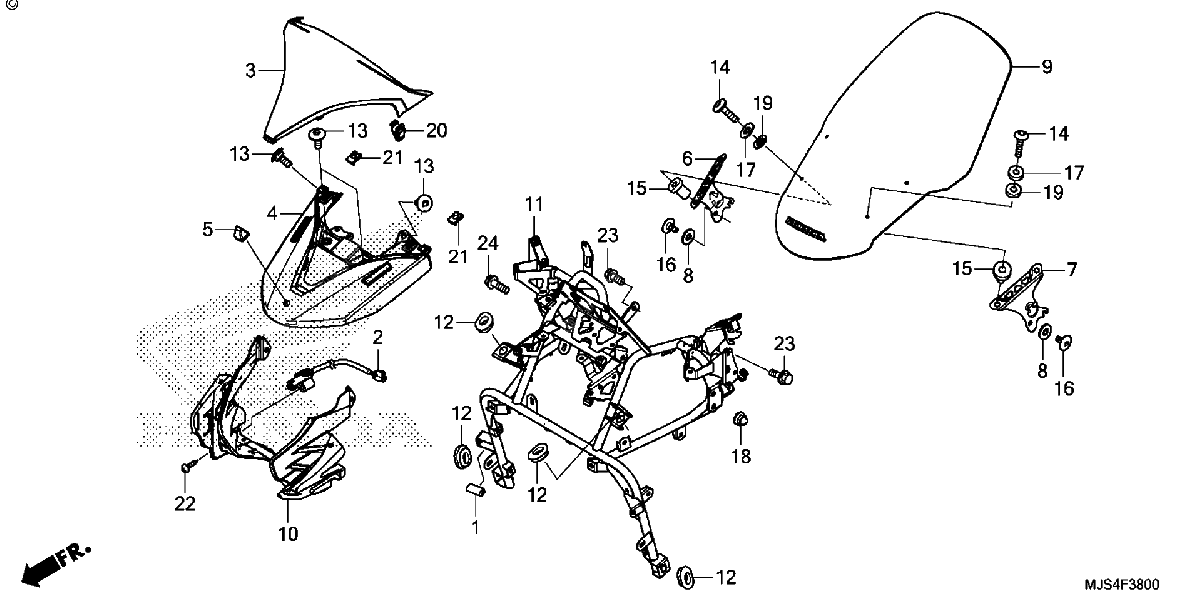

Diagrama de WINDSCREEN FRONT GARNISH

Repuestos

#1
17516-HC4-000
TRIM, FUEL TANK
$5.09¢2 547
1
#2
37880-MJS-J71
SENSOR, OPEN AIR TEMPERATURE
$77.61¢38 807
1
#3
64110-MJS-J70ZA
COVER, METER (UPPER) *NHB01* (GRAPHITE BLACK)
$173.09¢86 543
1
#4
64130-MJS-J70ZA
GARNISH, FR. *NHB01* (GRAPHITE BLACK)
$129.35¢64 676
1
#5
64131-MJS-J70
RUBBER, GARNISH
$6.43¢3 214
1
#6
64201-MJS-J70ZA
STAY, R. WINDSCREEN *NH105* (MAT BLACK)
$45.87¢22 937
1
#7
64202-MJS-J70ZA
STAY, L. WINDSCREEN *NH105* (MAT BLACK)
$45.87¢22 937
1
#8
90148-SA0-000
WASHER, BUMPER BOLT
$4.04¢2 018
1
#8
64205-166-610
WASHER, SCREEN SETTING
$2.62¢1 311
1
#9
64210-MJS-305ZA
WINDSCREEN SET (TYPE1) (WL)(COO)
$516.69¢258 347
1
#10
64410-MJS-J70
COVER, FR. (UPPER)
$49.92¢24 961
1
#11
64501-MJS-J70
STAY, FR. COWL
$455.17¢227 585
1
#12
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#13
90101-MJJ-D30
SCREW, SPECIAL (5X14)
$3.52¢1 759
1
#14
90103-MBG-000
SCREW, PAN (5X20)
$2.39¢1 196
1
#15
90111-MGS-D70
NUT, WELL (5MM)
$3.78¢1 892
1
#16
90117-MEW-920
BOLT, SCREEN STAY
$3.43¢1 713
1
#17
90148-SA0-000
WASHER, BUMPER BOLT
$4.04¢2 018
1
#17
90504-964-000
WASHER, THRUST (5MM)
$2.24¢1 121
1
#18
90161-MM8-000
NUT, FLANGE CAP (8MM)
$3.36¢1 679
1
#19
64205-166-610
WASHER, SCREEN SETTING
$2.62¢1 311
1
#19
90504-964-000
WASHER, THRUST (5MM)
$2.24¢1 121
1
#20
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#21
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#22
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#23
95701-08018-07
BOLT, FLANGE (8X18)
$1.00¢500
1
#24
95701-08025-07
BOLT, FLANGE (8X25)
$1.09¢546
1
#24
95801-08025-07
BOLT, FLANGE (8X25)
$1.09¢546
1
