REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

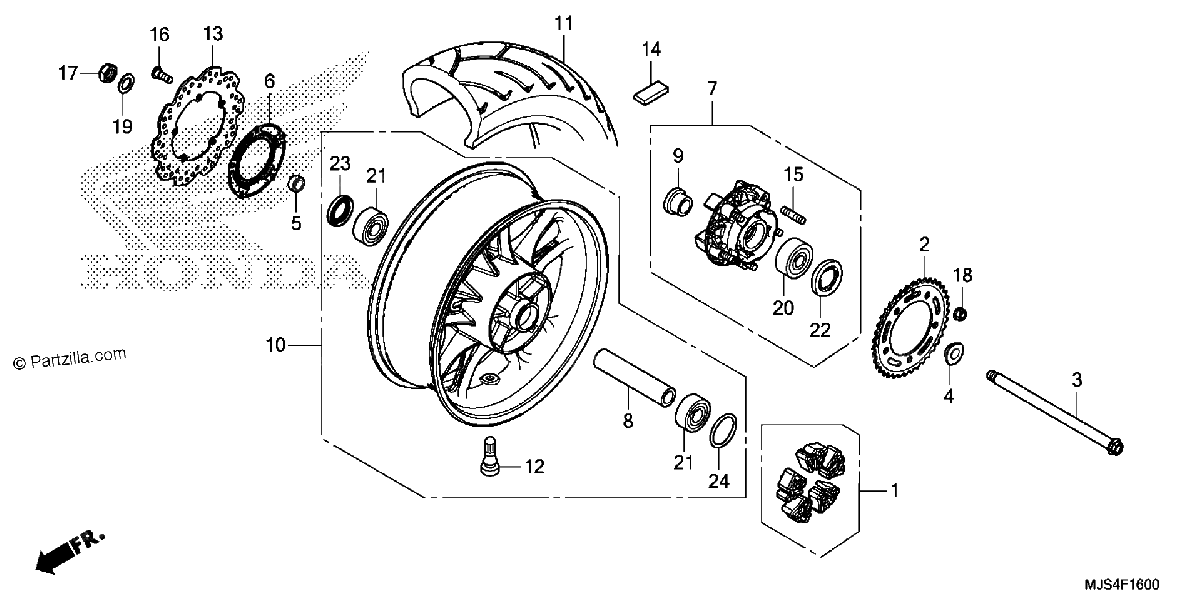

Diagrama de REAR WHEEL

Repuestos

#1
06410-MGS-D30
DAMPER SET, WHEEL
$61.81¢30 906
1
#2
41201-MGS-D70
SPROCKET, FINAL DRIVEN (39T)
$92.03¢46 017
1
#3
42301-MGS-D30
AXLE, RR. WHEEL
$56.33¢28 163
1
#4
42311-MGS-D10
COLLAR, L. RR. WHEEL SIDE
$25.13¢12 564
1
#5
42312-MGS-D10
COLLAR, RR. BRAKE SIDE
$16.69¢8 343
1
#6
42515-MGS-D80
RING, Rear PULSER
$74.62¢37 312
1
#7
42615-MGS-D30
FLANGE SUB-Assembly., Rear DRIVEN
$307.82¢153 910
1
#8
42620-MJS-J70
COLLAR, RR. AXLE DISTANCE
$36.12¢18 061
1
#9
42625-MGS-D30
COLLAR B, RR. WHEEL DISTANCE
$20.80¢10 402
1
#10
42650-MJS-305
WHEEL SUB-ASSY., RR. (COO)
$1291.71¢645 857
1
#11
42711-MJS-J71
TIRE, RR. (200/50ZR17 M/C 75W) (DUNLOP)
$352.93¢176 467
1
#12
42753-ML7-004
VALVE, RIM (DUNLOP)
$13.60¢6 802
1
#13
43251-MJS-J71
DISK, RR. BRAKE (SUNSTAR)
$365.25¢182 626
1
#14
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.22¢3 111
1
#14
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.22¢2 610
1
#14
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.22¢3 111
1
#15
90102-MAS-000
BOLT, STUD (12X25)
$4.47¢2 237
1
#16
90105-MGS-D30
BOLT, DISK (8X25)
$3.36¢1 679
1
#17
90301-MJF-A01
NUT, U (18MM)
$11.27¢5 635
1
#18
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#19
90401-MAS-000
WASHER (20X31.5X2)
$3.58¢1 788
1
#20
91051-MGS-D31
BEARING, ANGULAR BALL (22X50X15)
$40.69¢20 344
1
#21
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
1
#22
91251-MGS-D31
DUST SEAL (30X50X7)
$13.73¢6 865
1
#23
91253-MAE-003
DUST SEAL (30X47X7.5)
$17.03¢8 516
1
#24
91351-MGS-D30
O-RING (55X2)
$3.36¢1 679
1
