SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

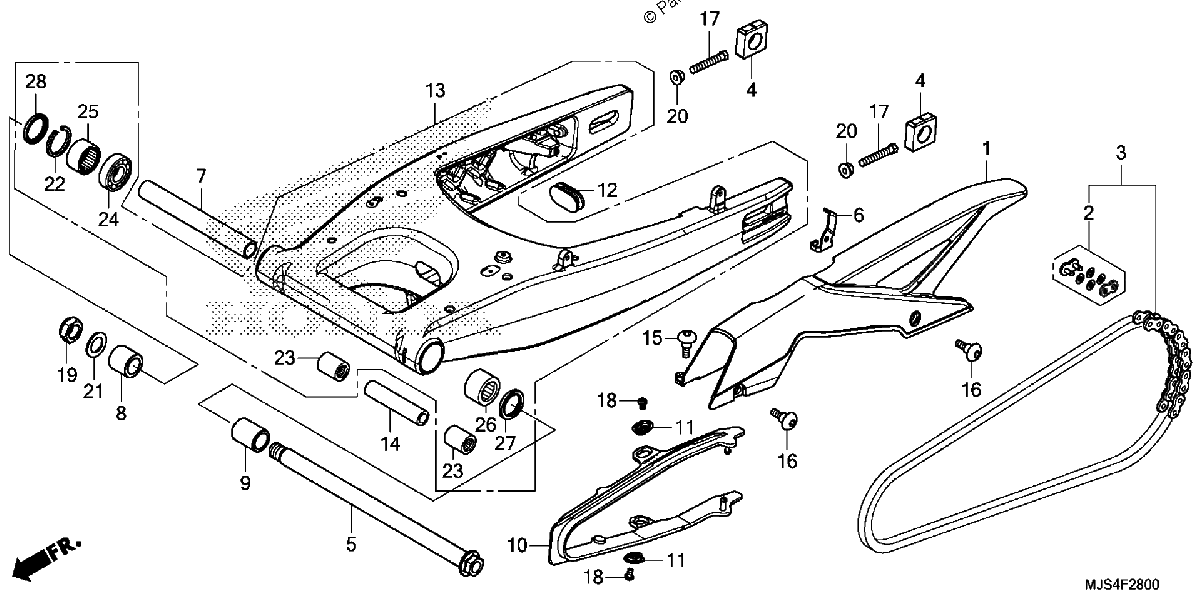

Diagrama de SWINGARM

Repuestos

#1
40510-MJL-D70
CASE, DRIVE CHAIN
$130.74¢65 369
1
#2
40531-MJF-A02
MASTER LINK (RK EXCEL)
$17.02¢8 513
1
#2
40545-MGS-D31
MASTER LINK (DAIDO)
$17.30¢8 650
1
#3
40540-MGS-D31
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
$297.69¢148 844
1
#3
40540-MJF-A02
CHAIN, DRIVE (RK520KHO-120LJFZ) (RK JAPAN) (STANDARD LINK 112L) (STANDARD LINK 114L)
$293.24¢146 619
1
#4
42305-MJL-D70
COLLAR, RR. AXLE
$28.30¢14 150
1
#5
52101-MJS-J70
BOLT, SWINGARM PIVOT
$50.74¢25 369
1
#6
52121-MJL-D70
STAY, CHAIN CASE
$10.09¢5 044
1
#7
52141-MJS-J70
COLLAR, CENTER PIVOT DISTANCE
$50.94¢25 469
1
#8
52142-MGS-D10
COLLAR, R. PIVOT DISTANCE
$24.00¢12 000
1
#9
52143-MGS-D10
COLLAR, L PIVOT DISTANCE
$25.90¢12 950
1
#10
52170-MJL-D70
SLIDER, CHAIN
$63.84¢31 919
1
#11
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#12
52175-MJL-D70
CAP, RR. SWINGARM
$7.63¢3 813
1
#13
52200-MJS-J70
SWINGARM SUB-ASSY., RR.
$1506.00¢753 000
1
#14
52463-MGS-D10
COLLAR B, CUSHION ARM
$15.06¢7 531
1
#15
90106-KBV-000
SCREW, PAN (6X14)
$4.74¢2 369
1
#16
90106-KWT-900
SCREW, SPECIAL (6MM)
$4.24¢2 119
1
#17
90106-MCF-D00
BOLT, HEX. (8X50)
$3.11¢1 556
1
#18
90115-KV3-700
SCREW, PAN (5X8)
$3.36¢1 681
1
#19
90301-MJF-A01
NUT, U (18MM)
$12.25¢6 125
1
#20
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#21
90401-MAS-000
WASHER (20X31.5X2)
$3.89¢1 944
1
#22
90651-MEW-920
CIRCLIP (INNER) (37)
$4.04¢2 019
1
#23
91052-MGS-D31
BEARING, NEEDLE (17X24X30)
$11.44¢5 719
1
#24
91054-MGS-D31
BEARING, RADIAL BALL (20X37X9)
$12.89¢6 444
1
#25
91055-MGS-D31
BEARING, NEEDLE (30X37X20)
$24.74¢12 369
1
#26
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#27
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#28
91253-KZ3-861
DUST SEAL (30X37X4)
$10.15¢5 075
1
