STARTING MOTOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

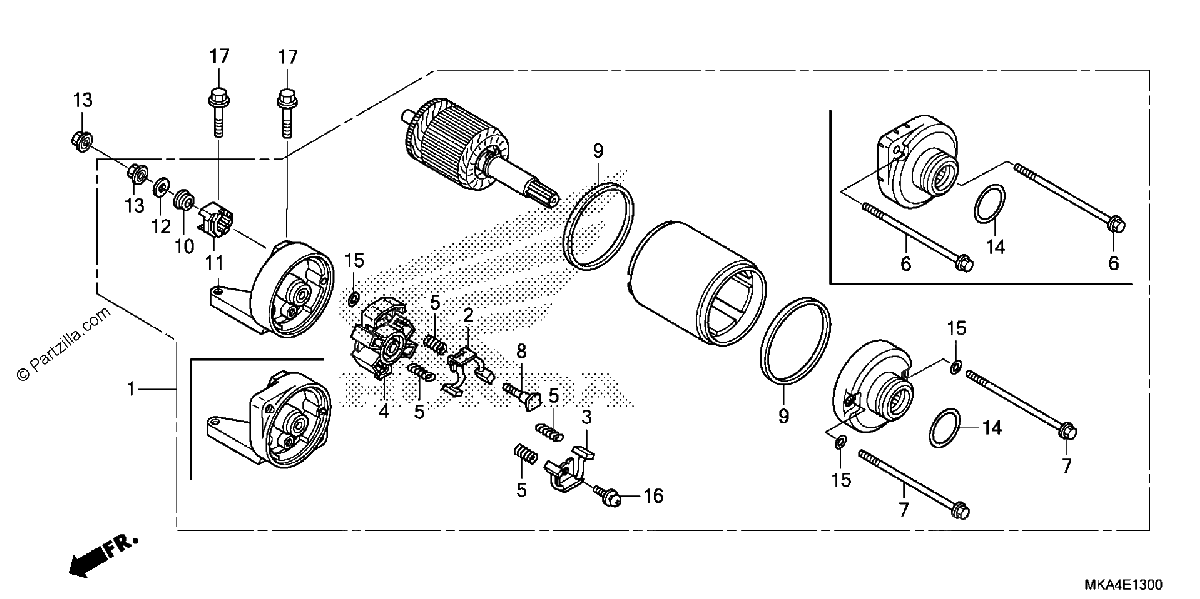

Diagrama de STARTING MOTOR

Repuestos

#001
31200-MGS-D21
STARTER MOTOR ASSY.
$841.99¢420 994
1
#1
31200-MGS-D21
STARTER MOTOR ASSY.
$841.99¢420 994
1
#2
31201-MEW-921
BRUSH SET A, CARBON
$9.44¢4 719
1
#002
31201-MEW-921
BRUSH SET A, CARBON
$9.44¢4 719
1
#3
31202-MEW-921
BRUSH SET B, CARBON
$15.20¢7 600
1
#003
31202-MEW-921
BRUSH SET B, CARBON
$15.20¢7 600
1
#4
31203-MEW-921
HOLDER, BRUSH
$9.07¢4 538
1
#004
31203-MEW-921
HOLDER, BRUSH
$9.07¢4 538
1
#005
31204-MEW-921
SPRING, CARBON BRUSH
$14.76¢7 381
1
#5
31204-MEW-921
SPRING, CARBON BRUSH
$14.76¢7 381
1
#007
31205-MEW-921
BOLT, SETTING
$12.56¢6 281
1
#7
31205-MEW-921
BOLT, SETTING
$12.56¢6 281
1
#008
31206-MEW-921
BOLT, TERMINAL
$3.65¢1 825
1
#8
31206-MEW-921
BOLT, TERMINAL
$3.65¢1 825
1
#9
31207-KS5-901
RING
$3.77¢1 888
1
#009
31207-KS5-901
RING
$3.77¢1 888
1
#10
31208-MEW-921
INSULATOR
$9.86¢4 931
1
#010
31208-MEW-921
INSULATOR
$9.86¢4 931
1
#011
31209-MEW-921
STOPPER, TERMINAL
$14.63¢7 313
1
#11
31209-MEW-921
STOPPER, TERMINAL
$14.63¢7 313
1
#012
31210-MEW-921
WASHER
$2.34¢1 169
1
#12
31210-MEW-921
WASHER
$2.34¢1 169
1
#013
90071-MB0-000
NUT-WASHER (6MM)
$2.66¢1 331
1
#13
90071-MB0-000
NUT-WASHER (6MM)
$2.66¢1 331
1
#014
91312-MG7-003
O-RING (24.4X3.1)
$7.56¢3 781
1
#14
91309-425-003
O-RING (24.4X3.1) (ARAI)
$7.56¢3 781
1
#14
91312-MG7-003
O-RING (24.4X3.1)
$7.56¢3 781
1
#014
91309-425-003
O-RING (24.4X3.1) (ARAI)
$7.56¢3 781
1
#15
91320-MB0-000
O-RING (4X2)
$3.11¢1 556
1
#015
91320-MB0-000
O-RING (4X2)
$3.11¢1 556
1
#016
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#16
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#017
95801-06025-00
BOLT, FLANGE (6X25)
$1.39¢694
1
#17
95801-06025-00
BOLT, FLANGE (6X25)
$1.39¢694
1
