MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

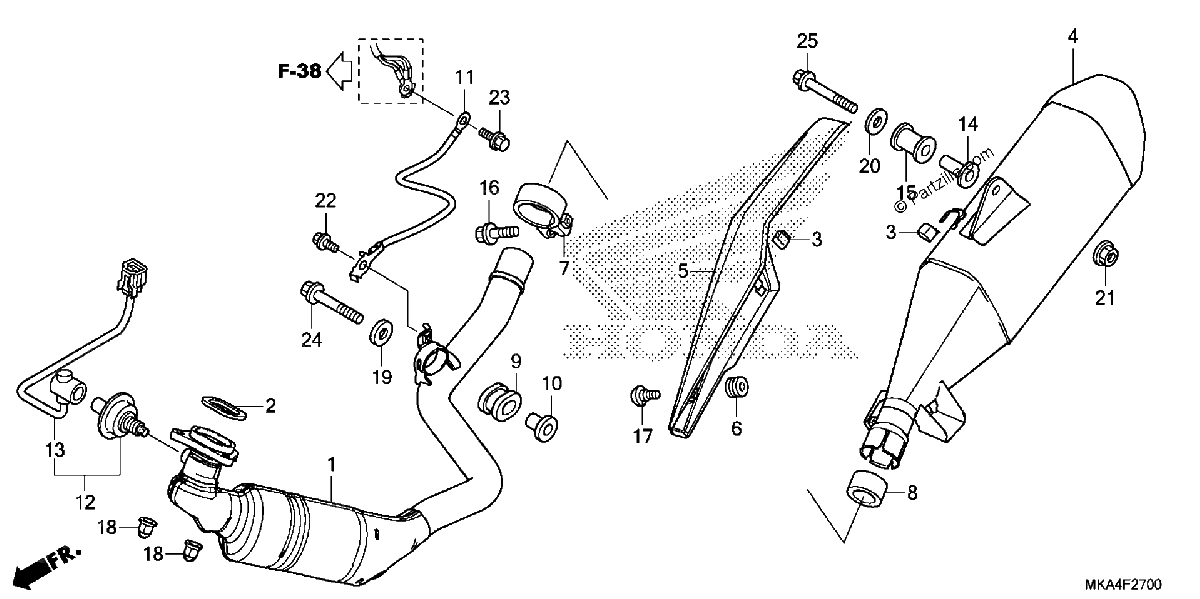

Diagrama de MUFFLER

Repuestos

#1
18150-MGS-D34
PIPE, EX.
$1242.36¢621 181
1
#001
18150-MGS-D34
PIPE, EX.
$1242.36¢621 181
1
#2
18291-MGS-D31
GASKET, EX PIPE
$14.57¢7 288
1
#002
18291-MGS-D31
GASKET, EX PIPE
$14.57¢7 288
1
#3
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#003
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#4
18310-MKA-A31
MUFFLER
$650.58¢325 288
1
#004
18310-MKA-A31
MUFFLER
$650.58¢325 288
1
#5
18342-MKA-D81
COVER, MUFFLER
$92.97¢46 488
1
#005
18342-MKA-D81
COVER, MUFFLER
$92.97¢46 488
1
#006
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#6
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#7
18373-413-000
BAND, R. FR. MUFFLER
$50.13¢25 063
1
#007
18373-413-000
BAND, R. FR. MUFFLER
$50.13¢25 063
1
#008
18392-MK4-000
GASKET, MUFFLER
$15.97¢7 988
1
#8
18392-MK4-000
GASKET, MUFFLER
$15.97¢7 988
1
#9
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$23.79¢11 894
1
#009
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$23.79¢11 894
1
#10
18423-MGS-D30
COLLAR, EX. PIPE MOUNTING
$9.90¢4 950
1
#010
18423-MGS-D30
COLLAR, EX. PIPE MOUNTING
$9.90¢4 950
1
#11
32200-MGS-D30
SUB-HARNESS, OXYGEN SENSOR GROUND
$11.15¢5 575
1
#011
32200-MGS-D30
SUB-HARNESS, OXYGEN SENSOR GROUND
$11.15¢5 575
1
#12
36532-MGS-D31
SENSOR, OXYGEN
$365.42¢182 712
1
#012
36532-MGS-D31
SENSOR, OXYGEN
$365.42¢182 712
1
#13
36533-MGS-D31
WIRE, OXYGEN SENSOR
$73.38¢36 688
1
#013
36533-MGS-D31
WIRE, OXYGEN SENSOR
$73.38¢36 688
1
#14
50607-KK6-000
COLLAR, MOUNTING RUBBER
$10.67¢5 337
1
#014
50607-KK6-000
COLLAR, MOUNTING RUBBER
$10.67¢5 337
1
#15
50608-KV0-000
RUBBER, MUFFLER MOUNTING
$7.55¢3 775
1
#015
50608-KV0-000
RUBBER, MUFFLER MOUNTING
$7.55¢3 775
1
#16
90103-KCM-620
BOLT, FLANGE (8X35)
$2.03¢1 013
1
#016
90103-KCM-620
BOLT, FLANGE (8X35)
$2.03¢1 013
1
#017
90113-GFP-B00
SCREW, PAN (6X12)
$4.34¢2 169
1
#17
90113-GFP-B00
SCREW, PAN (6X12)
$4.34¢2 169
1
#18
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#018
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#19
90501-819-000
WASHER (8MM)
$1.84¢919
1
#019
90501-819-000
WASHER (8MM)
$1.84¢919
1
#20
90534-MV4-000
WASHER (8.5X28)
$3.65¢1 825
1
#020
90534-MV4-000
WASHER (8.5X28)
$3.65¢1 825
1
#021
94050-08080
NUT, FLANGE (8MM)
$1.15¢575
1
#21
94050-08080
NUT, FLANGE (8MM)
$1.15¢575
1
#022
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#22
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#023
95701-06014-07
BOLT, FLANGE (6X14)
$1.77¢888
1
#23
95701-06014-07
BOLT, FLANGE (6X14)
$1.77¢888
1
#24
96300-08045-04
BOLT, FLANGE (8X45)
$1.95¢975
1
#024
96300-08045-04
BOLT, FLANGE (8X45)
$1.95¢975
1
#025
96300-08050-04
BOLT, FLANGE (8X50)
$2.30¢1 150
1
#25
96300-08050-04
BOLT, FLANGE (8X50)
$2.30¢1 150
1
