TRANSMISSION COUNTERSHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

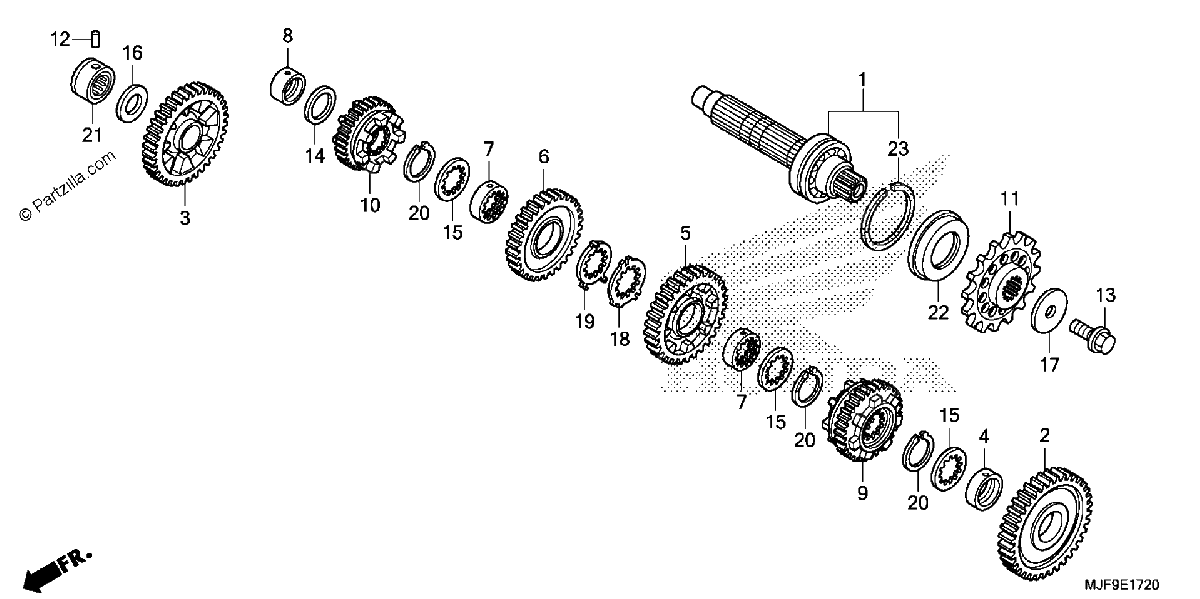

Diagrama de TRANSMISSION COUNTERSHAFT

Repuestos

#1
23220-MGS-D20
COUNTERSHAFT
$333.32¢166 658
1
#001
23220-MGS-D20
COUNTERSHAFT
$333.32¢166 658
1
#2
23421-MGS-D20
GEAR, COUNTERSHAFT FIRST (40T)
$212.36¢106 179
1
#002
23421-MGS-D20
GEAR, COUNTERSHAFT FIRST (40T)
$212.36¢106 179
1
#3
23441-MGS-D20
GEAR, COUNTERSHAFT SECOND (40T)
$179.22¢89 608
1
#003
23441-MGS-D20
GEAR, COUNTERSHAFT SECOND (40T)
$179.22¢89 608
1
#004
23442-ML7-000
COLLAR (28MM)
$33.09¢16 543
1
#4
23442-ML7-000
COLLAR (28MM)
$33.09¢16 543
1
#5
23461-MGS-D20
GEAR, COUNTERSHAFT THIRD (32T)
$118.56¢59 282
1
#005
23461-MGS-D20
GEAR, COUNTERSHAFT THIRD (32T)
$118.56¢59 282
1
#6
23481-MGS-D20
GEAR, COUNTERSHAFT FOURTH (30T)
$107.59¢53 797
1
#006
23481-MGS-D20
GEAR, COUNTERSHAFT FOURTH (30T)
$107.59¢53 797
1
#7
23482-MV9-670
COLLAR, SPLINE (28X31X9)
$22.71¢11 356
1
#007
23482-MV9-670
COLLAR, SPLINE (28X31X9)
$22.71¢11 356
1
#008
23495-KY1-000
COLLAR (22X13)
$24.75¢12 374
1
#8
23495-KY1-000
COLLAR (22X13)
$24.75¢12 374
1
#009
23501-MGS-D20
GEAR, COUNTERSHAFT FIFTH (31T)
$212.36¢106 179
1
#9
23501-MGS-D20
GEAR, COUNTERSHAFT FIFTH (31T)
$212.36¢106 179
1
#010
23521-MGS-D20
GEAR, COUNTERSHAFT SIXTH (31T)
$184.79¢92 397
1
#10
23521-MGS-D20
GEAR, COUNTERSHAFT SIXTH (31T)
$184.79¢92 397
1
#011
23801-MGS-D30
SPROCKET, DRIVE (16T)
$68.36¢34 178
1
#11
23801-MGS-D30
SPROCKET, DRIVE (16T)
$68.36¢34 178
1
#12
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#012
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#013
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#13
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#014
90452-KZ4-000
WASHER, THRUST (22X30X1)
$5.63¢2 818
1
#14
90452-KZ4-000
WASHER, THRUST (22X30X1)
$5.63¢2 818
1
#015
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#15
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#016
90458-292-000
WASHER, THRUST (20MM)
$3.96¢1 978
1
#16
90458-292-000
WASHER, THRUST (20MM)
$3.96¢1 978
1
#017
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#17
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#018
90463-MR7-000
WASHER, SPLINE (28MM)
$12.52¢6 262
1
#18
90463-MR7-000
WASHER, SPLINE (28MM)
$12.52¢6 262
1
#019
90464-MR7-000
WASHER, LOCK (28MM)
$12.52¢6 262
1
#19
90464-MR7-000
WASHER, LOCK (28MM)
$12.52¢6 262
1
#20
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#020
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#21
91022-KT7-003
BEARING, NEEDLE (20MM) (NTN)
$51.77¢25 886
1
#021
91022-KT7-003
BEARING, NEEDLE (20MM) (NTN)
$51.77¢25 886
1
#021
91022-MJE-DB1
BEARING, NEEDLE (20MM) (NTN)
$51.77¢25 886
1
#22
91207-KT8-003
OIL SEAL (34X62X8)
$13.65¢6 825
1
#022
91207-KT8-003
OIL SEAL (34X62X8)
$13.65¢6 825
1
#23
94560-62200
RING, SNAP (62MM)
$3.92¢1 961
1
#023
94560-62200
RING, SNAP (62MM)
$3.92¢1 961
1
