TURN SIGNAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

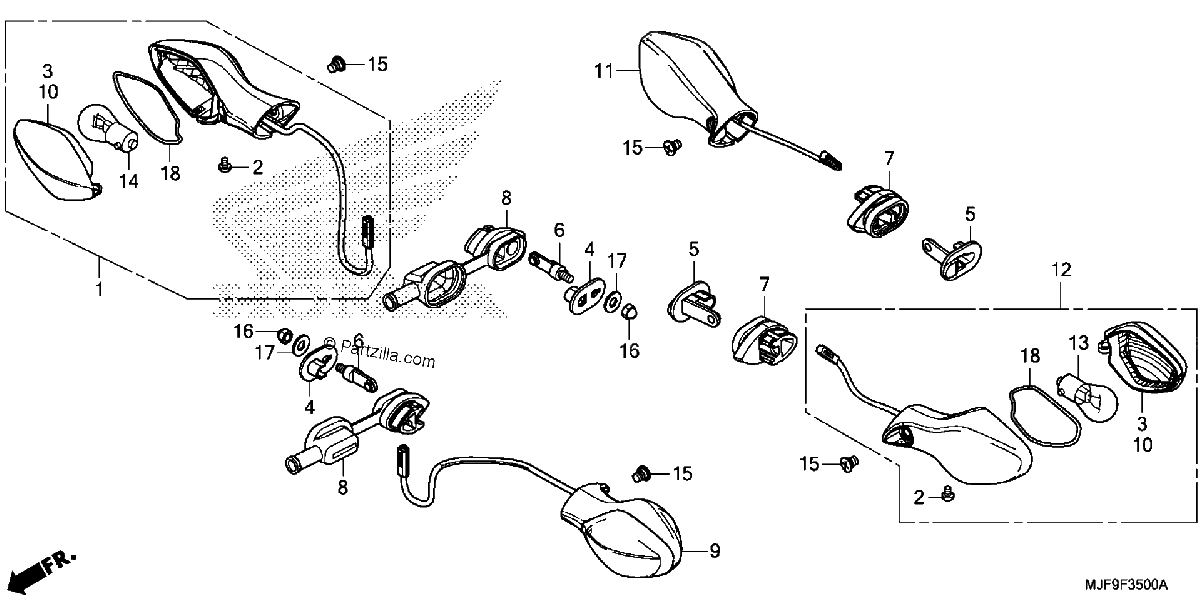

Diagrama de TURN SIGNAL

Repuestos

#001
33400-MJF-316
TURN SIGNAL ASSY., R. FR. (P21/5W) (COO)
$15.19¢7 596
1
#001
33400-MJF-326
WINKER Assembly Right Front
$15.19¢7 596
1
#1
33400-MJF-316
TURN SIGNAL ASSY., R. FR. (P21/5W) (COO)
$15.19¢7 596
1
#2
33402-MGS-D31
SCREW, SPECIAL (4X10)
$1.30¢650
1
#002
33402-MGS-D31
SCREW, SPECIAL (4X10)
$1.30¢650
1
#3
33404-MGS-J32
LENS, Right TURN SIGNAL (Right Front./L Rear.)
$3.36¢1 679
1
#003
33404-MGS-J32
LENS, Right TURN SIGNAL (Right Front./L Rear.)
$3.36¢1 679
1
#004
33411-MGZ-J00
PLATE, TURN SIGNAL
$1.66¢828
1
#4
33411-MGZ-J00
PLATE, TURN SIGNAL
$1.66¢828
1
#5
33412-MGS-D30
STAY, TURN SIGNAL
$8.60¢4 301
1
#005
33412-MGS-D30
STAY, TURN SIGNAL
$8.60¢4 301
1
#6
33412-MGZ-J00
STAY, TURN SIGNAL
$18.62¢9 309
1
#006
33412-MGZ-J00
STAY, TURN SIGNAL
$18.62¢9 309
1
#7
33413-MGS-D30
RUBBER, TURN SIGNAL MOUNTING
$6.47¢3 237
1
#007
33413-MGS-D30
RUBBER, TURN SIGNAL MOUNTING
$6.47¢3 237
1
#8
33413-MGZ-J00
RUBBER, TURN SIGNAL MOUNTING
$9.19¢4 594
1
#008
33413-MGZ-J00
RUBBER, TURN SIGNAL MOUNTING
$9.19¢4 594
1
#009
33450-MJF-326
WINKER Assembly L Front
$111.06¢55 528
1
#9
33450-MJF-316
TURN SIGNAL Assembly., L Front. (P21/5W) (COO)
$111.06¢55 528
1
#009
33450-MJF-316
TURN SIGNAL Assembly., L Front. (P21/5W) (COO)
$111.06¢55 528
1
#10
33454-MGS-J32
LENS, L. TURN SIGNAL
$3.36¢1 679
1
#010
33454-MGS-J32
LENS, L. TURN SIGNAL
$3.36¢1 679
1
#11
33600-MJF-315
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$16.42¢8 211
1
#011
33600-MJF-315
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$16.42¢8 211
1
#011
33600-MJF-325
WINKER Assembly Right Rear
$16.42¢8 211
1
#12
33650-MJF-315
TURN SIGNAL Assembly., L Rear. (12V 21W) (COO)
$13.97¢6 986
1
#012
33650-MJF-315
TURN SIGNAL Assembly., L Rear. (12V 21W) (COO)
$13.97¢6 986
1
#012
33650-MJF-325
WINKER Assembly L Rear
$13.97¢6 986
1
#13
34904-MGZ-J01
BULB, TURN SIGNAL LIGHT (P21W)(LIFE ELEX)
$19.03¢9 516
1
#013
34904-MGZ-J01
BULB, TURN SIGNAL LIGHT (P21W)(LIFE ELEX)
$19.03¢9 516
1
#14
34906-MGZ-J01
BULB, TAILLIGHT (P21/5W) (LIFE ELEX)
$7.47¢3 738
1
#014
34906-MGZ-J01
BULB, TAILLIGHT (P21/5W) (LIFE ELEX)
$7.47¢3 738
1
#15
90380-MGS-D30
SCREW, SPECIAL (6X8)
$3.91¢1 955
1
#015
90380-MGS-D30
SCREW, SPECIAL (6X8)
$3.91¢1 955
1
#16
94022-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#16
94021-06000-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#016
94021-06000-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#16
94021-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#016
94021-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#16
94021-06020-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#016
94021-06020-0S
NUT, CAP (6MM)
$2.15¢1 075
1
#016
94022-06020
NUT, CAP (6MM)
$2.15¢1 075
1
#017
94101-06700
WASHER, PLAIN (6MM)
$1.12¢558
1
#17
94101-06700
WASHER, PLAIN (6MM)
$1.12¢558
1
#018
33405-MKA-D81
SEAL, GASKET
$0.64¢322
1
#18
33405-MKA-D81
SEAL, GASKET
$0.64¢322
1
