FRONT BRAKE CALIPER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

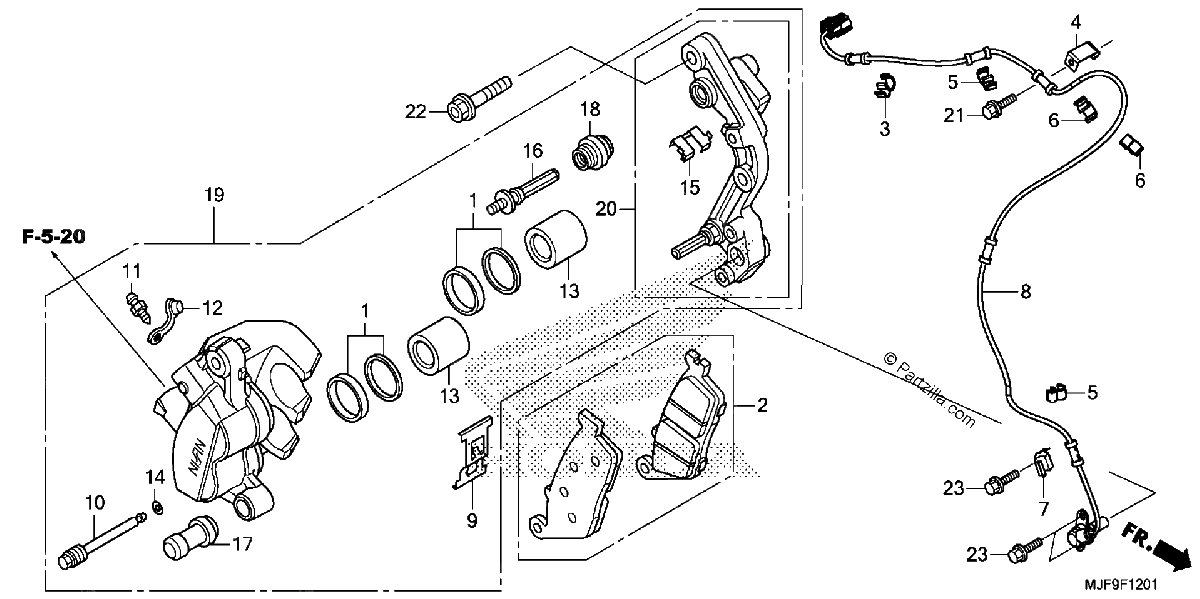

Diagrama de FRONT BRAKE CALIPER 2

Repuestos

#001
06431-MA3-405
SEAL SET, PISTON
$8.18¢4 088
1
#1
06431-MA3-405
SEAL SET, PISTON
$8.18¢4 088
1
#002
06455-MGS-D32
PAD SET, FR.
$53.99¢26 996
1
#2
06455-MGS-D32
PAD SET, FR.
$53.99¢26 996
1
#3
11152-KS4-003
CLAMP, PIPE
$7.95¢3 973
1
#003
11152-KS4-003
CLAMP, PIPE
$7.95¢3 973
1
#4
38514-MJF-C10
CLAMP, SENSOR WIRE
$4.45¢2 225
1
#004
38514-MJF-C10
CLAMP, SENSOR WIRE
$4.45¢2 225
1
#5
38516-MGE-003
CLAMP, ABS WIRE (D8.5)
$3.68¢1 840
1
#005
38516-MGE-003
CLAMP, ABS WIRE (D8.5)
$3.68¢1 840
1
#006
38517-MGE-003
CLAMP, ABS WIRE (D12)
$3.22¢1 610
1
#6
38517-MGE-003
CLAMP, ABS WIRE (D12)
$3.22¢1 610
1
#007
38517-MGS-D80
CLAMP, SENSOR WIRE
$6.11¢3 053
1
#7
38517-MGS-D80
CLAMP, SENSOR WIRE
$6.11¢3 053
1
#008
38520-MJF-C11
SENSOR, Front WHEEL SPEED
$267.27¢133 636
1
#8
38520-MJF-C11
SENSOR, Front WHEEL SPEED
$267.27¢133 636
1
#009
43108-MCT-006
SPRING, PAD
$5.49¢2 743
1
#9
43108-MCT-006
SPRING, PAD
$5.49¢2 743
1
#010
43215-KZ4-J41
PIN, HANGER
$5.86¢2 932
1
#10
43215-KZ4-J41
PIN, HANGER
$5.86¢2 932
1
#011
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#11
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#012
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#12
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#13
45107-ML4-006
PISTON
$40.45¢20 223
1
#013
45107-ML4-006
PISTON
$40.45¢20 223
1
#14
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#014
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#15
45112-ML7-921
RETAINER
$6.08¢3 042
1
#015
45112-ML7-921
RETAINER
$6.08¢3 042
1
#016
45131-ML7-921
BOLT A, PIN
$16.50¢8 251
1
#16
45131-ML7-921
BOLT A, PIN
$16.50¢8 251
1
#017
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.08¢3 042
1
#17
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.08¢3 042
1
#018
45133-MA3-006
BOOT B
$6.08¢3 042
1
#18
45133-MA3-006
BOOT B
$6.08¢3 042
1
#019
45250-MGZ-J11
CALIPER SUB-Assembly., Right Front. (NISSIN)
$209.13¢104 564
1
#19
45250-MGZ-J11
CALIPER SUB-Assembly., Right Front. (NISSIN)
$209.13¢104 564
1
#20
45290-MGZ-J11
BRACKET SUB-Assembly., Right Front.
$59.10¢29 549
1
#020
45290-MGZ-J11
BRACKET SUB-Assembly., Right Front.
$59.10¢29 549
1
#021
90112-MEL-000
BOLT, FLANGE (6X18)
$2.09¢1 047
1
#21
90112-MEL-000
BOLT, FLANGE (6X18)
$2.09¢1 047
1
#022
90131-KBV-003
BOLT, FLANGE (8X32) (SAGA)
$5.30¢2 651
1
#22
90131-KBV-003
BOLT, FLANGE (8X32) (SAGA)
$5.30¢2 651
1
#023
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
#23
96001-06016-07
BOLT, FLANGE (6X16)
$1.24¢621
1
