TRANSMISSION 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

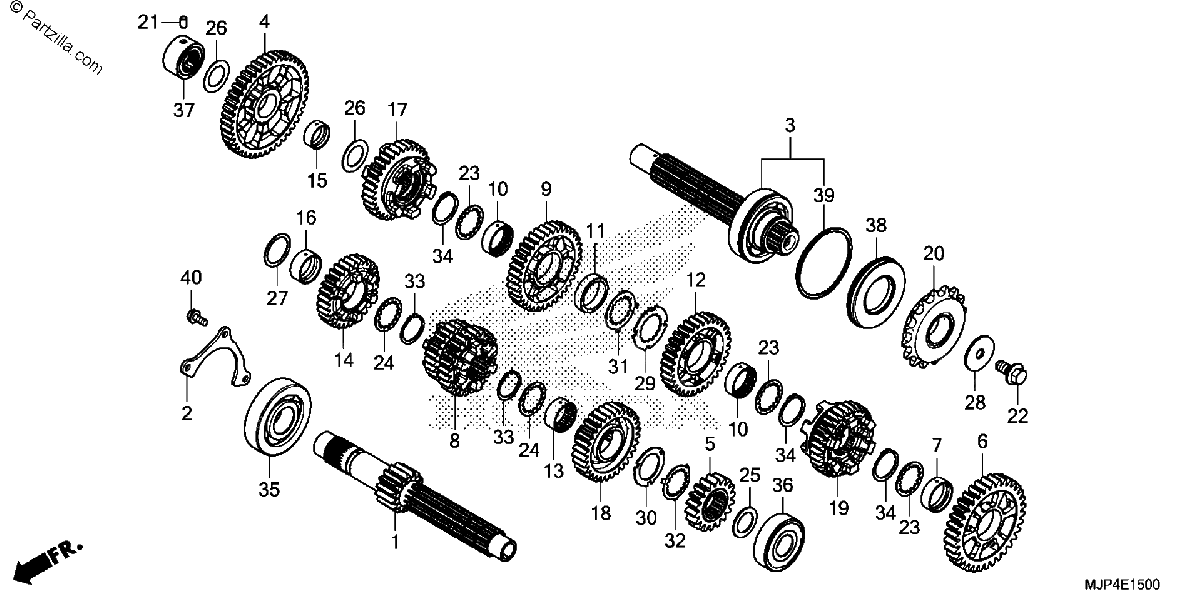

Diagrama de TRANSMISSION 1

Repuestos

#1
23211-MJP-G50
MAINSHAFT (15T)
$199.92¢99 958
1
#001
23211-MJP-G50
MAINSHAFT (15T)
$199.92¢99 958
1
#2
23213-HL4-000
PLATE, BEARING SETTING
$6.66¢3 329
1
#002
23213-HL4-000
PLATE, BEARING SETTING
$6.66¢3 329
1
#003
23220-MJP-G50
COUNTERSHAFT
$214.76¢107 381
1
#3
23220-MJP-G50
COUNTERSHAFT
$214.76¢107 381
1
#004
23421-MJP-G50
GEAR, COUNTER FIRST (43T)
$145.29¢72 646
1
#4
23421-MJP-G50
GEAR, COUNTER FIRST (43T)
$145.29¢72 646
1
#5
23431-MJP-G50
GEAR, MAINSHAFT SECOND (18T)
$67.40¢33 701
1
#005
23431-MJP-G50
GEAR, MAINSHAFT SECOND (18T)
$67.40¢33 701
1
#6
23441-MJP-G50
GEAR, COUNTERSHAFT SECOND (34T)
$133.57¢66 786
1
#006
23441-MJP-G50
GEAR, COUNTERSHAFT SECOND (34T)
$133.57¢66 786
1
#007
23442-MS2-610
COLLAR (30X11.2)
$28.11¢14 053
1
#7
23442-MS2-610
COLLAR (30X11.2)
$28.11¢14 053
1
#008
23451-MJP-G50
GEAR, MAINSHAFT THIRD FOURTH (25T/26T)
$166.83¢83 415
1
#8
23451-MJP-G50
GEAR, MAINSHAFT THIRD FOURTH (25T/26T)
$166.83¢83 415
1
#9
23461-MJP-G50
GEAR, COUNTER THIRD (37T)
$138.86¢69 431
1
#009
23461-MJP-G50
GEAR, COUNTER THIRD (37T)
$138.86¢69 431
1
#10
23462-MAT-000
COLLAR, SPLINE (30X11)
$27.24¢13 622
1
#010
23462-MAT-000
COLLAR, SPLINE (30X11)
$27.24¢13 622
1
#011
23463-MJP-G50
COLLAR (30X36X9.4)
$6.88¢3 439
1
#11
23463-MJP-G50
COLLAR (30X36X9.4)
$6.88¢3 439
1
#12
23481-MJP-G50
GEAR, COUNTER FOURTH (32T)
$133.57¢66 786
1
#012
23481-MJP-G50
GEAR, COUNTER FOURTH (32T)
$133.57¢66 786
1
#13
23482-MR7-000
COLLAR, SPLINE (28X13.5)
$36.63¢18 314
1
#013
23482-MR7-000
COLLAR, SPLINE (28X13.5)
$36.63¢18 314
1
#014
23491-MJP-G50
GEAR, MAINSHAFT FIFTH (30T)
$135.61¢67 804
1
#14
23491-MJP-G50
GEAR, MAINSHAFT FIFTH (30T)
$135.61¢67 804
1
#015
23495-KY1-000
COLLAR (22X13)
$24.75¢12 374
1
#15
23495-KY1-000
COLLAR (22X13)
$24.75¢12 374
1
#016
23495-MM5-000
COLLAR (28X13)
$27.24¢13 622
1
#16
23495-MM5-000
COLLAR (28X13)
$27.24¢13 622
1
#17
23501-MJP-G50
GEAR, COUNTERSHAFT FIFTH (33T)
$149.63¢74 813
1
#017
23501-MJP-G50
GEAR, COUNTERSHAFT FIFTH (33T)
$149.63¢74 813
1
#018
23511-MJP-G50
GEAR, MAINSHAFT SIXTH (32T)
$135.61¢67 804
1
#18
23511-MJP-G50
GEAR, MAINSHAFT SIXTH (32T)
$135.61¢67 804
1
#019
23521-MJP-G50
GEAR, COUNTERSHAFT SIXTH (31T)
$149.63¢74 813
1
#19
23521-MJP-G50
GEAR, COUNTERSHAFT SIXTH (31T)
$149.63¢74 813
1
#020
23801-MEE-D00
SPROCKET, DRIVE (16T)
$62.12¢31 062
1
#20
23801-MEE-D00
SPROCKET, DRIVE (16T)
$62.12¢31 062
1
#21
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#021
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#022
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#22
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#23
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
1
#023
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
1
#024
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#24
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#025
90453-KSR-A00
WASHER (22X32X1.5)
$3.01¢1 507
1
#25
90453-KSR-A00
WASHER (22X32X1.5)
$3.01¢1 507
1
#026
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
1
#26
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
1
#027
90458-729-920
WASHER, THRUST (28MM)
$6.34¢3 168
1
#27
90458-729-920
WASHER, THRUST (28MM)
$6.34¢3 168
1
#28
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#028
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#029
90463-MAT-000
WASHER, SPLINE (30MM)
$5.40¢2 702
1
#29
90463-MAT-000
WASHER, SPLINE (30MM)
$5.40¢2 702
1
#30
90463-MCJ-000
WASHER, SPLINE (28MM)
$6.58¢3 289
1
#030
90463-MCJ-000
WASHER, SPLINE (28MM)
$6.58¢3 289
1
#31
90464-MAT-000
WASHER, LOCK (30MM)
$7.96¢3 979
1
#031
90464-MAT-000
WASHER, LOCK (30MM)
$7.96¢3 979
1
#032
90464-MCJ-000
WASHER, LOCK (28MM)
$6.58¢3 289
1
#32
90464-MCJ-000
WASHER, LOCK (28MM)
$6.58¢3 289
1
#033
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#33
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#034
90604-MM5-000
CIRCLIP (30MM)
$4.99¢2 496
1
#34
90604-MM5-000
CIRCLIP (30MM)
$4.99¢2 496
1
#35
91001-MJP-G51
BEARING, SPECIAL BALL (28X76X18)
$71.47¢35 736
1
#035
91001-MJP-G51
BEARING, SPECIAL BALL (28X76X18)
$71.47¢35 736
1
#036
91002-MCH-003
BEARING, RADIAL BALL (63/22U) (KOYO)
$32.59¢16 295
1
#36
91002-MCH-003
BEARING, RADIAL BALL (63/22U) (KOYO)
$32.59¢16 295
1
#37
91023-MM5-641
BEARING, NEEDLE (22MM)
$28.90¢14 450
1
#037
91023-MM5-641
BEARING, NEEDLE (22MM)
$28.90¢14 450
1
#038
91207-MBB-003
OIL SEAL (39X72X8)
$13.68¢6 842
1
#38
91207-MBB-003
OIL SEAL (39X72X8)
$13.68¢6 842
1
#038
91207-MBB-013
OIL SEAL (39X72X8)
$13.68¢6 842
1
#39
94560-72200
RING, SNAP (72MM)
$4.43¢2 214
1
#039
94560-72200
RING, SNAP (72MM)
$4.43¢2 214
1
#040
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#40
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
