GEARSHIFT DRUM CRF1000A

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

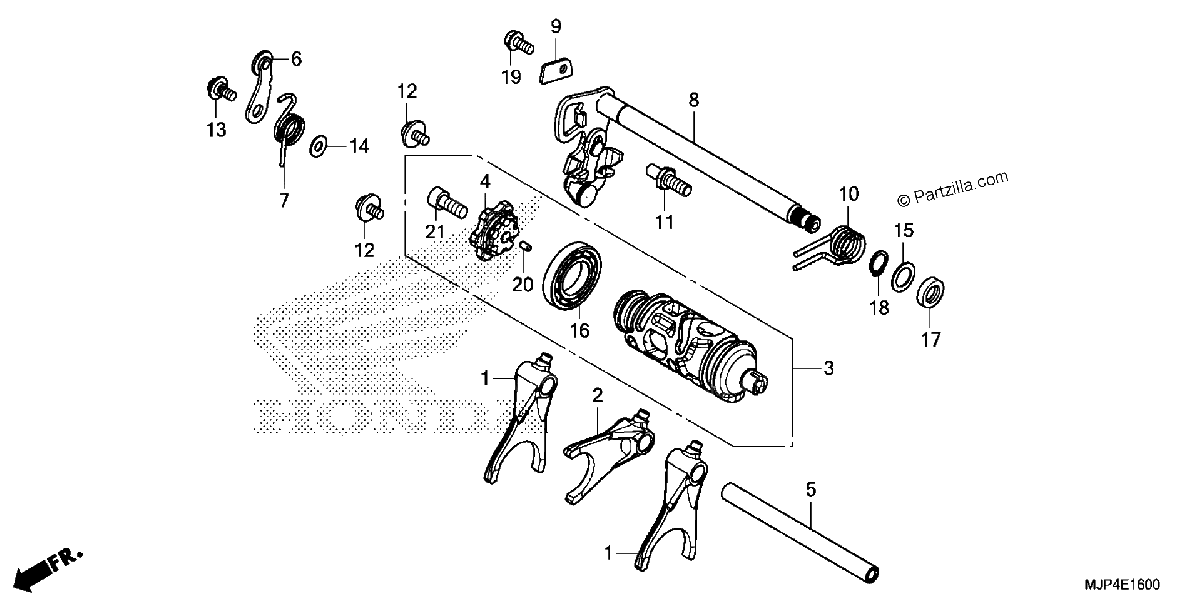

Diagrama de GEARSHIFT DRUM CRF1000A

Repuestos

#1
24211-MJP-G50
FORK, GEARSHIFT
$70.75¢35 374
1
#2
24212-MJP-G50
FORK, CENTER GEARSHIFT
$78.90¢39 451
1
#3
24310-MJP-G50
DRUM, GEARSHIFT
$167.49¢83 743
1
#4
24315-MJP-G50
CENTER, SHIFT DRUM
$42.76¢21 379
1
#5
24325-HL4-000
SHAFT, GEARSHIFT FORK
$22.45¢11 224
1
#6
24430-MJP-G50
STOPPER, GEARSHIFT DRUM
$17.99¢8 993
1
#7
24435-MJP-G50
SPRING, GEARSHIFT DRUM STOPPER
$4.47¢2 237
1
#8
24610-MJP-G50
SPINDLE, GEARSHIFT
$120.81¢60 404
1
#9
24613-MJP-G50
PLATE, SPINDLE SETTING
$3.37¢1 685
1
#10
24651-KR3-000
SPRING, GEARSHIFT RETURN
$6.43¢3 214
1
#11
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.15¢4 577
1
#12
90021-MM5-000
BOLT-WASHER (6X12)
$5.70¢2 852
1
#13
90023-MR5-670
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
$2.75¢1 374
1
#14
90417-360-000
WASHER, DRUM STOPPER
$2.06¢1 029
1
#15
90451-155-000
WASHER (14MM)
$4.22¢2 110
1
#16
91007-MGS-D21
BEARING, RADIAL BALL (25X47X8)
$20.49¢10 247
1
#16
91007-MGS-D31
BEARING, RADIAL BALL (25X47X8)
$20.49¢10 247
1
#17
91203-KK3-830
OIL SEAL (14X22X5)
$4.25¢2 128
1
#18
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#19
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#20
96220-40080
ROLLER (4X8)
$0.60¢299
1
#21
96600-08020-10
BOLT, SOCKET (8X20)
$2.53¢1 265
1
