EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

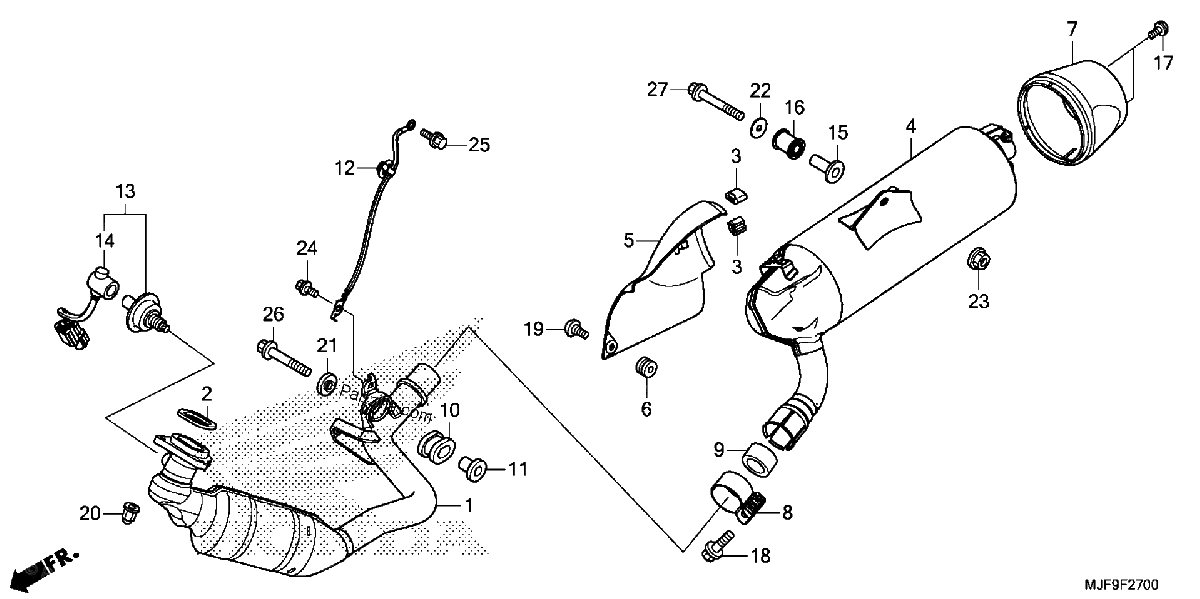

Diagrama de EXHAUST MUFFLER

Repuestos

#1
18150-MJF-A01
PIPE, EX.
$1285.88¢642 942
1
#2
18291-MGS-D31
GASKET, EX PIPE
$13.41¢6 704
1
#3
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#4
18310-MJF-A02
MUFFLER
$723.95¢361 974
1
#5
18342-MJF-A01
COVER, MUFFLER
$62.39¢31 194
1
#6
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.59¢1 294
1
#7
18350-MJF-A00
COVER, MUFFLER END
$204.87¢102 436
1
#8
18376-KG0-003
BAND, MUFFLER
$20.10¢10 051
1
#9
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#10
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$21.88¢10 942
1
#11
18423-MGS-D30
COLLAR, EX. PIPE MOUNTING
$9.11¢4 554
1
#12
32200-MJF-A00
SUB-HARNESS, OXYGEN SENSOR GROUND
$10.64¢5 319
1
#13
36532-MJF-A01
SENSOR, OXYGEN
$316.91¢158 453
1
#14
36533-MJF-A01
WIRE, OXYGEN SENSOR
$78.64¢39 318
1
#15
50607-KK6-000
COLLAR, MOUNTING RUBBER
$9.82¢4 910
1
#16
50608-KK6-000
RUBBER, MUFFLER MOUNTING
$8.69¢4 347
1
#17
90102-MJF-A00
BOLT, SOCKET (6X10)
$3.79¢1 897
1
#18
90103-KCM-620
BOLT, FLANGE (8X35)
$1.86¢932
1
#19
90113-GFP-B00
SCREW, PAN (6X12)
$3.99¢1 995
1
#20
90304-ME1-670
NUT, CAP (8MM)
$6.64¢3 318
1
#21
90501-819-000
WASHER (8MM)
$1.69¢845
1
#22
90534-MV4-000
WASHER (8.5X28)
$3.36¢1 679
1
#23
94050-08080
NUT, FLANGE (8MM)
$1.06¢529
1
#24
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#25
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#26
96300-08045-04
BOLT, FLANGE (8X45)
$1.79¢897
1
#27
96300-08050-04
BOLT, FLANGE (8X50)
$2.12¢1 058
1
