REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

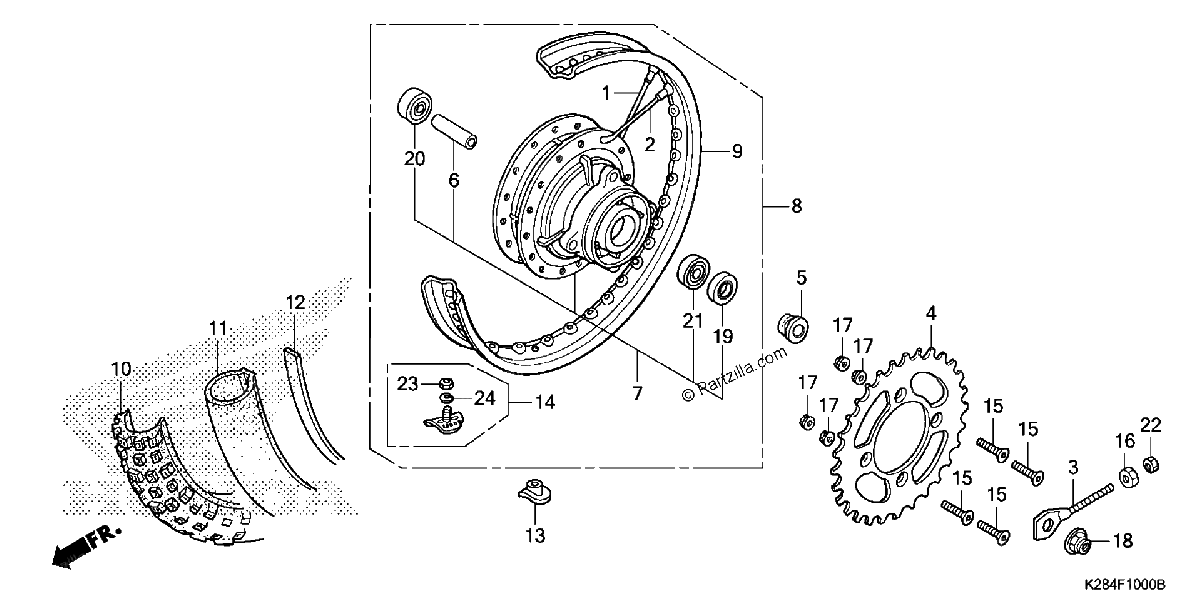

Diagrama de REAR WHEEL

Repuestos

#1
06420-K28-910
SPOKE SET A, FR. (B10X123.5)
$4.19¢2 094
1
#2
06421-K28-910
SPOKE SET B, FR. (B10X123.0)
$4.19¢2 094
1
#3
40543-K28-910
ADJUSTER, CHAIN
$3.71¢1 856
1
#4
41201-K28-910
SPROCKET, FINAL DRIVEN (46T)
$72.64¢36 319
1
#5
42311-K28-910
COLLAR, RR. WHEEL SIDE
$14.92¢7 462
1
#6
42620-KYK-910
COLLAR, RR. AXLE DISTANCE
$12.13¢6 063
1
#7
42635-K28-910
HUB SUB-ASSY., RR.
$299.57¢149 788
1
#8
42650-K28-305
WHEEL SUB-ASSY., RR. (COO)
$442.56¢221 281
1
#9
42701-K28-910
RIM, RR. WHEEL (14X1.85)
$78.49¢39 244
1
#10
42711-K28-911
TIRE, RR. (90/100-14M/C 49M) (CST)
No Disponible
1
#11
42712-K28-911
TUBE, TIRE (90/100-14) (CST)
$35.48¢17 738
1
#12
42713-K28-911
FLAP, TIRE (CST)
$5.94¢2 969
1
#13
42714-KA3-710
CAP, VALVE
$12.15¢6 075
1
#14
42715-KA2-680
STOPPER, BEAD (1.85)
$37.48¢18 738
1
#15
90125-KA4-000
SCREW, FLAT (8X31)
$3.74¢1 869
1
#16
90302-KBP-900
NUT, SPECIAL (6MM)
$2.63¢1 313
1
#17
90303-K28-911
NUT, FLANGE SPECIAL (8MM)
$5.02¢2 512
1
#18
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.65¢1 825
1
#19
90755-GC4-003
DUST SEAL (21X37X5.5) (ARAI)
$6.13¢3 063
1
#19
90755-GC4-005
DUST SEAL (21X37X5.5) (NOK)
$6.13¢3 063
1
#20
91051-K28-911
BEARING, RADIAL BALL (6201UU)
$23.04¢11 519
1
#21
91052-KWW-C51
BEARING, RADIAL BALL (6301UU)
$24.04¢12 019
1
#22
94001-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#22
94001-06200-0S
NUT, HEX. (6MM)
$1.68¢838
1
#23
94001-08000-0S
NUT, HEX. (8MM)
$1.68¢838
1
#24
94111-08000
WASHER, SPRING (8MM)
$1.21¢606
1
