LEFT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

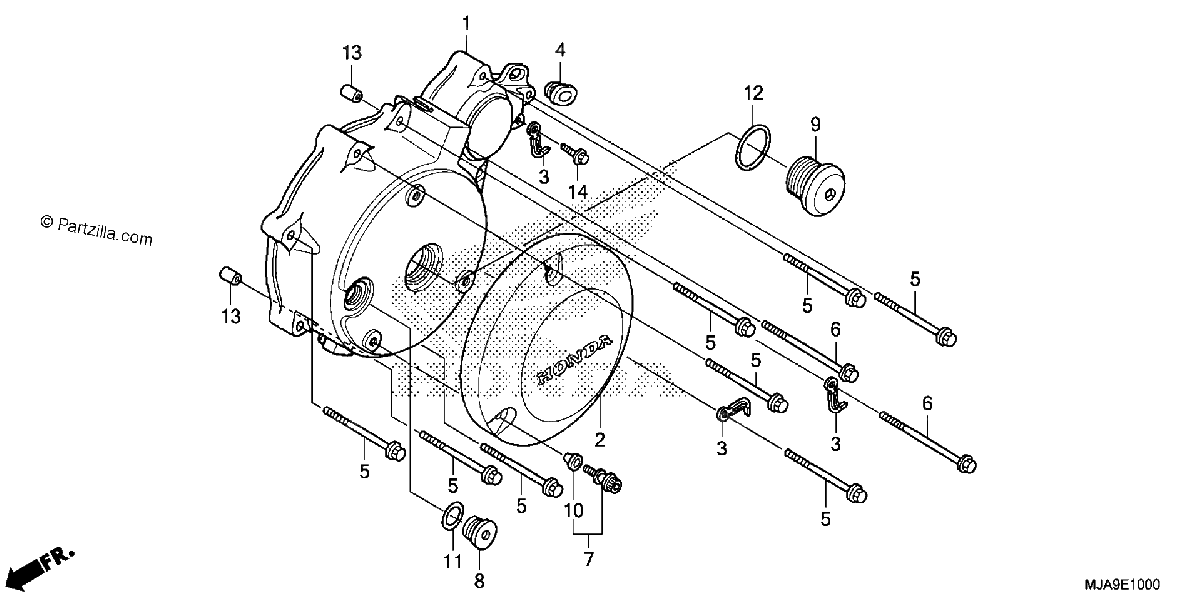

Diagrama de LEFT CRANKCASE COVER

Repuestos

#1
11341-MFE-A40
COVER, L CRANKCASE
$229.84¢114 919
1
#001
11341-MFE-A40
COVER, L CRANKCASE
$229.84¢114 919
1
#2
11360-MJA-L60
COVER, ALTERNATOR
$65.94¢32 969
1
#002
11360-MJA-L60
COVER, ALTERNATOR
$65.94¢32 969
1
#003
91413-679-000
CLIP (2X70)
$10.81¢5 406
1
#3
91413-679-000
CLIP (2X70)
$10.81¢5 406
1
#4
83551-MA6-000
GROMMET, SIDE COVER
$4.06¢2 031
1
#004
83551-MA6-000
GROMMET, SIDE COVER
$4.06¢2 031
1
#5
90006-GHB-700
BOLT, FLANGE (6X35) (NSHF)
$2.48¢1 238
1
#005
90006-GHB-700
BOLT, FLANGE (6X35) (NSHF)
$2.48¢1 238
1
#006
90006-GHB-720
BOLT, FLANGE (6X45) (NSHF)
$2.40¢1 200
1
#6
90006-GHB-720
BOLT, FLANGE (6X45) (NSHF)
$2.40¢1 200
1
#007
90020-MBA-D20
BOLT ASSY., SPECIAL
$5.15¢2 575
1
#7
90020-MBA-D20
BOLT ASSY., SPECIAL
$5.15¢2 575
1
#8
90084-MN8-010
CAP (14MM)
$14.88¢7 438
1
#008
90084-MN8-010
CAP (14MM)
$14.88¢7 438
1
#009
90087-KT7-000
CAP
$22.91¢11 456
1
#9
90087-KT7-000
CAP
$22.91¢11 456
1
#010
90543-MBA-000
RUBBER, MOUNTING
$3.65¢1 825
1
#10
90543-MBA-000
RUBBER, MOUNTING
$3.65¢1 825
1
#011
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#11
91303-377-000
O-RING (13.8X2.5)
$4.15¢2 075
1
#12
91356-425-003
O-RING (30MM)
$3.65¢1 825
1
#012
91356-425-003
O-RING (30MM)
$3.65¢1 825
1
#12
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.65¢1 825
1
#012
91356-425-005
O-RING (29.7X2.4) (NOK)
$3.65¢1 825
1
#013
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#13
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#014
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#14
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
