FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

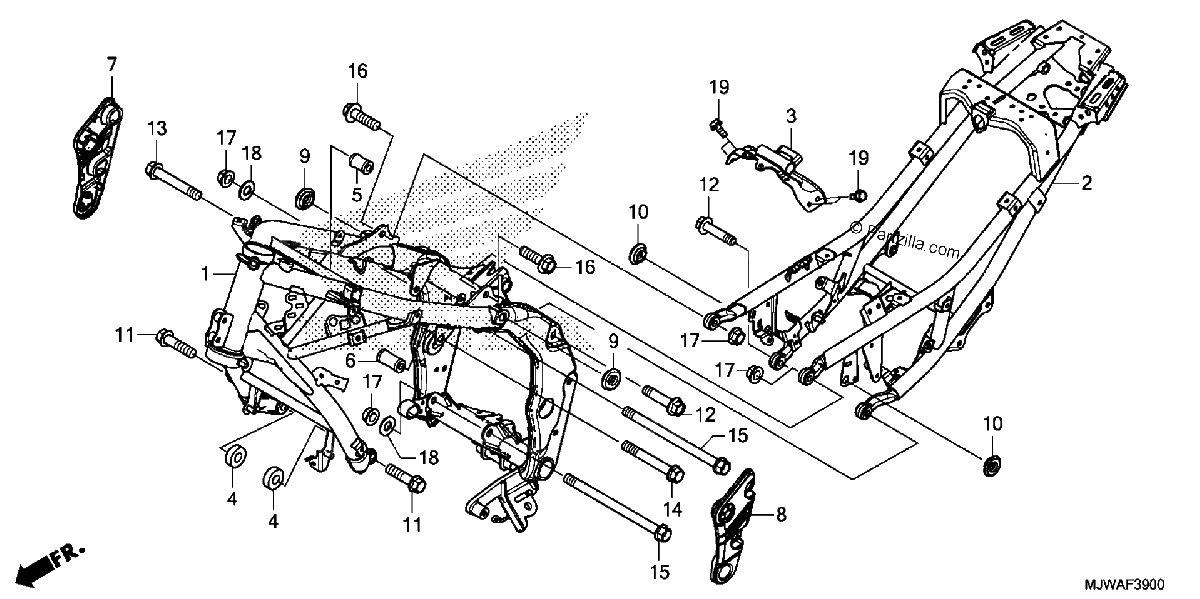

Diagrama de FRAME

Repuestos

#1
50100-MJW-J00ZC
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
$673.04¢336 519
1
#001
50100-MJW-J00ZC
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
$673.04¢336 519
1
#002
50240-MJW-J00ZA
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
$495.45¢247 725
1
#2
50240-MJW-J00ZA
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
$495.45¢247 725
1
#3
50295-MGZ-J00
BRACKET, FUEL TANK
$15.77¢7 887
1
#003
50295-MGZ-J00
BRACKET, FUEL TANK
$15.77¢7 887
1
#004
50351-MGZ-J01
COLLAR A, ENGINE HANGER
$5.11¢2 556
1
#4
50351-MGZ-J01
COLLAR A, ENGINE HANGER
$5.11¢2 556
1
#5
50353-MGZ-J00
COLLAR B, R. ENGINE HANGER
$9.51¢4 756
1
#005
50353-MGZ-J00
COLLAR B, R. ENGINE HANGER
$9.51¢4 756
1
#6
50354-MGZ-J00
COLLAR B, L ENGINE HANGER
$10.90¢5 450
1
#006
50354-MGZ-J00
COLLAR B, L ENGINE HANGER
$10.90¢5 450
1
#007
50401-MJW-J00
COVER, R. PIVOT
$7.92¢3 963
1
#7
50401-MJW-J00
COVER, R. PIVOT
$7.92¢3 963
1
#8
50451-MJW-J00
COVER, L PIVOT
$7.92¢3 963
1
#008
50451-MJW-J00
COVER, L PIVOT
$7.92¢3 963
1
#9
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#009
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#010
83551-376-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#10
83551-376-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#11
90101-MGZ-J00
BOLT, FLANGE (10X40)
$2.56¢1 281
1
#011
90101-MGZ-J00
BOLT, FLANGE (10X40)
$2.56¢1 281
1
#12
90101-MJW-J00
BOLT, FLANGE (10X45)
$6.79¢3 394
1
#012
90101-MJW-J00
BOLT, FLANGE (10X45)
$6.79¢3 394
1
#013
90102-MGZ-J00
BOLT, FLANGE (10X65)
$2.48¢1 238
1
#13
90102-MGZ-J00
BOLT, FLANGE (10X65)
$2.48¢1 238
1
#014
90103-MGZ-J00
BOLT, FLANGE (10X75)
$2.89¢1 444
1
#14
90103-MGZ-J00
BOLT, FLANGE (10X75)
$2.89¢1 444
1
#015
90104-KYJ-900
BOLT, FLANGE (10X146)
$4.14¢2 069
1
#15
90104-KYJ-900
BOLT, FLANGE (10X146)
$4.14¢2 069
1
#16
90168-S2A-010
BOLT, FLANGE (10X35)
$6.45¢3 225
1
#016
90168-S2A-010
BOLT, FLANGE (10X35)
$6.45¢3 225
1
#17
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#017
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#018
94101-10800
WASHER, PLAIN (10MM)
$2.41¢1 206
1
#18
94101-10800
WASHER, PLAIN (10MM)
$2.41¢1 206
1
#19
95701-06014-08
BOLT, FLANGE (6X14)
$2.09¢1 044
1
#019
95701-06014-08
BOLT, FLANGE (6X14)
$2.09¢1 044
1
