REAR BRAKE MASTER CYLINDER CBR500R

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

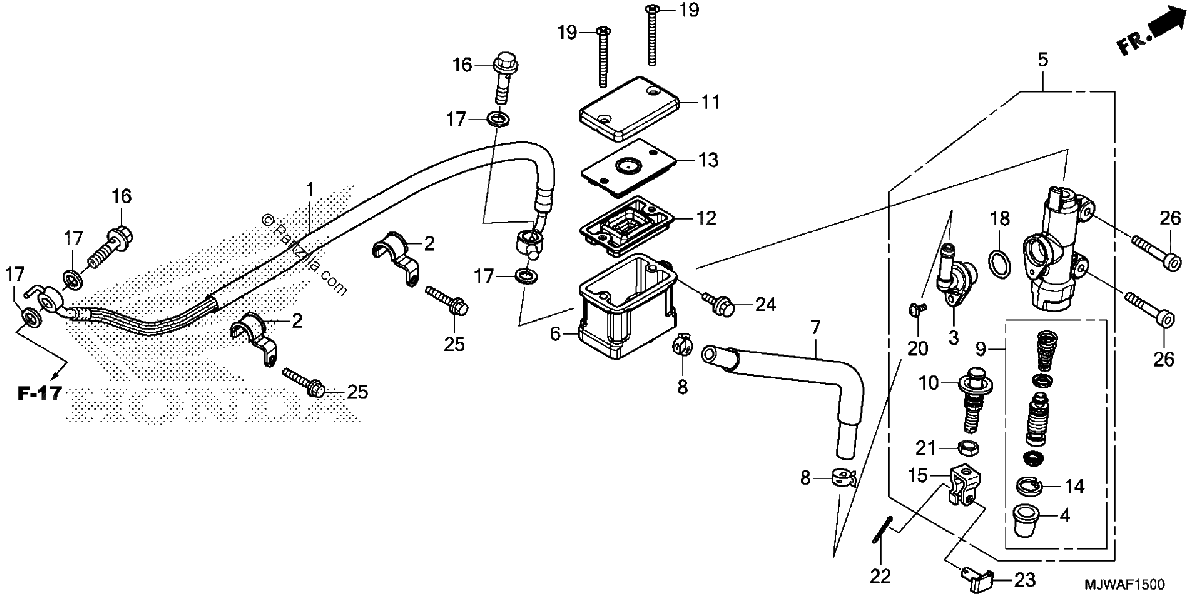

Diagrama de REAR BRAKE MASTER CYLINDER CBR500R

Repuestos

#1
43310-MGZ-J01
HOSE, RR. BRAKE
$27.16¢13 582
1
#2
43468-MGZ-J00
GUIDE, RR. BRAKE HOSE
$4.47¢2 237
1
#3
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.17¢4 583
1
#4
43504-MB2-006
BOOT
$10.80¢5 399
1
#5
43510-MGZ-D01
MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)
$249.61¢124 804
1
#6
43511-KV3-831
CUP, OIL
$25.32¢12 661
1
#7
43512-MGZ-J01
HOSE, RR. BRAKE MASTER CYLINDER
$18.32¢9 160
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#9
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
1
#10
43530-KV3-701
ROD, PUSH
$23.49¢11 747
1
#11
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
1
#11
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#12
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#13
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#14
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#15
46504-KV6-702
JOINT, BRAKE ROD
$8.74¢4 370
1
#16
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#17
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#18
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#19
93600-04040-1G
SCREW, FLAT (4X40)
$0.56¢282
1
#20
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#20
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#21
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#22
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#23
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#24
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
#25
96001-06018-07
BOLT, FLANGE (6X18)
$1.49¢747
1
#26
96600-06020-00
BOLT, SOCKET (6X20)
$1.53¢765
1
