SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

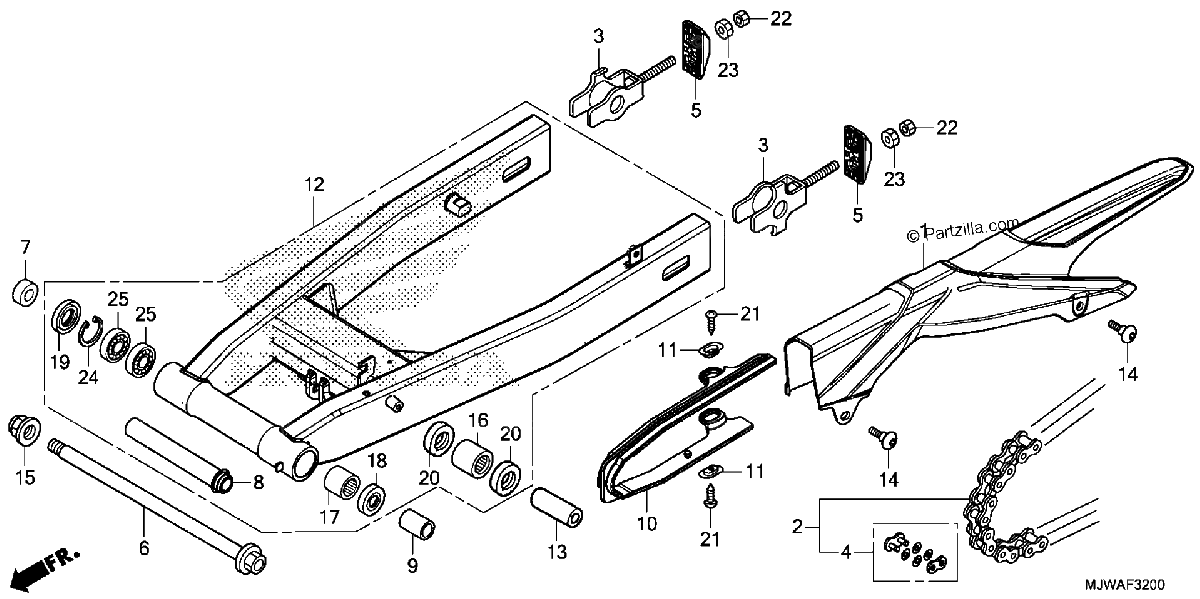

Diagrama de SWINGARM

Repuestos

#1
40510-MJW-J00
CASE, DRIVE CHAIN
$28.57¢14 283
1
#001
40510-MJW-J00
CASE, DRIVE CHAIN
$28.57¢14 283
1
#002
40540-MGS-D31
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
$273.87¢136 936
1
#2
40540-MGS-D31
CHAIN, DRIVE (DID520V0-120ZB) (DAIDO) (STANDARD LINK 112L) (STANDARD LINK 114L)
$273.87¢136 936
1
#003
40543-MJW-J00
ADJUSTER, CHAIN
$15.25¢7 624
1
#3
40543-MJW-J00
ADJUSTER, CHAIN
$15.25¢7 624
1
#004
40545-MGS-D31
MASTER LINK (DAIDO)
$15.92¢7 958
1
#4
40545-MGS-D31
MASTER LINK (DAIDO)
$15.92¢7 958
1
#5
40546-MGZ-J00
CAP, SWINGARM END
$16.20¢8 102
1
#005
40546-MGZ-J00
CAP, SWINGARM END
$16.20¢8 102
1
#6
52101-MGZ-J00
BOLT, SWINGARM PIVOT
$19.72¢9 861
1
#006
52101-MGZ-J00
BOLT, SWINGARM PIVOT
$19.72¢9 861
1
#007
52105-MJ0-000
COLLAR B, SWINGARM PIVOT
$6.66¢3 329
1
#7
52105-MJ0-000
COLLAR B, SWINGARM PIVOT
$6.66¢3 329
1
#008
52141-MGZ-J00
COLLAR, CENTER PIVOT DISTANCE
$22.08¢11 040
1
#8
52141-MGZ-J00
COLLAR, CENTER PIVOT DISTANCE
$22.08¢11 040
1
#9
52143-MGZ-J00
COLLAR, L PIVOT DISTANCE
$19.00¢9 499
1
#009
52143-MGZ-J00
COLLAR, L PIVOT DISTANCE
$19.00¢9 499
1
#10
52170-MGZ-J00
SLIDER, CHAIN
$19.76¢9 878
1
#010
52170-MGZ-J00
SLIDER, CHAIN
$19.76¢9 878
1
#11
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#011
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#012
52200-MGZ-J00
SWINGARM SUB-ASSY., RR.
$760.70¢380 351
1
#12
52200-MGZ-J00
SWINGARM SUB-ASSY., RR.
$760.70¢380 351
1
#13
52463-MGZ-J00
COLLAR, CUSHION CONNECTING ROD
$6.13¢3 065
1
#013
52463-MGZ-J00
COLLAR, CUSHION CONNECTING ROD
$6.13¢3 065
1
#014
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.26¢633
1
#14
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.26¢633
1
#15
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
1
#015
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
1
#16
91071-KV3-005
BEARING, NEEDLE (KOYO)
$26.59¢13 294
1
#016
91071-KV3-005
BEARING, NEEDLE (KOYO)
$26.59¢13 294
1
#017
91071-MT7-003
BEARING, NEEDLE (NTN)
$28.69¢14 346
1
#17
91071-MT7-003
BEARING, NEEDLE (NTN)
$28.69¢14 346
1
#18
91202-MAL-601
DUST SEAL (25X33X4)
$7.76¢3 881
1
#018
91202-MAL-601
DUST SEAL (25X33X4)
$7.76¢3 881
1
#019
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
1
#19
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
1
#19
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
1
#019
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
1
#020
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#20
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#021
93901-25280
SCREW, TAPPING (5X12)
$1.07¢535
1
#21
93901-25280
SCREW, TAPPING (5X12)
$1.07¢535
1
#022
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#22
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#023
94030-08000
NUT, HEX. (8MM)
$1.26¢633
1
#23
94030-08000
NUT, HEX. (8MM)
$1.26¢633
1
#24
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
#024
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
#25
96100-62020-10
BEARING, RADIAL BALL (6202)
$15.59¢7 797
1
#025
96100-62020-10
BEARING, RADIAL BALL (6202)
$15.59¢7 797
1
