FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

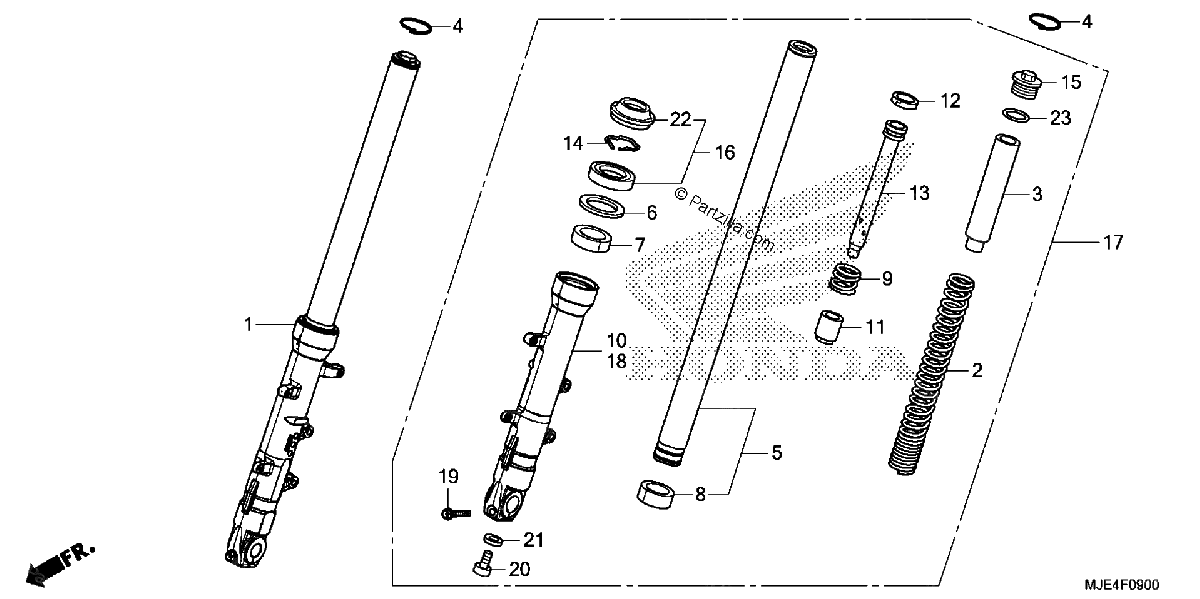

Diagrama de FRONT FORK

Repuestos

#1
51400-MJE-305
FORK Assembly., Right Front. (COO) (SHOWA)
$493.36¢246 681
1
#2
51401-MJE-D01
SPRING, FR. FORK (SHOWA)
$55.71¢27 856
1
#3
51402-MGZ-J01
COLLAR, SPRING
$20.74¢10 369
1
#4
51405-MB4-003
RING, STOPPER
$7.38¢3 688
1
#5
51410-MJE-305
PIPE, FR. FORK (COO) (SHOWA)
$200.32¢100 163
1
#6
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#7
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#8
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#9
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$9.36¢4 681
1
#10
51420-MJE-D01
CASE, R. (LOWER)
$248.38¢124 188
1
#11
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$28.82¢14 413
1
#12
51437-KV3-701
RING, PISTON
$8.73¢4 363
1
#13
51440-MJE-D01
PIPE, SEAT (SHOWA)
$12.40¢6 200
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#15
51454-MM9-671
BOLT, FR. FORK
$44.54¢22 269
1
#16
51490-MER-R61
SEAL SET, Front FORK
$26.44¢13 219
1
#17
51500-MJE-305
FORK Assembly., L Front. (COO) (SHOWA)
$490.80¢245 400
1
#18
51520-MJE-D01
CASE, Left (LOWER)
$246.79¢123 394
1
#19
90108-MR7-000
BOLT, FLANGE (8X40)
$6.13¢3 063
1
#20
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#21
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#22
91254-MEE-D01
DUST SEAL (SHOWA)
$10.00¢5 000
1
#23
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
