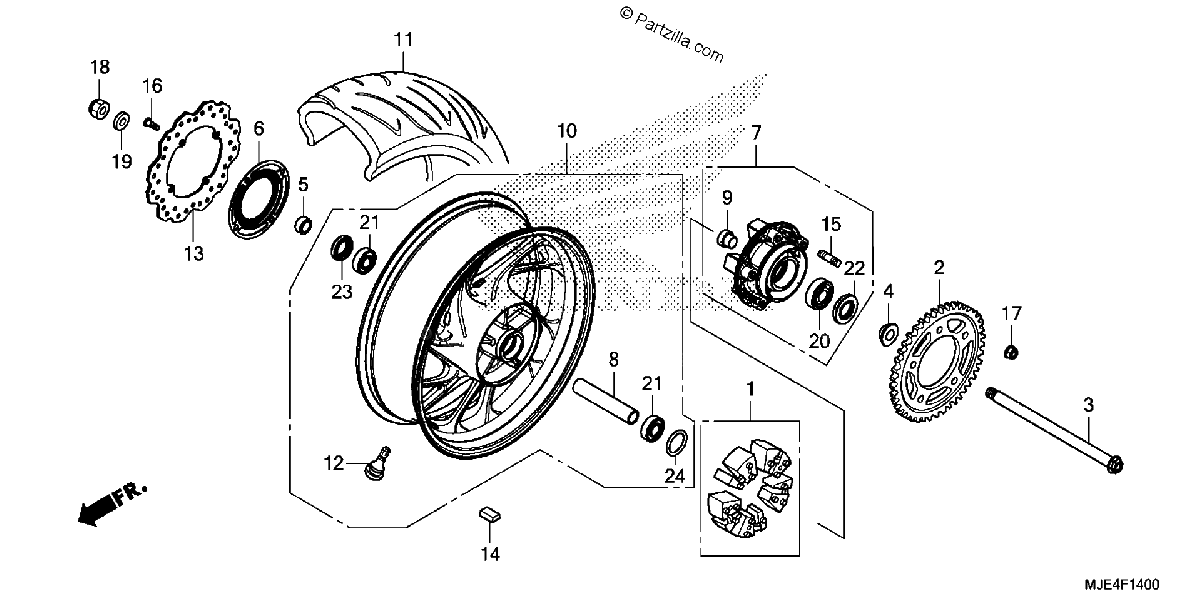

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$107.21¢53 607
#2
SPROCKET, FINAL DRIVEN (42T)
$59.68¢29 842
#3
AXLE, RR. WHEEL
$38.34¢19 171
#4
COLLAR, L. RR. WHEEL SIDE
$22.11¢11 057
#5
COLLAR, Rear BRAKE SIDE
$12.91¢6 457
#6
RING, Rear PULSER
$86.87¢43 436
#7
FLANGE SUB-Assembly., Rear DRIVEN
$157.02¢78 511
#8
COLLAR, Front AXLE DISTANCE (Rear.)
$13.33¢6 664
#9
COLLAR B, RR. WHEEL DISTANCE
$22.06¢11 029
#10
WHEEL SUB-Assembly., Rear. (TYPE1)
$425.95¢212 974
#11
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
No Disponible
#12
VALVE, RIM (TRITON)
$0.66¢328
#13
DISK, Rear BRAKE (SUNSTAR)
$90.24¢45 120
#14
WEIGHT, BALANCE (15G) (TOHO ZINK)
$3.12¢1 558
#14
WEIGHT, BALANCE (25G) (TOHO ZINK)
$6.64¢3 318
#14
WEIGHT, BALANCE (20G) (TOHO ZINK)
$5.84¢2 921
#14
WEIGHT, BALANCE (5G) (TOHO ZINK)
$1.06¢529
#14
WEIGHT, BALANCE (30G) (TOHO ZINK)
$7.11¢3 553
#14
WEIGHT, BALANCE (10G) (TOHO ZINK)
$5.01¢2 507
#15
BOLT, STUD (12X25)
$4.47¢2 237
#16
BOLT, DISK (8X25)
$3.36¢1 679
#17
NUT, U (12MM) (FUJI SEIMITSU)
$3.04¢1 518
#18
NUT, U (18MM)
$9.79¢4 893
#19
WASHER (20X31.5X2)
$3.58¢1 788
#20
BEARING, RADIAL BALL (6322)
$42.76¢21 379
#21
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
#22
DUST SEAL (30X56X7.5)
$12.95¢6 474
#23
DUST SEAL (30X47X7.5)
$17.03¢8 516
#24
O-RING (55X2)
$3.36¢1 679
