SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

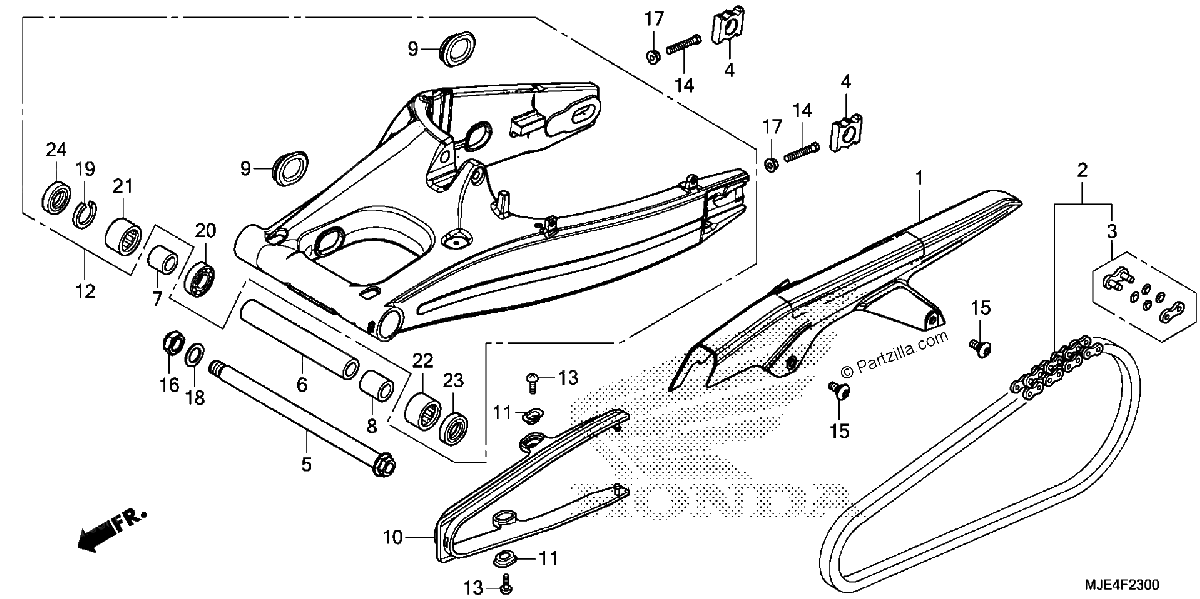

Diagrama de SWINGARM

Repuestos

#1
40511-MJE-D00
CASE, DRIVE CHAIN
$28.52¢14 260
1
#001
40511-MJE-D00
CASE, DRIVE CHAIN
$28.52¢14 260
1
#002
40540-MJE-D01
CHAIN, DRIVE (DID525V11-120ZB) (DAIDO)
$166.32¢83 162
1
#2
40540-MJE-D01
CHAIN, DRIVE (DID525V11-120ZB) (DAIDO)
$166.32¢83 162
1
#002
40540-MJE-D02
CHAIN, DRIVE (RK525KRW-120LJFZ) (RK EXCEL)
$258.22¢129 110
1
#2
40540-MJE-D02
CHAIN, DRIVE (RK525KRW-120LJFZ) (RK EXCEL)
$258.22¢129 110
1
#003
40545-MJE-D01
MASTER LINK (DAIDO)
$19.93¢9 965
1
#3
40545-MJE-D01
MASTER LINK (DAIDO)
$19.93¢9 965
1
#3
40545-MJE-D02
MASTER LINK (RK JAPAN)
$33.05¢16 525
1
#003
40545-MJE-D02
MASTER LINK (RK JAPAN)
$33.05¢16 525
1
#4
42305-MJE-D00
COLLAR, Rear AXLE
$17.59¢8 798
1
#004
42305-MJE-D00
COLLAR, Rear AXLE
$17.59¢8 798
1
#5
52101-MJE-D00
BOLT, SWINGARM PIVOT
$55.49¢27 744
1
#005
52101-MJE-D00
BOLT, SWINGARM PIVOT
$55.49¢27 744
1
#6
52141-MJE-D00
COLLAR, CENTER PIVOT DISTANCE
$22.41¢11 207
1
#006
52141-MJE-D00
COLLAR, CENTER PIVOT DISTANCE
$22.41¢11 207
1
#7
52142-MJE-D00
COLLAR, Right PIVOT DISTANCE
$15.97¢7 987
1
#007
52142-MJE-D00
COLLAR, Right PIVOT DISTANCE
$15.97¢7 987
1
#8
52143-MJE-D00
COLLAR, L PIVOT DISTANCE
$16.07¢8 033
1
#008
52143-MJE-D00
COLLAR, L PIVOT DISTANCE
$16.07¢8 033
1
#9
52161-KZZ-900
CAP, Rear SWINGARM
$3.15¢1 576
1
#009
52161-KZZ-900
CAP, Rear SWINGARM
$3.15¢1 576
1
#010
52170-MJE-D00
SLIDER, CHAIN
$19.81¢9 907
1
#10
52170-MJE-D00
SLIDER, CHAIN
$19.81¢9 907
1
#11
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#011
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#12
52200-MJE-G00
SWINGARM SUB-Assembly., Rear.
$1490.69¢745 344
1
#012
52200-MJE-G00
SWINGARM SUB-Assembly., Rear.
$1490.69¢745 344
1
#013
90104-KPP-900
SCREW, PAN (5X12)
$0.98¢489
1
#13
90104-KPP-900
SCREW, PAN (5X12)
$0.98¢489
1
#014
90106-MCF-D00
BOLT, HEX. (8X50)
$2.86¢1 432
1
#14
90106-MCF-D00
BOLT, HEX. (8X50)
$2.86¢1 432
1
#15
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.26¢633
1
#015
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.26¢633
1
#16
90305-MJE-D01
NUT, U (18MM)
$12.54¢6 268
1
#016
90305-MJE-D01
NUT, U (18MM)
$12.54¢6 268
1
#17
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#017
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#18
90401-KZ4-890
WASHER (18X32X2)
$4.99¢2 496
1
#018
90401-KZ4-890
WASHER (18X32X2)
$4.99¢2 496
1
#19
90651-MEW-920
CIRCLIP (INNER) (37)
$3.71¢1 857
1
#019
90651-MEW-920
CIRCLIP (INNER) (37)
$3.71¢1 857
1
#020
91054-MGS-D31
BEARING, RADIAL BALL (20X37X9)
$11.86¢5 928
1
#20
91054-MGS-D31
BEARING, RADIAL BALL (20X37X9)
$11.86¢5 928
1
#021
91055-MGS-D31
BEARING, NEEDLE (30X37X20)
$22.76¢11 379
1
#21
91055-MGS-D31
BEARING, NEEDLE (30X37X20)
$22.76¢11 379
1
#22
91071-MR7-003
BEARING, NEEDLE
$27.44¢13 719
1
#022
91071-MR7-003
BEARING, NEEDLE
$27.44¢13 719
1
#023
91202-MR7-003
DUST SEAL (28X37X4)
$7.08¢3 542
1
#23
91202-MR7-003
DUST SEAL (28X37X4)
$7.08¢3 542
1
#24
91253-KZ3-861
DUST SEAL (30X37X4)
$9.34¢4 669
1
#024
91253-KZ3-861
DUST SEAL (30X37X4)
$9.34¢4 669
1
