TRANSMISSION

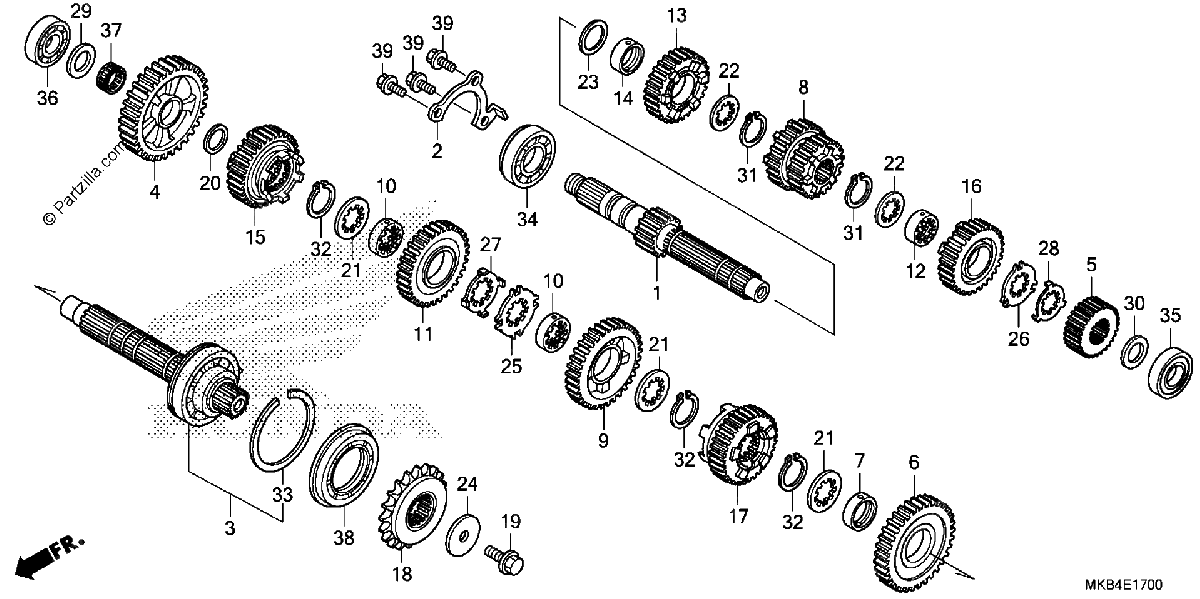

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAINSHAFT (14T)
$198.18¢99 090
#2
PLATE, BEARING SETTING
$9.33¢4 663
#3
COUNTERSHAFT
$241.41¢120 704
#4
GEAR, COUNTERSHAFT FIRST (32T)
$130.80¢65 400
#5
GEAR, MAINSHAFT SECOND (18T)
$71.77¢35 886
#6
GEAR, COUNTERSHAFT SECOND (32T)
$171.23¢85 617
#7
COLLAR (30X9.5)
$15.19¢7 596
#8
GEAR, MAINSHAFT THIRD FOURTH (22T/24T)
$170.54¢85 273
#9
GEAR, COUNTERSHAFT THIRD (33T)
$178.95¢89 476
#10
COLLAR, SPLINE (30X11)
$27.24¢13 622
#11
GEAR, COUNTERSHAFT FOURTH (32T)
$140.83¢70 414
#12
COLLAR, SPLINE (28X13.5)
$36.63¢18 314
#13
GEAR, MAINSHAFT FIFTH (28T)
$138.11¢69 057
#14
COLLAR (28X13)
$27.24¢13 622
#15
GEAR, COUNTERSHAFT FIFTH (34T)
$158.29¢79 143
#16
GEAR, MAINSHAFT SIXTH (29T)
$138.11¢69 057
#17
GEAR, COUNTERSHAFT SIXTH (33T)
$158.29¢79 143
#18
SPROCKET, DRIVE (16T)
$98.66¢49 329
#19
BOLT, SPECIAL (10MM)
$8.18¢4 088
#20
WASHER, THRUST (24MM)
$4.08¢2 041
#21
WASHER, SPLINE (30X36X1.5)
$3.90¢1 949
#22
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
#23
WASHER, THRUST (28MM)
$6.34¢3 168
#24
WASHER (10.2MM)
$6.51¢3 254
#25
WASHER, SPLINE (30MM)
$5.40¢2 702
#26
WASHER, SPLINE (28MM)
$6.58¢3 289
#27
WASHER, LOCK (30MM)
$7.96¢3 979
#28
WASHER, LOCK (28MM)
$6.58¢3 289
#29
SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)
$7.64¢3 818
#30
WASHER, THRUST (20MM)
$2.28¢1 138
#31
CIRCLIP (28MM)
$4.17¢2 087
#32
CIRCLIP (30MM)
$4.99¢2 496
#33
RING, SNAP (72MM)
$10.73¢5 365
#34
BEARING, RADIAL BALL (28X62X16)
$23.49¢11 747
#35
BEARING, SPECIAL (20X47X15.5)
$25.71¢12 857
#36
BEARING, SPECIAL (20X52X15)
$23.49¢11 747
#37
BEARING, NEEDLE (24X28X10)
$12.88¢6 440
#38
OIL SEAL (45X72X8)
$18.99¢9 493
#39
BOLT, FLANGE (6X14)
$1.13¢564
