HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

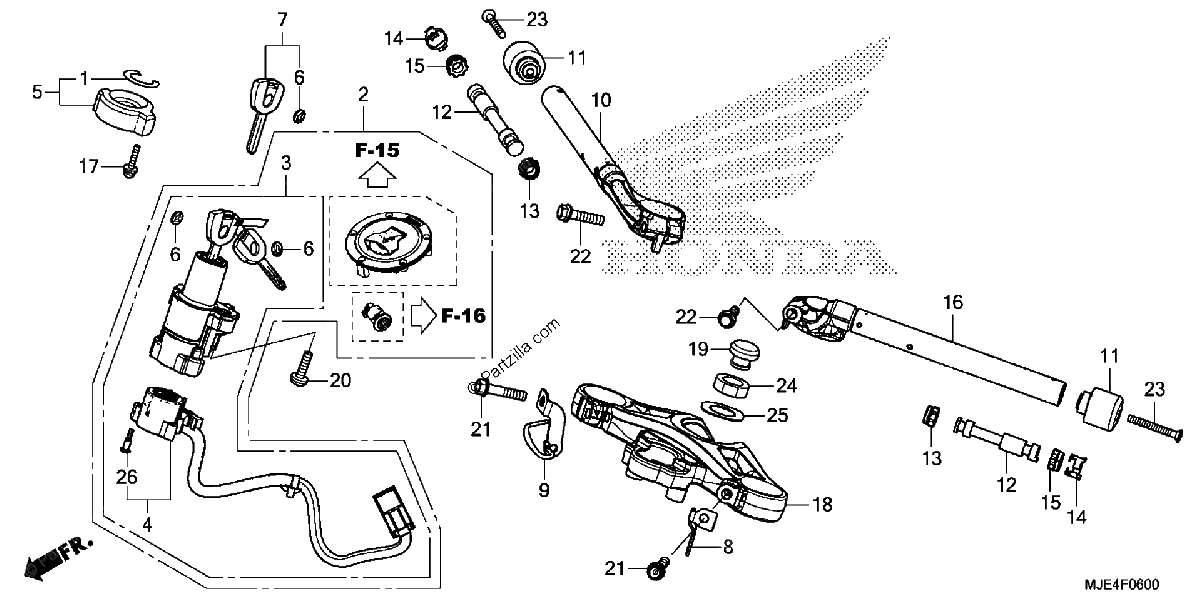

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#2
35010-MJE-A02
LOCK SET
No Disponible
1
#3
35100-MJE-A02
SWITCH Assembly., COMBINATION & LOCK
No Disponible
1
#4
35101-MJE-D01
BASE, CONTACT
$70.14¢35 069
1
#5
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#6
35113-MJE-D00
EMBLEM, KEY
$27.99¢13 994
1
#7
35121-MJE-A02
KEY, BLANK
$25.71¢12 856
1
#8
35910-MJE-D00
GUIDE, L Front WIRE
$2.85¢1 425
1
#9
45157-MJE-D00
CLAMP C, Front BRAKE HOSE
$7.18¢3 588
1
#10
53100-MJE-305
HANDLEBAR, Right. (COO)
$58.52¢29 263
1
#11
53104-MGZ-J00
WEIGHT, HANDLEBAR
$12.30¢6 150
1
#12
53105-MGZ-J00
WEIGHT B, HANDLEBAR
$10.32¢5 163
1
#13
53107-MB6-630
RUBBER B, HANDLE WEIGHT
$4.76¢2 381
1
#14
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$6.23¢3 113
1
#15
53109-MV4-000
RUBBER B, HANDLE WEIGHT
$3.44¢1 719
1
#16
53150-MJE-305
HANDLEBAR, Left (COO)
$42.85¢21 425
1
#17
53192-MFL-000
SCREW-WASHER (5X25)
$2.38¢1 188
1
#18
53230-MJE-D00
BRIDGE, FORK TOP
$141.85¢70 925
1
#19
53232-MJ4-670
CAP, STEERING STEM NUT
$15.70¢7 850
1
#20
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#21
90108-MR7-000
BOLT, FLANGE (8X40)
$6.13¢3 063
1
#22
90112-MGZ-J00
BOLT, FLANGE (8X35)
$1.38¢688
1
#23
90191-KYJ-900
SCREW, OVAL (6X50)
$1.27¢638
1
#24
90304-KGA-900
NUT, STEERING STEM
$3.69¢1 844
1
#25
90503-KGA-900
WASHER, STEERING STEM
$1.93¢963
1
#26
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
