FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

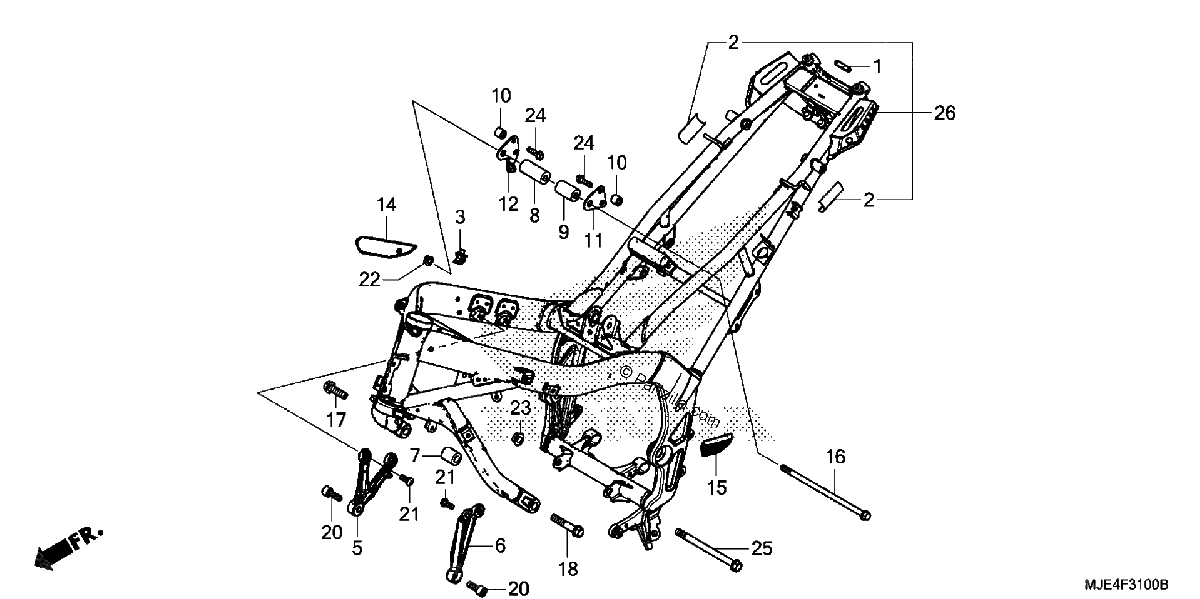

Diagrama de FRAME

Repuestos

#1
17518-MFN-D00
TRIM, FUEL TANK
$3.61¢1 806
1
#2
17528-KCZ-930
TAPE B, TANK GUARD
$4.80¢2 400
1
#3
32161-393-003
CLIP, WIRE HARNESS
$3.77¢1 888
1
#5
50211-MJE-D00
BRACKET B, Right ENGINE HANGER
$40.96¢20 481
1
#6
50212-MJE-D00
BRACKET B, L ENGINE HANGER
$45.06¢22 531
1
#7
50351-MJE-D00
COLLAR A, ENGINE HANGER
$8.79¢4 394
1
#8
50352-MJE-D00
COLLAR C, Right ENGINE HANGER
$13.61¢6 806
1
#9
50353-MJE-D00
COLLAR C, L. ENGINE HANGER
$6.76¢3 381
1
#10
50354-MJE-D00
SPACER C, ENGINE HANGER
$1.69¢844
1
#11
50355-MJE-D00
PLATE, ENGINE HANGER
$5.32¢2 662
1
#12
50355-MJE-D10
PLATE, Right ENGINE HANGER
$12.82¢6 413
1
#14
64311-MJE-D00
COVER, Right FRAME
$19.68¢9 838
1
#15
64321-MJE-D00
COVER, L. FRAME
$19.68¢9 838
1
#16
90101-GET-000
BOLT, FLANGE (10X230)
$8.36¢4 181
1
#17
90101-MJE-D00
BOLT, FLANGE (12X40)
$9.84¢4 919
1
#18
90102-MJE-D00
BOLT, FLANGE (12X65)
$11.60¢5 800
1
#20
90105-MJE-D00
BOLT, SOCKET (10X30)
$2.34¢1 169
1
#21
90127-KYJ-900
BOLT, SOCKET (8X22)
$2.13¢1 063
1
#22
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#23
94050-12000
NUT, FLANGE (12MM)
$1.27¢638
1
#24
95701-08028-07
BOLT, FLANGE (8X28)
$1.60¢800
1
#25
95801-12160-08
BOLT, FLANGE (12X160)
$6.21¢3 106
1
#26
50010-MJE-315ZA
FRAME SET NH303M (MAT AXIS GRAY METALLIC)
$1372.95¢686 475
1
