CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

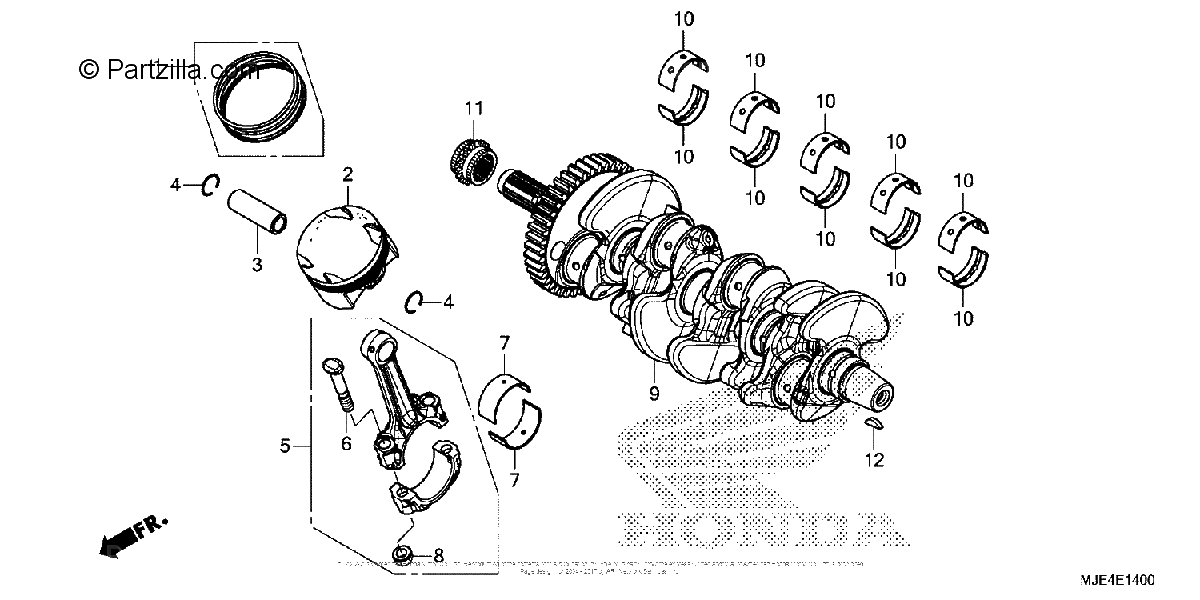

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
13011-MJE-315
RING SET, PISTON (STD)
$29.13¢14 563
1
#1
13021-MJE-315
RING SET, PISTON (O S. 0.25)
$27.88¢13 938
1
#2
13101-MJE-D00
PISTON
$51.57¢25 787
1
#2
13102-MJE-305
PISTON (O S. 0.25) (NOT AVAILABLE)
No Disponible
1
#3
13111-MFG-D00
PIN, PISTON
$25.49¢12 744
1
#4
13112-MEE-000
CLIP, PISTON PIN (16MM)
$2.97¢1 487
1
#5
13210-MJE-D00
ROD ASSY., CONNECTING
$131.48¢65 738
1
#6
13213-ML7-020
BOLT, CONNECTING ROD
$9.70¢4 850
1
#7
13218-MJE-D01
BEARING E, CONNECTING ROD (YELLOW)
$17.19¢8 594
1
#7
13217-MJE-D01
BEARING D, CONNECTING ROD (GREEN)
$17.19¢8 594
1
#7
13216-MJE-D01
BEARING C, CONNECTING ROD (BROWN)
$17.19¢8 594
1
#7
13215-MJE-D01
BEARING B, CONNECTING ROD (BLACK)
$17.19¢8 594
1
#7
13214-MJE-D01
BEARING A, CONNECTING ROD (BLUE)
$17.19¢8 594
1
#8
13215-ML7-000
NUT, CONNECTING ROD
$4.71¢2 356
1
#9
13310-MJE-D00
CRANKSHAFT
$1504.49¢752 244
1
#10
13313-MW0-003
BEARING A, CRANKSHAFT (BLACK)
$15.32¢7 663
1
#10
13314-MW0-003
BEARING B, CRANKSHAFT (BROWN)
$14.80¢7 400
1
#10
13315-MW0-003
BEARING C, CRANKSHAFT (GREEN)
$14.80¢7 400
1
#10
13316-MW0-003
BEARING D, CRANKSHAFT (YELLOW)
$15.32¢7 663
1
#10
13317-MW0-003
BEARING E, CRANKSHAFT (PINK)
$15.32¢7 663
1
#11
14312-MJE-D00
SPROCKET, TIMING (17T)
$21.70¢10 850
1
#12
90701-HB6-010
KEY, WOODRUFF (25X14X4)
$4.59¢2 294
1
