LEFT FRONT BRAKE CALIPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

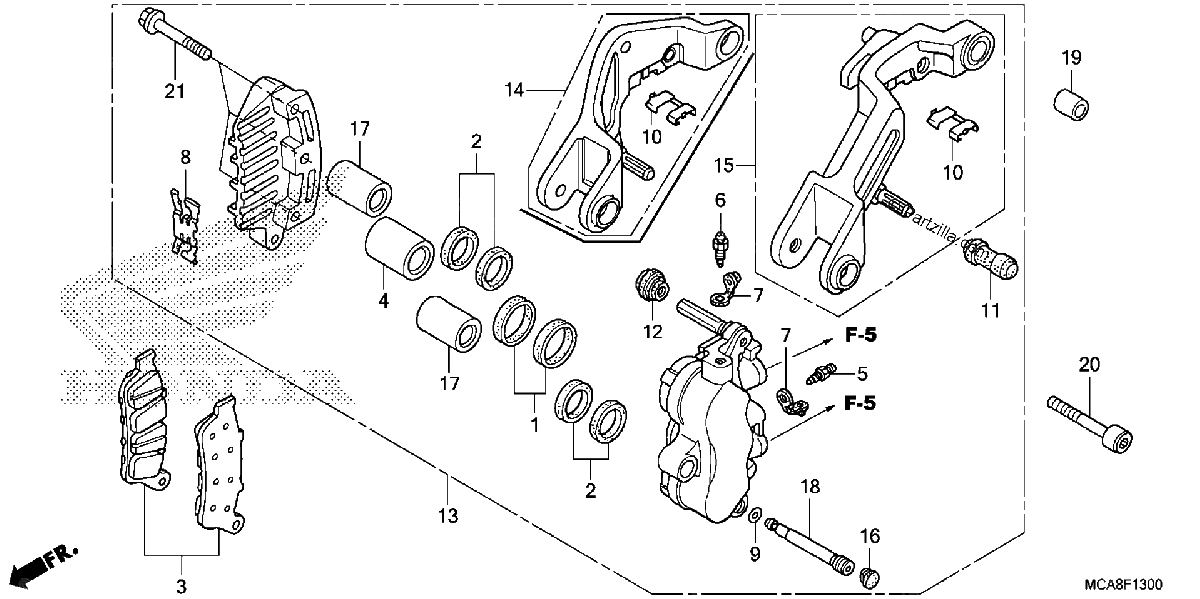

Diagrama de LEFT FRONT BRAKE CALIPER

Repuestos

#001
06431-MA3-405
SEAL SET, PISTON
$8.18¢4 088
1
#1
06431-MA3-405
SEAL SET, PISTON
$8.18¢4 088
1
#2
06451-MZ2-405
SEAL SET, PISTON
$13.50¢6 751
1
#002
06451-MZ2-405
SEAL SET, PISTON
$13.50¢6 751
1
#003
06455-MCA-016
PAD SET, FR.
$47.68¢23 839
1
#3
06455-MCA-016
PAD SET, FR.
$47.68¢23 839
1
#004
43107-MBG-006
PISTON (27X27)
$40.02¢20 010
1
#4
43107-MBG-006
PISTON (27X27)
$40.02¢20 010
1
#5
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#005
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#6
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#006
43352-568-003
SCREW, BLEEDER (NISSIN)
$8.85¢4 427
1
#7
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#007
43353-461-771
CAP, BLEEDER
$5.63¢2 818
1
#008
45108-MZ2-016
SPRING, PAD
$9.20¢4 600
1
#8
45108-MZ2-016
SPRING, PAD
$9.20¢4 600
1
#9
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#009
45111-MAJ-G41
RING, STOPPER
$4.24¢2 122
1
#010
45112-MZ2-006
RETAINER, BRACKET
$9.51¢4 755
1
#10
45112-MZ2-006
RETAINER, BRACKET
$9.51¢4 755
1
#011
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.08¢3 042
1
#11
45132-166-016
BOOT, PIN BUSH (NISSIN)
$6.08¢3 042
1
#012
45133-MA3-006
BOOT B
$6.08¢3 042
1
#12
45133-MA3-006
BOOT B
$6.08¢3 042
1
#013
45150-MCA-006
CALIPER SUB-ASSY., L. FR. (NISSIN)
$261.38¢130 692
1
#13
45150-MCA-006
CALIPER SUB-ASSY., L. FR. (NISSIN)
$261.38¢130 692
1
#13
45150-MJG-671
CALIPER SUB-ASSY., L. FR. (NISSIN)
$616.38¢308 189
1
#13
45150-MJK-G31
CALIPER SUB-ASSY., L. FR. (NISSIN)
$724.73¢362 365
1
#14
45190-MJK-G31
BRACKET SUB-ASSY., L. FR.
$215.35¢107 674
1
#15
45190-MCA-006
BRACKET SUB-Assembly., L Front.
$71.39¢35 696
1
#015
45190-MCA-006
BRACKET SUB-Assembly., L Front.
$71.39¢35 696
1
#15
45190-MJG-671
BRACKET SUB-ASSY., L. FR.
$238.91¢119 456
1
#16
45203-MCC-006
PLUG, PIN
$3.36¢1 679
1
#016
45203-MCC-006
PLUG, PIN
$3.36¢1 679
1
#17
45207-MAJ-G41
PISTON B (22X35)
$32.29¢16 146
1
#017
45207-MAJ-G41
PISTON B (22X35)
$32.29¢16 146
1
#18
45215-MAJ-G41
PIN, HANGER
$7.19¢3 594
1
#018
45215-MAJ-G41
PIN, HANGER
$7.19¢3 594
1
#19
45442-MAT-000
COLLAR, L. CALIPER BRACKET
$5.52¢2 760
1
#019
45442-MAT-000
COLLAR, L. CALIPER BRACKET
$5.52¢2 760
1
#020
90132-MZ2-000
BOLT, SOCKET (8X45)
$12.05¢6 026
1
#20
90132-MZ2-000
BOLT, SOCKET (8X45)
$12.05¢6 026
1
#21
90135-MAJ-G41
BOLT, FLANGE (8X45)
$7.21¢3 605
1
#021
90135-MAJ-G41
BOLT, FLANGE (8X45)
$7.21¢3 605
1
