FRONT BRAKE MASTER CYLINDER VT750C C2B

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

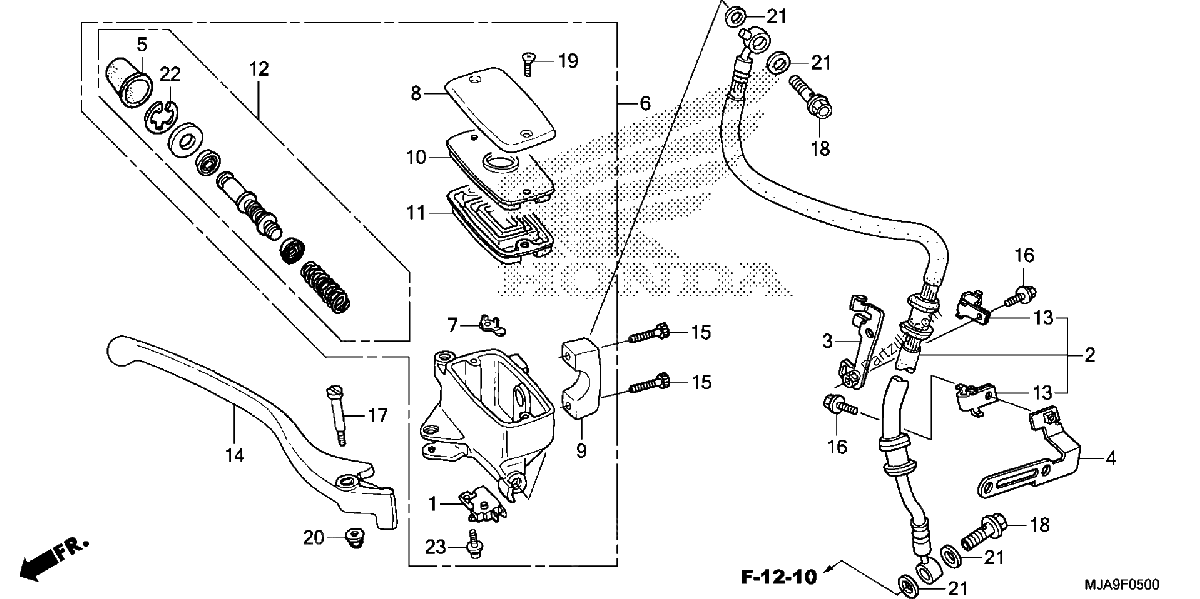

Diagrama de FRONT BRAKE MASTER CYLINDER VT750C C2B

Repuestos

#1
35340-MM5-601
SWITCH ASSY., FR. STOP
$15.36¢7 682
1
#2
45126-MFE-A41
HOSE, FR. BRAKE
$83.31¢41 653
1
#3
45130-MEG-A40
STAY, FR. BRAKE HOSE
$11.35¢5 675
1
#4
45138-MEG-A40
BRACKET, R. FR. HOSE CLIP
$9.79¢4 893
1
#5
45504-410-003
BOOT
$13.10¢6 549
1
#6
45510-MAV-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$249.52¢124 758
1
#7
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#8
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
1
#9
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#11
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#12
45530-MN9-305
MASTER CYLINDER SET
$54.21¢27 106
1
#13
52115-ML8-670
CLAMP, BRAKE HOSE
$6.43¢3 214
1
#14
53175-MR5-305
LEVER, R. HANDLE (COO)
$17.54¢8 769
1
#15
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#16
90103-MCS-G00
BOLT, FLANGE (6X12)
$1.53¢765
1
#17
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#19
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#19
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#20
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#21
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#22
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#23
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#23
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
