THROTTLE BODY TUBING

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

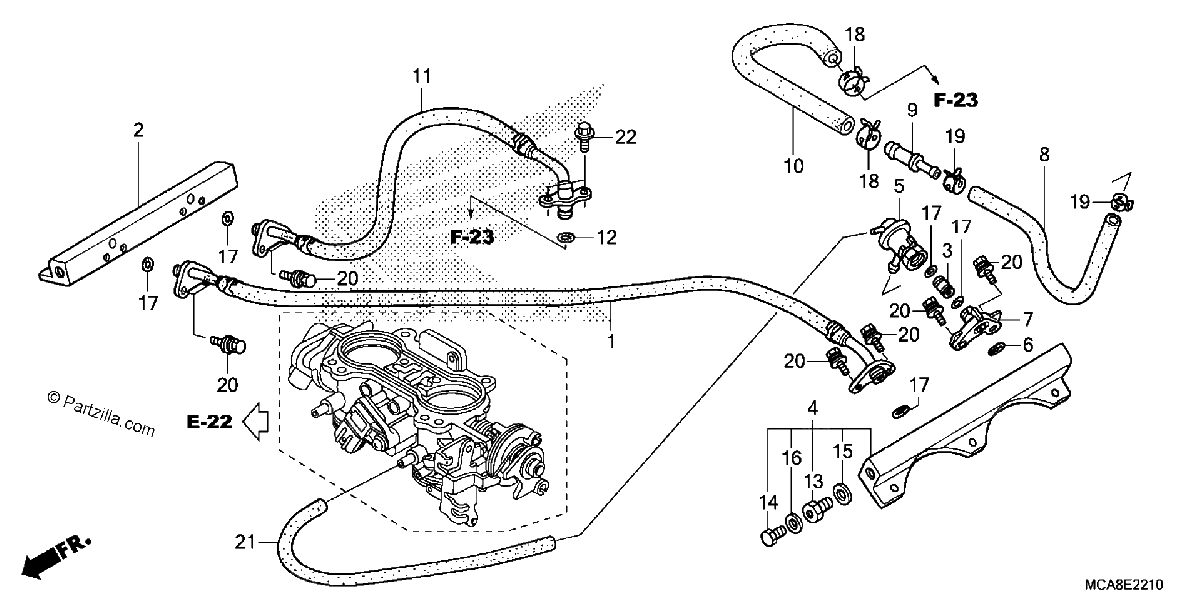

Diagrama de THROTTLE BODY TUBING

Repuestos

#1
16527-MCA-A61
HOSE, FUEL FEED
$117.86¢58 932
1
#2
16610-MCA-780
PIPE, R. FUEL
$128.74¢64 371
1
#3
16614-MCA-000
JOINT, STRAIGHT
$5.36¢2 680
1
#4
16620-MCA-780
PIPE, L. FUEL
$476.55¢238 274
1
#5
16740-MCA-003
REGULATOR ASSY., PRESSURE
$81.27¢40 635
1
#6
16741-PG7-005
O-RING, PRESSURE REGULATOR
$3.89¢1 943
1
#7
16745-MCA-000
STAY, PRESSURE REGULATOR
$20.44¢10 218
1
#8
17525-MCA-003
HOSE, FUEL RETURN
$55.94¢27 968
1
#9
17526-MCA-000
JOINT, FUEL RETURN
$8.64¢4 318
1
#10
17527-MCA-A60
HOSE A, FUEL RETURN
$14.59¢7 297
1
#11
17528-MCA-A61
HOSE, FUEL FEED
$242.14¢121 072
1
#12
17530-MCA-000
O-RING (7.52X3.53)
$5.86¢2 932
1
#13
90008-MCA-000
BOLT, BANJO (12MM)
$11.85¢5 923
1
#14
90009-PP4-E01
BOLT, SEALING (6MM)
$7.30¢3 651
1
#15
90428-PD6-003
WASHER, SEALING (12MM)
$5.80¢2 898
1
#16
90430-PD6-003
WASHER, SEALING (6MM)
$4.46¢2 231
1
#17
91302-MCA-000
O-RING (7.8X1.9)
$2.71¢1 357
1
#18
91405-PD1-004
CLAMP, TUBE (D12)
$9.66¢4 830
1
#19
91406-SL4-931
CLAMP, FUEL HOSE (D10.5)
$5.44¢2 720
1
#20
93403-06016-00
BOLT-WASHER (6X16)
$1.92¢960
1
#20
93413-06016-00
BOLT-WASHER (6X16)
$1.92¢960
1
#21
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$10.42¢5 210
1
#22
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
