SHIFT DRUM SHIFT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

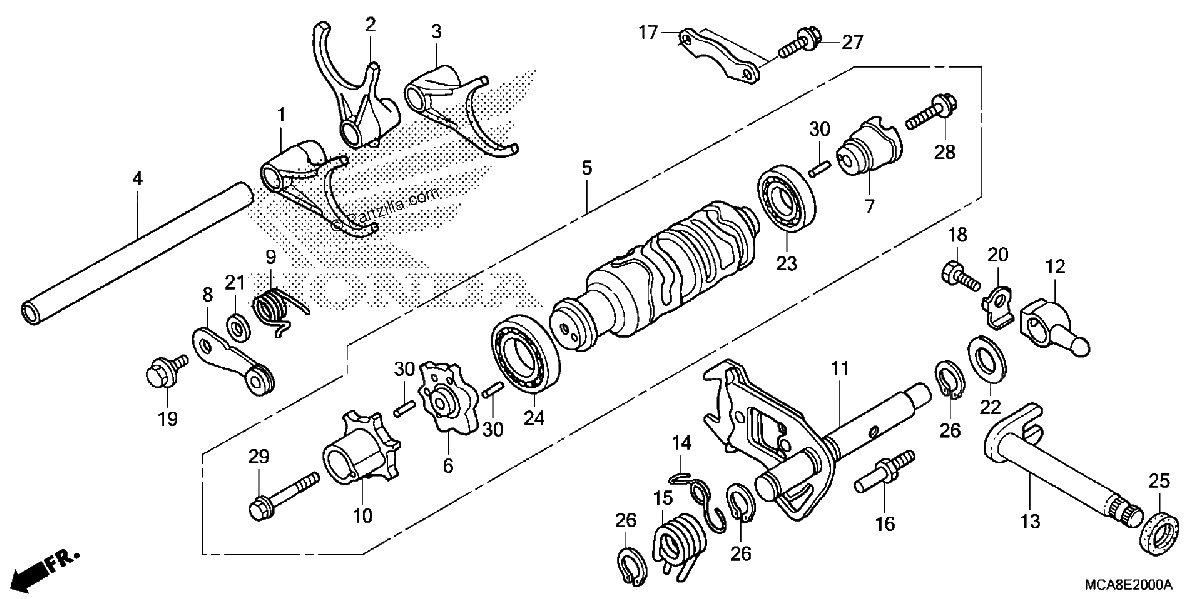

Diagrama de SHIFT DRUM SHIFT FORK

Repuestos

#1
24211-MCA-A00
FORK, FR. GEARSHIFT
$89.63¢44 813
1
#2
24212-MJG-A00
FORK, CENTER GEARSHIFT
$90.14¢45 069
1
#3
24213-MCA-000
SWINGARM, GEARSHIFT
$91.96¢45 981
1
#4
24251-MJG-A00
SHAFT, SHIFT FORK
$33.04¢16 519
1
#5
24300-MJK-A40
DRUM ASSY., GEARSHIFT
$278.04¢139 019
1
#6
24302-MCA-300
CAM, SHIFT DRUM
$55.26¢27 631
1
#7
24305-MCA-S40
CAM, GEARSHIFT DRUM LOCK
$36.79¢18 394
1
#8
24430-MCA-000
STOPPER, GEARSHIFT DRUM
$23.71¢11 856
1
#9
24435-MCA-000
SPRING, GEARSHIFT DRUM STOPPER
$3.44¢1 719
1
#10
24443-MCA-300
JOINT, GEARSHIFT DRUM
$53.56¢26 781
1
#11
24610-MCA-000
ARM, GEARSHIFT
$134.45¢67 225
1
#12
24615-MCA-000
ARM B, GEARSHIFT
$53.30¢26 650
1
#13
24620-MCA-780
SPINDLE, GEARSHIFT
$70.76¢35 381
1
#14
24624-MT3-000
SPRING, GEARSHIFT RESET
$4.53¢2 263
1
#15
24651-MCA-000
SPRING, GEARSHIFT RETURN
$12.41¢6 206
1
#16
24652-028-000
PIN, SHIFT RETURN SPRING
$12.52¢6 262
1
#17
24655-MV4-000
PLATE, GEARSHIFT DRUM BEARING SETTING
$8.73¢4 363
1
#18
90009-MN5-000
BOLT, HEX. (8X17)
$5.45¢2 725
1
#19
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$3.20¢1 600
1
#20
90406-422-000
WASHER, LOCK (8MM)
$3.55¢1 775
1
#21
90417-360-000
WASHER, DRUM STOPPER
$2.24¢1 119
1
#22
90487-MN5-000
WASHER (14.2X28X2.3)
$7.25¢3 625
1
#23
91007-MN5-003
BEARING, RADIAL BALL (6904) (NTN)
$20.39¢10 194
1
#24
91008-374-003
BEARING, BALL (16005) (NTN)
$17.44¢8 719
1
#25
91202-965-003
OIL SEAL (14X28X7) (ARAI)
$7.77¢3 887
1
#26
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#27
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#28
95701-06022-00
BOLT, FLANGE (6X22)
$2.31¢1 156
1
#29
95701-08040-00
BOLT, FLANGE (8X40)
$1.54¢769
1
#30
96220-40148
ROLLER (4X14.8)
$0.68¢338
1
