SADDLEBAGS SIDE BAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

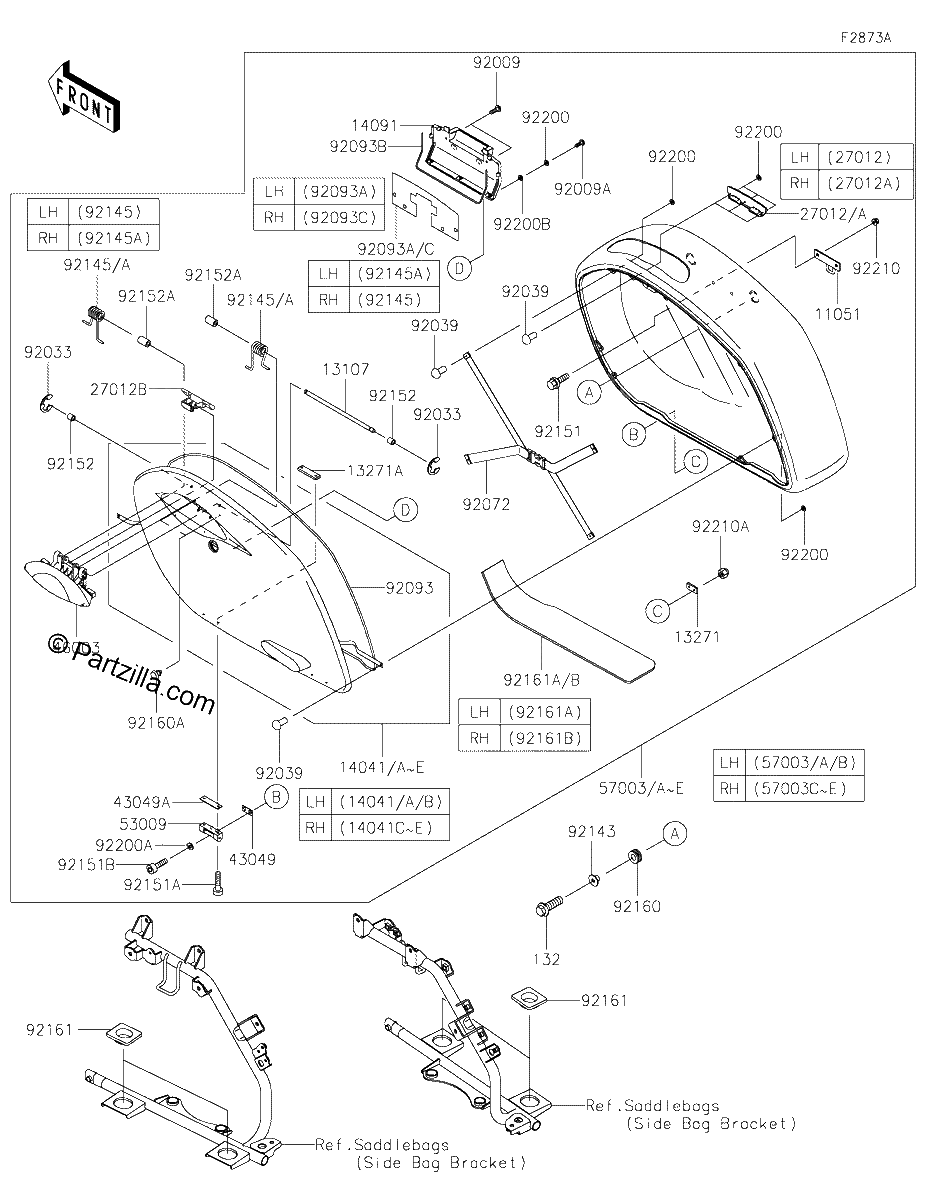

Diagrama de SADDLEBAGS SIDE BAG

Repuestos

#132
132BB0825
BOLT FLANGED SMALL,8X25
$4.10¢2 050
1
#11051
11051-1104
BRACKET,SIDE BAG BODY
$12.00¢6 000
1
#13107
13107-1403
SHAFT
$4.88¢2 438
1
#13271
13271-1146
PLATE
$4.39¢2 194
1
#13271A
13271-1147
PLATE
$9.13¢4 563
1
#14041
14041-0056-68M
COVER COMP,BAG,Left Hand,M M T BLUE
$297.14¢148 569
1
#14041
14041-0056-68P
COVER-COMP,BAG,LH,M.M.G.GRAY
$297.14¢148 569
1
#14041
14041-0056-76B
COVER COMP,BAG,Left Hand,M B G BLACK
$288.07¢144 038
1
#14041B
14041-0056-76B
COVER COMP,BAG,Left Hand,M B G BLACK
$288.07¢144 038
1
#14041
14041-0057-68M
COVER COMP,BAG,Right Hand,M M T BLUE
$311.45¢155 725
1
#14041C
14041-0057-68M
COVER COMP,BAG,Right Hand,M M T BLUE
$311.45¢155 725
1
#14041
14041-0057-68P
COVER COMP,BAG,Right Hand,M M G GRAY
$311.45¢155 725
1
#14041
14041-0057-76B
COVER COMP,BAG,Right Hand,M B G BLACK
$302.69¢151 344
1
#14041E
14041-0057-76B
COVER COMP,BAG,Right Hand,M B G BLACK
$302.69¢151 344
1
#14091
14091-1069
COVER,LID MAINTENANCE
$21.13¢10 563
1
#27012
27012-1571
HOOK,LOCK PLATE,LH
$14.63¢7 313
1
#27012A
27012-1572
HOOK,LOCK PLATE,RH
$16.43¢8 213
1
#27012
27012-1572
HOOK,LOCK PLATE,RH
$16.43¢8 213
1
#27012B
27012-1575
HOOK,HANDLE
$21.39¢10 694
1
#43049
43049-1084
PACKING
$2.36¢1 181
1
#43049A
43049-1086
PACKING
$2.26¢1 131
1
#46003
46003-1505
HANDLE,SIDE BAG
$239.76¢119 881
1
#53009
53009-1104
HINGE,SIDE BAG
$28.39¢14 194
1
#57003E
57003-0061-76B
BAG Assembly,Right Hand,M B G BLACK
$1369.63¢684 813
1
#57003
57003-0061-76B
BAG Assembly,Right Hand,M B G BLACK
$1369.63¢684 813
1
#57003
57003-0060-68M
BAG Assembly,Left Hand,M M T BLUE
$1422.41¢711 206
1
#57003
57003-0060-68P
BAG Assembly,Left Hand,M M G GRAY
$1422.41¢711 206
1
#57003B
57003-0060-76B
BAG Assembly,Left Hand,M B G BLACK
$1369.63¢684 813
1
#57003
57003-0060-76B
BAG Assembly,Left Hand,M B G BLACK
$1369.63¢684 813
1
#57003C
57003-0061-68M
BAG Assembly,Right Hand,M M T BLUE
$1422.41¢711 206
1
#57003
57003-0061-68M
BAG Assembly,Right Hand,M M T BLUE
$1422.41¢711 206
1
#57003
57003-0061-68P
BAG-ASSY,RH,M.M.G.GRAY
$1422.41¢711 206
1
#92009
92009-1870
SCREW,TAPPING,4X12
$1.63¢813
1
#92009A
92009-1871
SCREW,TAPPING,3X8
$1.56¢781
1
#92033
92033-1300
RING-SNAP
$1.63¢813
1
#92039
92039-1236
RIVET
$2.29¢1 144
1
#92072
92072-1368
BAND
$59.79¢29 894
1
#92093
92093-1486
SEAL,SIDE BAG COVER
$13.67¢6 837
1
#92093A
92093-1487
SEAL,SIDE BAG,LH
$6.32¢3 162
1
#92093B
92093-1488
SEAL
$3.69¢1 844
1
#92093C
92093-1489
SEAL,SIDE BAG,RH
$6.32¢3 162
1
#92093A
92093-1489
SEAL,SIDE BAG,RH
$6.32¢3 162
1
#92143
92143-1450
COLLAR
$9.83¢4 913
1
#92145
92145-1175
SPRING
$9.06¢4 531
1
#92145A
92145-1200
SPRING
$9.06¢4 531
1
#92145
92145-1200
SPRING
$9.06¢4 531
1
#92151
92151-1435
BOLT,FLANGED,6X16
$2.34¢1 169
1
#92151A
92151-1436
BOLT,SOCKET,4X22
$2.38¢1 188
1
#92151B
92151-1437
BOLT,SOCKET,4X18
$2.38¢1 188
1
#92152
92152-1121
COLLAR
$3.90¢1 950
1
#92152A
92152-1122
COLLAR
$3.71¢1 856
1
#92160
92160-1012
DAMPER
$5.45¢2 725
1
#92160A
92160-1976
DAMPER
$2.38¢1 188
1
#92161
92161-0895
DAMPER
$8.88¢4 438
1
#92161A
92161-1171
DAMPER,SIDE BAG,LH
$45.38¢22 688
1
#92161A
92161-1176
DAMPER,SIDE BAG,RH
$45.38¢22 688
1
#92161B
92161-1176
DAMPER,SIDE BAG,RH
$45.38¢22 688
1
#92200
92200-1442
WASHER,3MM
$1.63¢813
1
#92200A
92200-1443
WASHER,4MM
$1.63¢813
1
#92200B
92200-1444
WASHER,3MM
$1.56¢781
1
#92210
92210-1167
NUT,CAP,6MM
$2.46¢1 231
1
#92210A
92210-1168
NUT,CAP,4MM
$1.76¢881
1
