FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

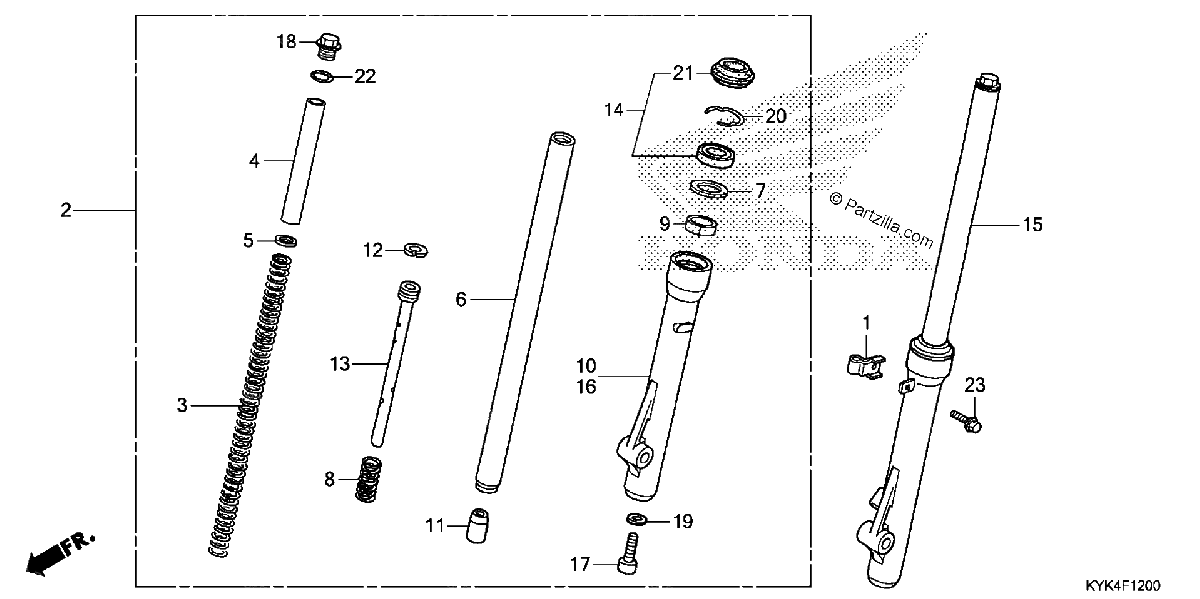

Diagrama de FRONT FORK

Repuestos

#1
45461-KYK-910
CLAMP, FR. BRAKE CABLE
$2.60¢1 300
1
#2
51400-KYK-305
FORK ASSY., R. FR. (COO)
$480.04¢240 019
1
#3
51401-KYK-911
SPRING, FR. FORK
$56.57¢28 287
1
#4
51402-KYK-911
COLLAR, SPRING
$12.50¢6 250
1
#5
51403-KYK-911
SEAT, SPRING
$5.94¢2 969
1
#6
51410-KYK-911
PIPE, FR. FORK
$98.00¢49 000
1
#7
51412-GGC-901
WASHER, OIL SEAL (CHUANNAN ABSORBER)
$6.74¢3 369
1
#8
51413-KYK-911
SPRING, REBOUND
$10.90¢5 450
1
#9
51414-GFM-J11
GUIDE, FR. FORK (CHUANNAN ABSORBER)
$11.15¢5 575
1
#10
51420-KYK-911
CASE, R. (LOWER)
$150.86¢75 431
1
#11
51432-KRF-H71
PIECE, OIL LOCK (CHUANNAN ABSORBER)
$13.30¢6 650
1
#12
51437-KRF-H71
RING, PISTON (CHUANNAN ABSORBER)
$6.30¢3 150
1
#13
51440-KYK-911
PIPE, SEAT
$41.60¢20 800
1
#14
51490-KYK-911
SEAL SET, FR. FORK
$19.94¢9 969
1
#15
51500-KYK-305
FORK ASSY., L. FR. (COO)
$480.10¢240 050
1
#16
51520-KYK-911
CASE, L. (LOWER)
$96.45¢48 225
1
#17
90116-KRF-H71
BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)
$4.45¢2 225
1
#18
90123-GFM-J11
BOLT, FR. FORK
$38.98¢19 488
1
#19
90544-KRF-H71
WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)
$2.52¢1 263
1
#20
90651-KRF-H71
RING, OIL SEAL STOPPER (CHUANNAN ABSORBER)
$1.31¢656
1
#21
91254-KRH-901
DUST SEAL
$11.76¢5 881
1
#22
91351-KRF-H71
O-RING (22X2.8) (CHUANNAN ABSORBER)
$3.65¢1 825
1
#23
95701-06016-08
BOLT, FLANGE (6X16)
$1.77¢888
1
