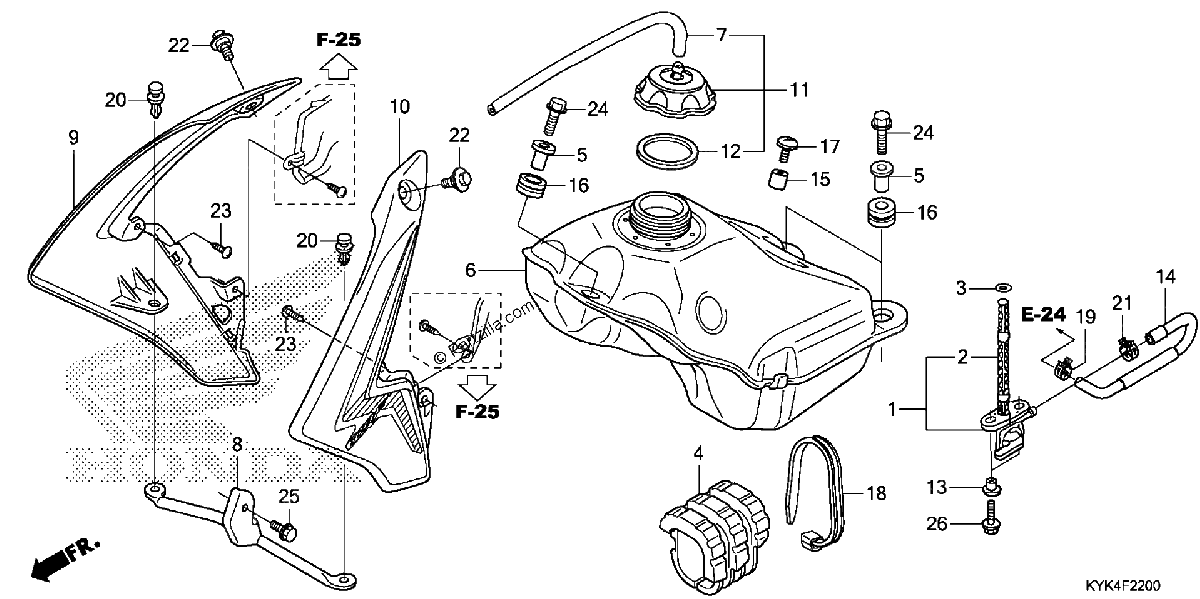

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PETCOCK ASSY.
$72.44¢36 219
#2
SCREEN SET, FUEL STRAINER
$26.19¢13 094
#3
O-RING (11.8X3.55)
$2.85¢1 425
#4
RUBBER, TANK SETTING
$49.39¢24 694
#5
COLLAR, TANK MOUNT
$6.57¢3 287
#6
TANK, FUEL
$454.13¢227 063
#7
TUBE, FUEL CAP BREATHER
$8.45¢4 225
#8
STAY, SHROUD
$147.36¢73 681
#9
SHROUD SET A, R. TANK (TYPE1) (WL)
$91.31¢45 656
#10
SHROUD SET A, L. TANK (TYPE1) (WL)
$91.29¢45 644
#11
CAP ASSY., FUEL TANK
$36.51¢18 256
#12
GASKET, FUEL CAP
$5.56¢2 781
#13
COLLAR, FUEL TANK SETTING
$5.79¢2 894
#14
TUBE, FUEL
$21.50¢10 750
#15
COLLAR, SEAT MOUNT
$4.17¢2 088
#16
CUSHION, RR. FENDER
$3.69¢1 844
#17
SCREW, SPECIAL (6X17)
$3.65¢1 825
#18
BAND, WIRE HARNESS
$31.72¢15 862
#19
CLAMP, TUBE (8.0)
$1.86¢931
#20
CLIP, SPLASH GUARD
$0.76¢381
#21
CLAMP, TUBE (8.5)
$1.86¢931
#22
BOLT, SPECIAL (6MM)
$3.65¢1 825
#23
SCREW, TAPPING (4X10)
$1.16¢581
#24
BOLT, FLANGE (8X25)
$2.30¢1 150
#25
BOLT, FLANGE (6X12)
$2.31¢1 156
#26
BOLT, FLANGE (6X14)
$2.31¢1 156
