REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

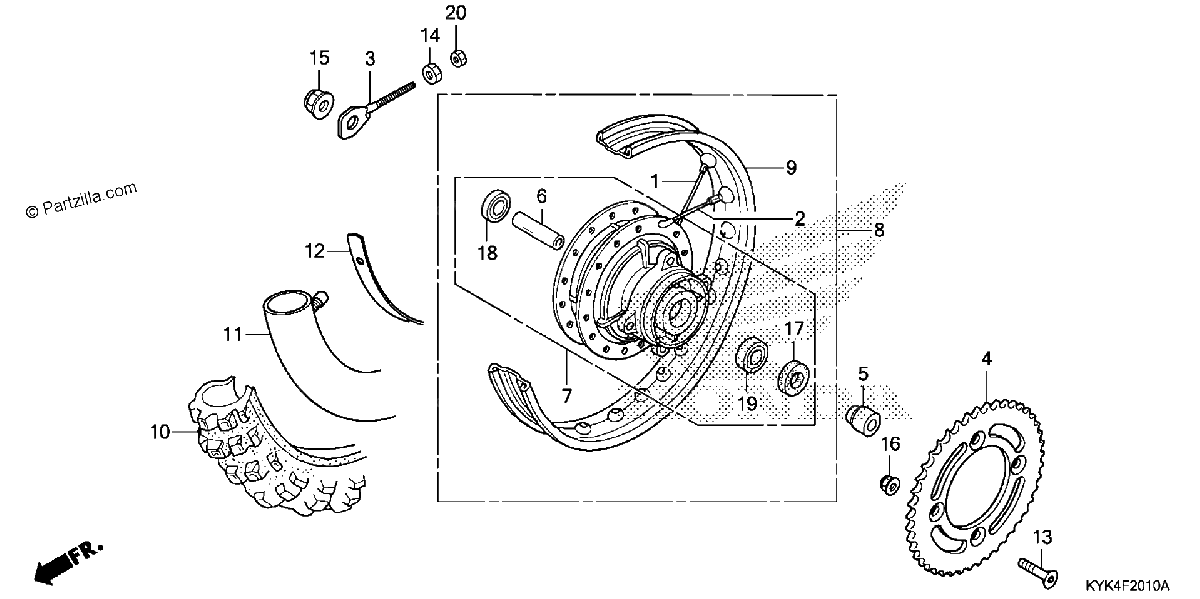

Diagrama de REAR WHEEL

Repuestos

#1
06420-KYK-910
SPOKE SET A, RR. (A11X100.5)
$4.28¢2 139
1
#2
06421-KYK-910
SPOKE SET B, RR. (A11X100)
$4.99¢2 496
1
#3
40543-KYK-910
ADJUSTER, CHAIN
$3.85¢1 926
1
#4
41201-KYK-910
SPROCKET, FINAL DRIVEN (38T)
$41.50¢20 752
1
#5
42311-KYK-910
COLLAR, RR. WHEEL SIDE
$11.01¢5 503
1
#6
42620-KYK-910
COLLAR, RR. AXLE DISTANCE
$11.15¢5 577
1
#7
42635-KYK-910
HUB SUB-ASSY., RR.
$254.40¢127 202
1
#8
42650-KYK-305
WHEEL SUB-ASSY., RR. (COO)
$465.63¢232 817
1
#9
42701-KYK-910
RIM, RR. WHEEL (1.60X12)
$63.89¢31 947
1
#10
42711-KYK-911
TIRE, RR. (80/100-12 50J) (CST)
No Disponible
1
#11
42712-KYK-911
TUBE, TIRE (CST)
$13.51¢6 756
1
#12
42713-KYK-911
FLAP, TIRE
$6.57¢3 283
1
#13
90125-KA4-000
SCREW, FLAT (8X31)
$3.44¢1 719
1
#14
90302-KBP-900
NUT, SPECIAL (6MM)
$2.42¢1 208
1
#15
90306-KYA-601
NUT, FLANGE (12MM) (PT)
$3.36¢1 679
1
#16
90309-428-731
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$3.74¢1 869
1
#16
90309-KF0-003
NUT, FLANGE (8MM)
$3.74¢1 869
1
#17
90755-GC4-003
DUST SEAL (21X37X5.5) (ARAI)
$5.63¢2 818
1
#17
90755-GC4-005
DUST SEAL (21X37X5.5) (NOK)
$5.63¢2 818
1
#18
91051-KYK-911
BEARING, RADIAL BALL (6201UU)
$13.80¢6 900
1
#19
91052-KYK-911
BEARING, RADIAL BALL (6301UU)
$13.82¢6 911
1
#20
94001-06080-0S
NUT, HEX. (6MM)
$1.47¢736
1
