RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

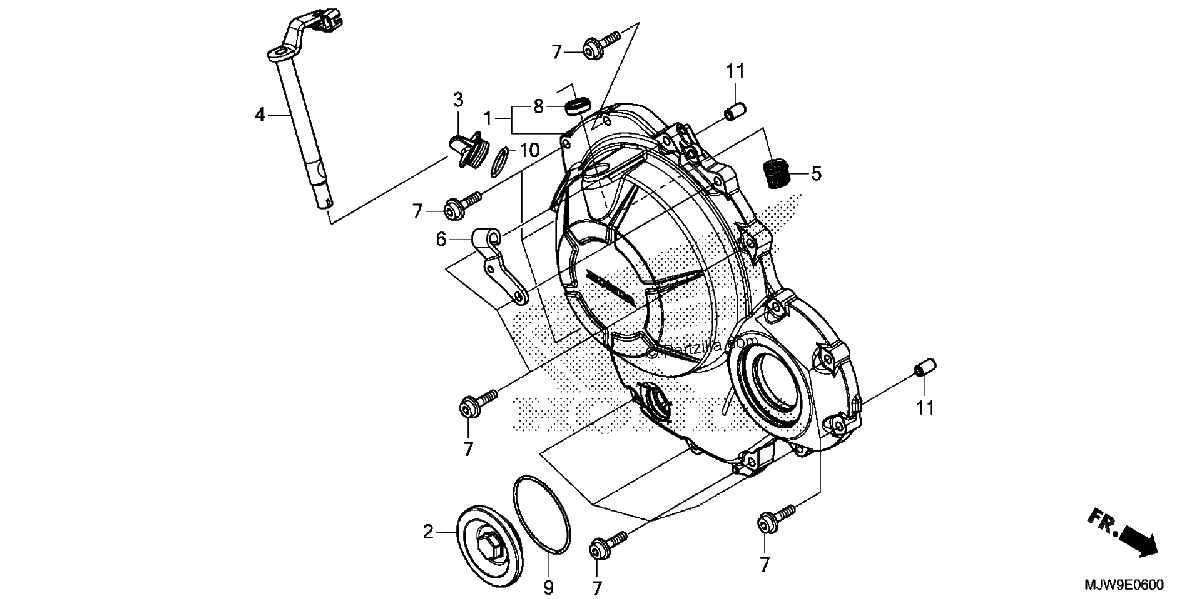

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#1
11330-MJW-J00
COVER, Right CRANKCASE
$99.89¢49 944
1
#001
11330-MJW-J00
COVER, Right CRANKCASE
$99.89¢49 944
1
#2
11332-MJW-J00
CAP (45MM)
$16.77¢8 388
1
#002
11332-MJW-J00
CAP (45MM)
$16.77¢8 388
1
#3
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#003
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#4
22810-MGZ-J00
LEVER, CLUTCH
$41.50¢20 750
1
#004
22810-MGZ-J00
LEVER, CLUTCH
$41.50¢20 750
1
#5
22815-413-000
SPRING, CLUTCH LEVER
$3.74¢1 869
1
#005
22815-413-000
SPRING, CLUTCH LEVER
$3.74¢1 869
1
#006
22821-MGZ-J00
RECEIVER, CLUTCH CABLE
$14.04¢7 019
1
#6
22821-MGZ-J00
RECEIVER, CLUTCH CABLE
$14.04¢7 019
1
#7
90003-MGZ-J00
BOLT, FLANGE SOCKET (6X28)
$0.84¢419
1
#007
90003-MGZ-J00
BOLT, FLANGE SOCKET (6X28)
$0.84¢419
1
#008
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#8
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#9
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#009
91301-ML7-003
O-RING (48.1X3.6) (ARAI)
$4.76¢2 381
1
#010
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#10
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#011
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#11
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
