TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

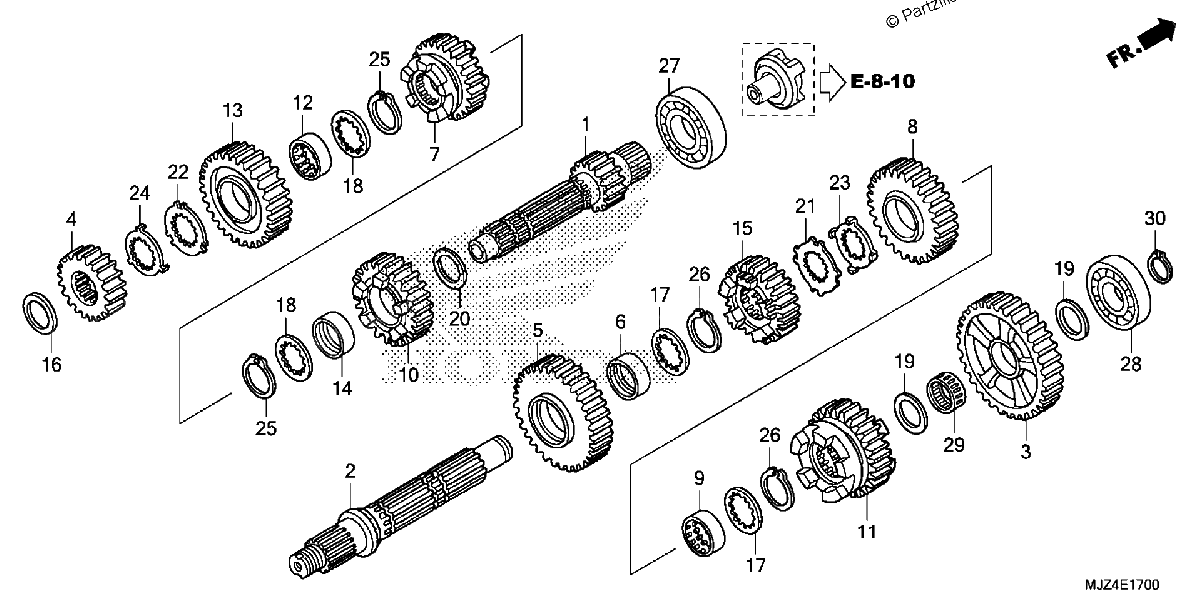

Diagrama de TRANSMISSION

Repuestos

#1
23211-MCS-000
MAINSHAFT (14T)
$208.30¢104 150
1
#2
23220-MCS-010
COUNTERSHAFT
$195.88¢97 938
1
#3
23421-MCS-000
GEAR, COUNTERSHAFT FIRST (36T)
$147.63¢73 813
1
#4
23431-MCS-000
GEAR, MAINSHAFT SECOND (18T)
$72.21¢36 106
1
#5
23441-MCS-000
GEAR, COUNTERSHAFT SECOND (31T)
$144.69¢72 344
1
#6
23442-MS2-610
COLLAR (30X11.2)
$30.55¢15 275
1
#7
23451-MCS-000
GEAR, MAINSHAFT THIRD (21T)
$146.13¢73 063
1
#8
23461-MCS-000
GEAR, COUNTERSHAFT THIRD (27T)
$135.57¢67 788
1
#9
23462-MAT-000
COLLAR, SPLINE (30X11)
$29.61¢14 806
1
#10
23471-MCS-000
GEAR, MAINSHAFT FOURTH (24T)
$132.25¢66 125
1
#11
23481-MCS-000
GEAR, COUNTERSHAFT FOURTH (25T)
$153.26¢76 631
1
#12
23482-MR7-000
COLLAR, SPLINE (28X13.5)
$39.81¢19 906
1
#13
23491-MCS-000
GEAR, MAINSHAFT FIFTH (29T)
$138.49¢69 244
1
#14
23495-MM5-000
COLLAR (28X13)
$29.61¢14 806
1
#15
23501-MCS-000
GEAR, COUNTERSHAFT FIFTH (25T)
$146.13¢73 063
1
#16
90451-MCS-000
WASHER, SPECIAL (22MM)
$2.38¢1 188
1
#17
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#18
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
1
#19
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.90¢2 950
1
#20
90458-729-920
WASHER, THRUST (28MM)
$6.89¢3 444
1
#21
90463-MAT-000
WASHER, SPLINE (30MM)
$5.88¢2 938
1
#22
90463-MR7-000
WASHER, SPLINE (28MM)
$13.61¢6 806
1
#23
90464-MAT-000
WASHER, LOCK (30MM)
$8.65¢4 325
1
#24
90464-MR7-000
WASHER, LOCK (28MM)
$13.61¢6 806
1
#25
90603-MN4-000
CIRCLIP (28MM)
$4.54¢2 269
1
#26
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#27
91002-MCS-003
BEARING, RADIAL BALL (31X65X16)
$32.54¢16 269
1
#28
91003-MCS-003
BEARING, SPECIAL RADIAL BALL (63/22)
$33.14¢16 569
1
#29
91026-MB4-003
BEARING, NEEDLE (22X26X11)
$18.65¢9 325
1
#30
94510-22000
CIRCLIP (OUTER) (22MM)
$0.96¢481
1
