RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

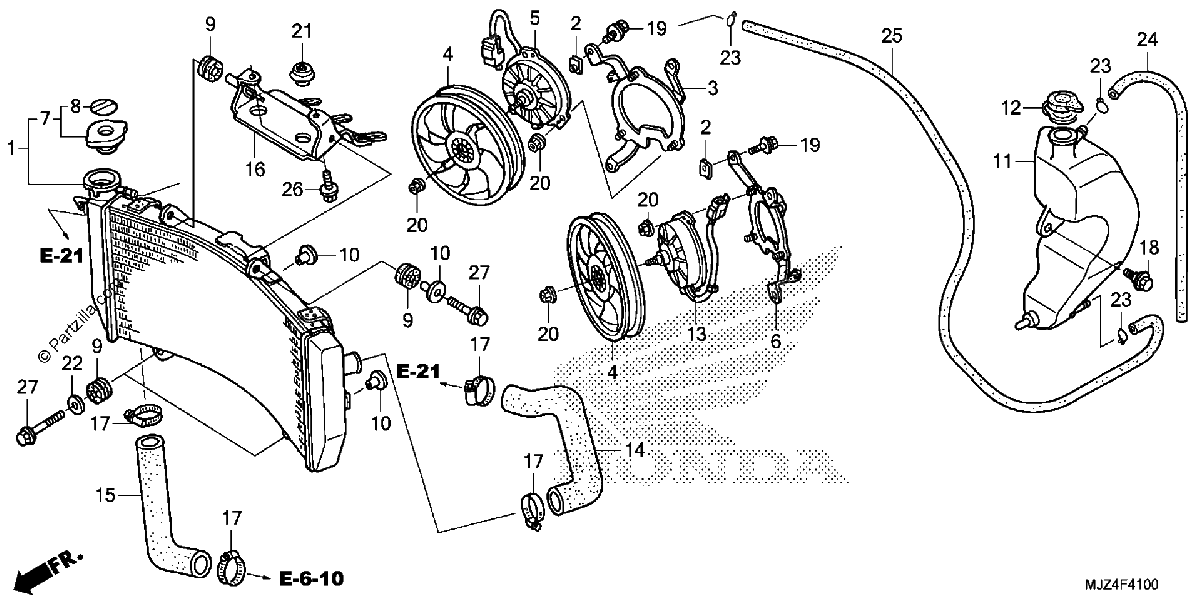

Diagrama de RADIATOR

Repuestos

#1
19010-MCS-305
RADIATOR (COO)
$852.28¢426 138
1
#1
19010-MCS-G01
RADIATOR
$852.28¢426 138
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#3
19015-MCS-305
SHROUD, R. (COO)
$84.06¢42 032
1
#3
19015-MCS-G01
SHROUD, R.
$84.06¢42 032
1
#4
19020-MEA-671
FAN, COOLING
$46.47¢23 236
1
#5
19030-MCS-D91
MOTOR ASSY., R. FAN
$341.49¢170 746
1
#6
19035-MCS-761
SHROUD, L.
$94.12¢47 058
1
#7
19037-GEE-710
CAP, RADIATOR
$32.35¢16 175
1
#8
19046-PAA-A00
LABEL, RADIATOR CAP
$3.36¢1 679
1
#9
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$3.69¢1 846
1
#10
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$2.94¢1 472
1
#11
19101-MCS-305
TANK, RESERVE (COO)
$41.68¢20 838
1
#11
19101-MCS-G00
TANK, RESERVE
$41.68¢20 838
1
#12
19109-KPC-640
CAP, RESERVE TANK
$5.36¢2 680
1
#13
19130-MCS-D91
MOTOR ASSY., L. FAN
$360.50¢180 251
1
#14
19501-MCS-G00
HOSE, RADIATOR (UPPER)
$23.20¢11 598
1
#15
19502-MCS-G00
HOSE, RADIATOR (LOWER)
$19.25¢9 625
1
#16
19515-MCS-G00
STAY, RADIATOR (UPPER)
$32.03¢16 014
1
#17
19516-GAG-003
CLAMP, HOSE (30-37MM)
$14.86¢7 429
1
#18
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#19
90120-GHB-611
BOLT-WASHER (6X14)
$3.16¢1 581
1
#20
90315-MK3-003
NUT, SERRATE (5MM)
$2.75¢1 374
1
#21
90861-SA5-003
PLUG, HOLE (20MM)
$9.61¢4 807
1
#22
94103-06700
WASHER, PLAIN (6MM)
$0.85¢426
1
#23
95002-02100
CLIP, TUBE (B10)
$2.24¢1 121
1
#24
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#25
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$36.70¢18 348
1
#26
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#27
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
