CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

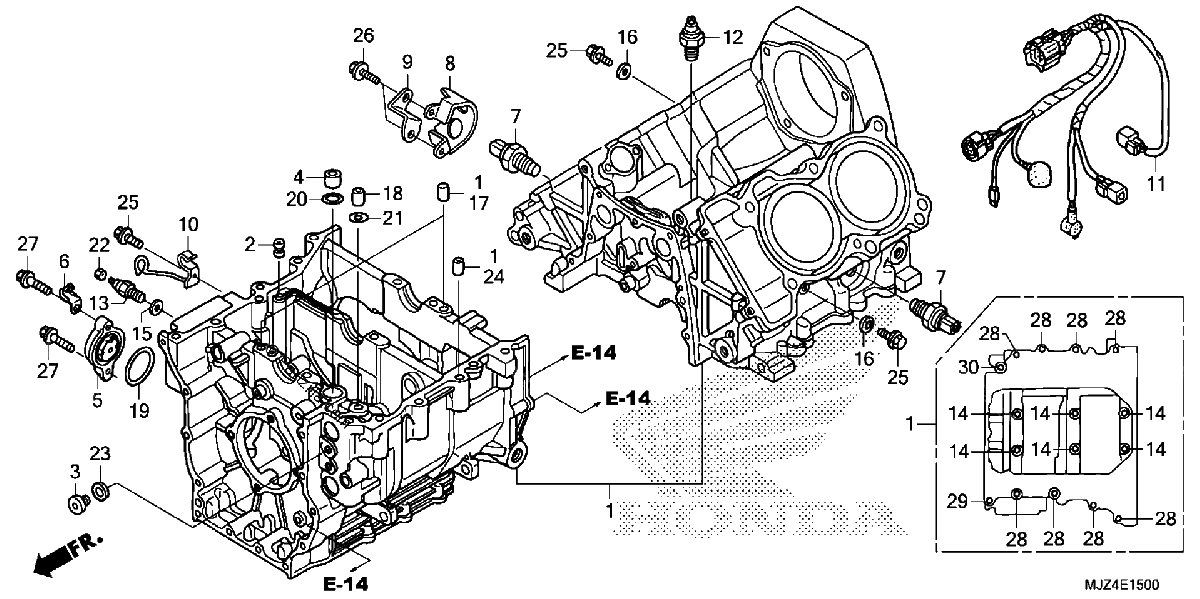

Diagrama de CRANKCASE

Repuestos

#1
11000-MCS-D81
CRANKCASE SET
$3830.38¢1 915 188
1
#2
11205-MCS-000
ORIFICE A (1.6MM)
$4.51¢2 256
1
#3
12206-MBW-000
BOLT, SEALING (14MM)
$7.75¢3 875
1
#4
15326-KBV-000
COLLAR (16X18X10)
$5.71¢2 856
1
#5
15660-MCS-000
FINDER, OIL LEVEL
$36.63¢18 313
1
#6
16106-KW7-900
CLIP B, TUBE
$3.95¢1 975
1
#7
30530-MCS-004
SENSOR ASSY., KNOCK
$165.94¢82 969
1
#8
30533-MCS-010
GUARD, SENSOR
$13.20¢6 600
1
#9
30534-MCS-000
PLATE, SENSOR GUARD
$5.65¢2 825
1
#10
30535-MCS-000
GUIDE, KNOCK SENSOR WIRE
$15.90¢7 950
1
#11
32109-MCS-700
SUB-WIRE, ENGINE
$84.19¢42 094
1
#12
35500-MJ4-024
SWITCH Assembly., OIL PRESSURE (DENSO)
$49.28¢24 638
1
#13
35600-MK4-860
SWITCH ASSY., NEUTRAL
$21.92¢10 962
1
#14
90001-MCS-000
BOLT, FLANGE (10X87)
$6.74¢3 369
1
#15
90443-MJ6-000
WASHER, NEUTRAL
$2.48¢1 238
1
#16
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#17
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#18
90702-MJ4-000
PIN, DOWEL (10X10)
$4.20¢2 100
1
#19
91301-679-003
O-RING (45X2.5) (ARAI)
$6.35¢3 175
1
#20
91302-KE8-003
O-RING (18X3) (ARAI)
$3.36¢1 681
1
#21
91305-422-000
O-RING (9.8X2.4)
$3.34¢1 669
1
#22
94050-04000
NUT, FLANGE (4MM)
$1.57¢788
1
#23
94109-14000
WASHER, DRAIN PLUG (14MM)
$0.80¢400
1
#24
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#25
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#26
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#27
95701-06025-00
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#28
95701-08060-00
BOLT, FLANGE (8X60)
$1.95¢975
1
#29
95701-08080-00
BOLT, FLANGE (8X80)
$2.21¢1 106
1
#30
95701-08120-00
BOLT, FLANGE (8X120)
$3.65¢1 825
1
